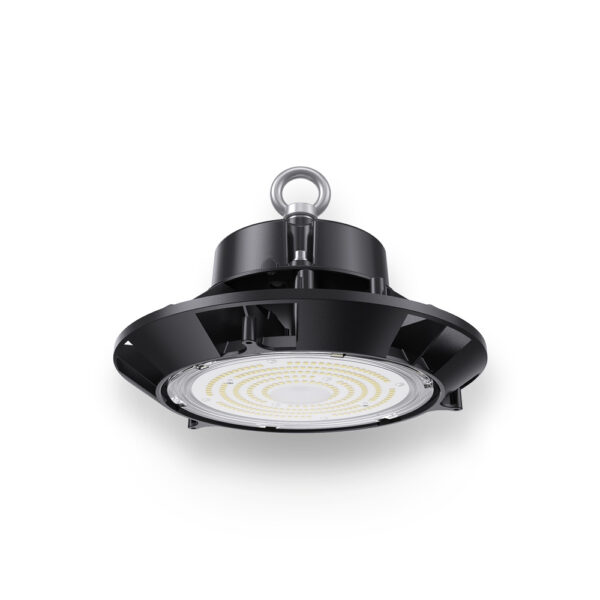

200W Highbay LED Light | 170lm/W Efficiency | IP65 & IK08 Rated | 5000K Color | by Ektor
The 200W Highbay LED Light delivers exceptional performance with a remarkable 170lm/W efficiency, making it perfect for industrial and commercial applications. With an IP65 rating for dust and water resistance and an IK08 impact resistance, this light is built to last in demanding environments. Its 5000K color temperature ensures bright, clear illumination, ideal for warehouses, sports halls, and large retail spaces.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 200W LED Highbay Light, Industrial Highbay LED, Suspended LED Highbay, High Efficiency LED Highbay, 5000K LED Highbay
Technical Specifications
- Total System Efficiency: 170 lm/W
- Input Voltage: 230Vac (216-253Vac range)
- Input Frequency: 50 Hz
- Maximum Wattage: 200 W
- Input Current: 2 A
- Inrush Current: 100 A
- Surge Protection: 4kV L-N and 4kV L/N-PE
- Earth Leakage Current: 0.75 mA
- Colour Temperature: 5000 K
- Colour Rendering Index (CRI): >80
- Macadam Steps: 5-step MacAdam Ellipse
- Beam Angle: 120°
- LED Lifetime: >60,000 hours (L90B10 at 25°C: 48,000 hrs)
- Driver Type: 1-10V dimmable
- Flex & Plug Length: 1500 mm
- Wiring Type: Re-wireable Flex & Plug (3 pin)
- Operating Temperature Range: -30 to 50 °C
- IP Rating: IP65
- IK Rating: IK08
- Body Material: Aluminium alloy
- Diffuser Material: Clear plastic
- Dimensions (H x L x W): 150mm x 300mm x 300mm
- Weight: 5 kg
Key Features
- High system efficiency of 170 lm/W
- IP65 rated for dust and water resistance
- IK08 impact resistance rating
- Aluminium alloy body with clear plastic diffuser
- 1-10V dimmable driver
- 120° beam angle for wide light distribution
- Colour Rendering Index (CRI) greater than 80
- Long LED lifetime greater than 60,000 hours
- Surge protection of 4kV L-N and L/N-PE
- Operating temperature range from -30°C to 50°C
- Low earth leakage current of 0.75 mA
- Short Term Light Modulation (PstLM) of 0.012 and Stroboscopic Visibility Measure (SVM) of 0.001
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical standards and safety regulations.
Applications
- Industrial warehouses and factories
- Commercial high ceiling areas
- Sports halls and gymnasiums
- Large retail spaces
- Suspended lighting installations
Standards & Compliance
- AS/NZS 60598.1
- AS/NZS 60598.2.1
- AS/NZS 61347.1
- AS/NZS 61347.2.13
- AS CISPR 15
Environmental Benefits
- High energy efficiency reduces electricity consumption and carbon footprint
- Long LED lifetime minimizes waste and replacement frequency
- Low flicker and stroboscopic effects improve visual comfort and reduce health risks
Warranty Information
Standard 5 years return-to-base warranty with an option for VIP warranty providing 2 years onsite and 3 years return-to-base, valid for registered users and specific regions. Warranty covers up to 15,000 operating hours.
Available Now
The Ektor Hover Core 200W Highbay LED light is available for immediate purchase, ideal for industrial, commercial, and large indoor spaces requiring efficient suspended lighting.
