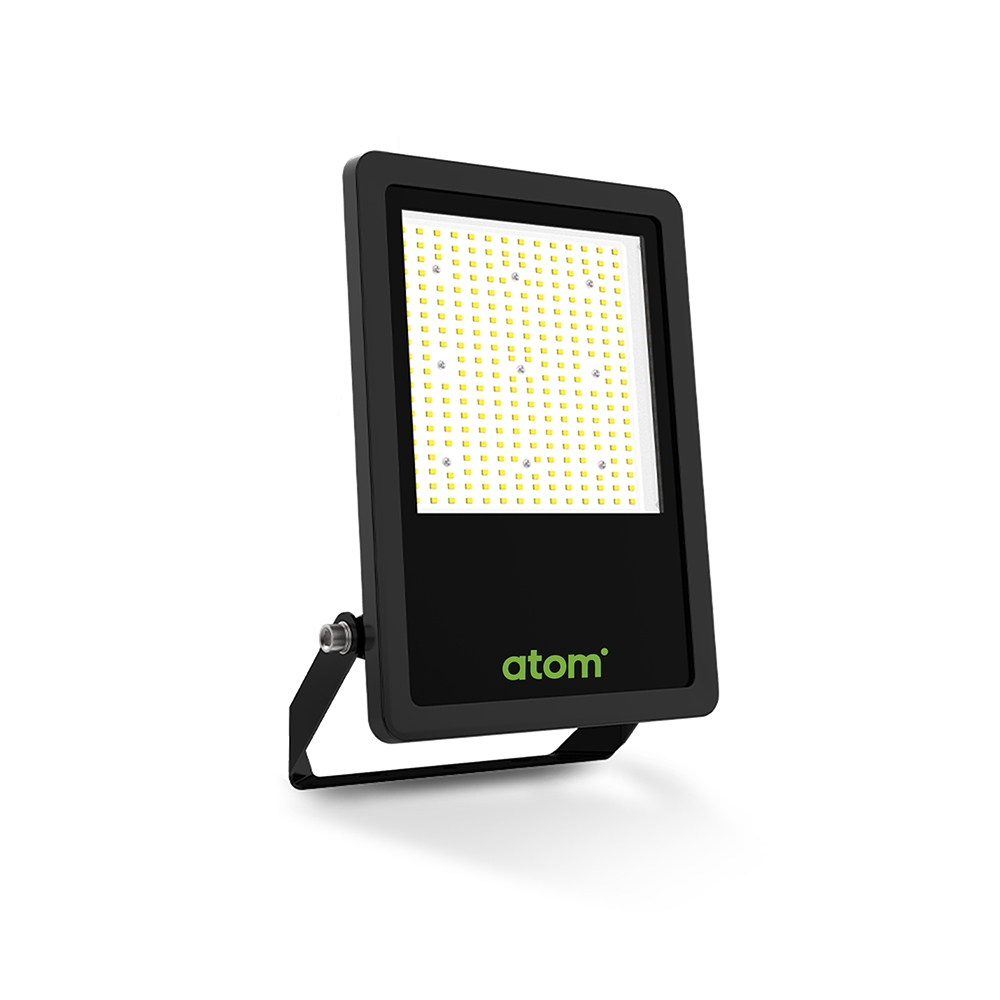

200W LED Floodlight | 5000K Color Temperature | IP66 Rated | Adjustable Fitting | by atom
The 200W LED Floodlight is designed for outdoor lighting, featuring a bright 5000K color temperature and an impressive total system efficiency of 160 lm/W. With an IP66 rating for dust and water resistance, this floodlight is perfect for commercial, industrial, and security applications, ensuring reliable performance in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 200 Watt LED Flood Light, Outdoor LED Floodlight 200W, Atom Zenix LED Floodlight, 5000K LED Floodlight
Technical Specifications
- Total System Efficiency: 160 lm/W
- IP Rating: IP66
- IK Rating: IK08
- Adjustability: Adjustable fitting
- Body Material: Aluminium
- Diffuser Material: Glass
- Installation Type: Surface mount
- Working Temperature Range: 0 to 45 °C
- Input Frequency: 50 Hz
- Switch Type: Inline
- Power Factor: 0.95
- Inrush Current: 80 A
- Inrush Duration: 200uS (50%)
- Maximum Wattage: 200 W
- Input Voltage: 230Vac (216Vac - 253Vac range)
- Surge Protection L-N and L/N-PE: 6kV
- Colour Rendering Index (CRI): >80
- LED Type: Diffused
- CCT Configuration: Single
- Macadam Steps (SDCM): 5-step MacAdam Ellipse
- Beam Angle: 110°
- LED Lifetime: 60000 hrs (L70 B10)
- TM-21 Test Hours: 10000 hrs
- Colour Temperature: 5000 K (Daylight)
- Driver Type: Fixed output
- Driver Included: Yes
- Integrated Driver: No
- Dimmable: No
- Flex & Plug or Lead Length: 1500 mm
- Wiring Type: Flying leads (3 wire)
- Driver Mode: Constant Current
- Driver Current: 900 mA
- Dimensions (H x L x W): 250mm x 300mm x 350mm
- Weight: 5 kg
Key Features
- High total system efficiency of 160 lm/W
- IP66 rated for dust and water resistance
- IK08 impact resistance rating
- Adjustable fitting for directional lighting
- Powdercoated black aluminium body with glass diffuser
- Operating temperature range from 0 to 45 °C
- High power factor of 0.95
- Surge protection of 6kV for L-N and L/N-PE
- Fixed output driver included, non-dimmable
- LED lifetime of 60,000 hours (L70 B10 rating)
- Beam angle of 110° with >80 CRI
- 1500 mm flying leads wiring
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical safety standards and optimal performance.
Applications
- Outdoor lighting for commercial and industrial areas
- Security lighting
- Architectural and landscape lighting
- Sports facilities and large outdoor spaces
Standards & Compliance
- AS/NZS 60598.1 – Luminaires General Requirements
- AS/NZS 60598.2.5 – Floodlights
- AS/NZS 61347.1 – Lamp Control Gear General and Safety Requirements
- AS/NZS 61347.2.13 – Particular Requirements for LED Modules
- AS CISPR 15 – Limits and Methods of Measurement of Radio Disturbance Characteristics of Electrical Lighting and Similar Equipment
Environmental Benefits
- High system efficiency reduces energy consumption
- Long LED lifetime minimizes waste and replacement frequency
- Surge protection enhances product longevity and reduces electronic waste
Warranty Information
Standard warranty is 3 years return-to-base. VIP warranty offers 2 years onsite plus 3 years return-to-base (total 5 years) for registered users in defined regions.
Available Now
The Zenix 200W LED Floodlight by atom is available for immediate purchase, ideal for commercial, industrial, and outdoor lighting applications.
