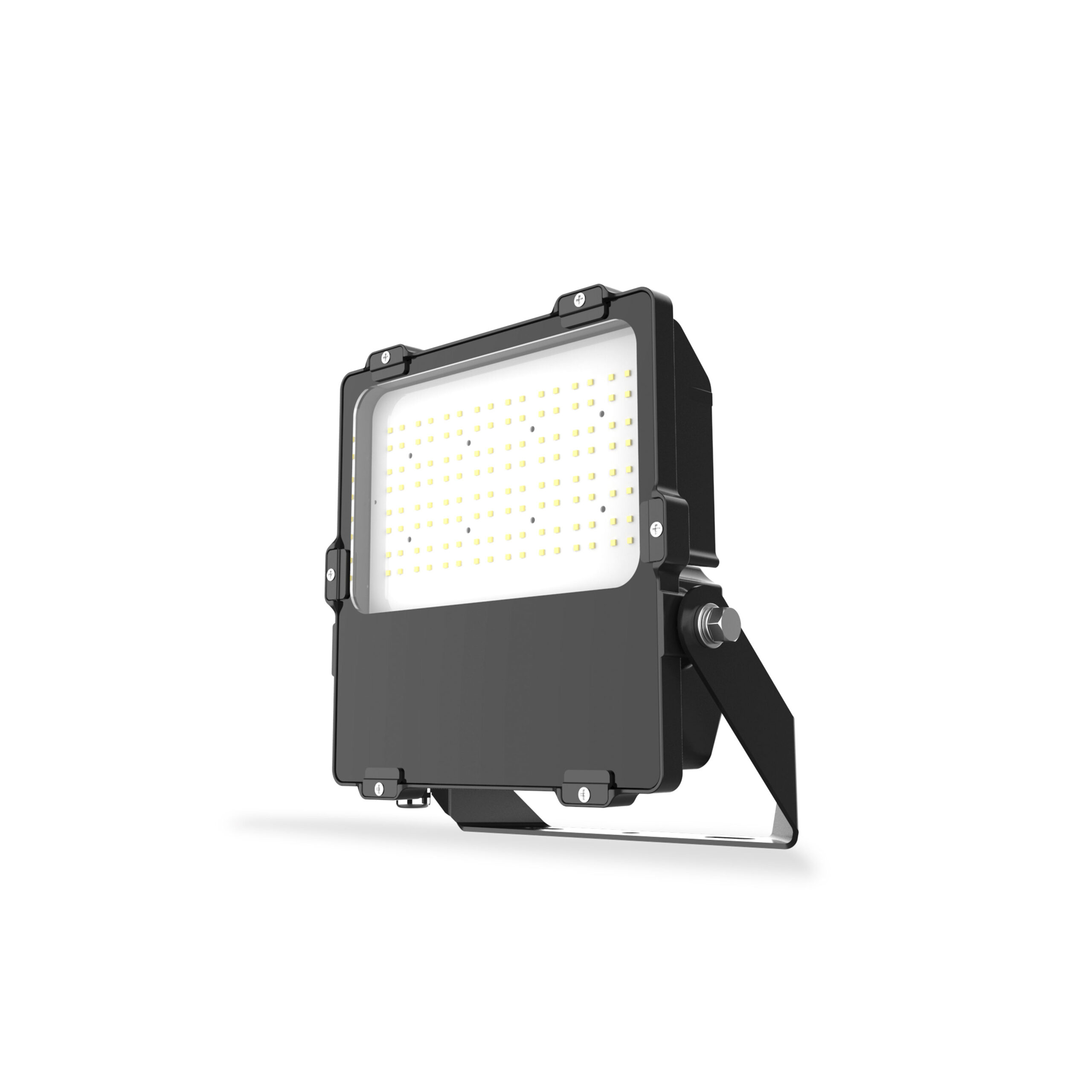

200W LED IP66 Floodlight Ser III | 5000K Daylight | 148 lm/W Efficiency | Adjustable Fitting | by atom
The 200W LED IP66 Floodlight Ser III is designed for outdoor lighting, providing a powerful 5000K daylight output with an impressive efficiency of 148 lm/W. Ideal for commercial and industrial applications, this floodlight features an adjustable fitting for directional lighting and is built to withstand harsh environments with its IP66 rating.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 200 Watt LED Flood Light, IP66 Outdoor LED Floodlight, High Power LED Floodlight, Daylight LED Floodlight 5000K
Technical Specifications
- Total System Efficiency: 148 lm/W
- IP Rating: IP66
- IK Rating: IK08
- Adjustability: Adjustable fitting
- Body Material: Aluminium with powdercoated finish
- Diffuser Material: Glass
- Installation Type: Surface mount
- Working Temperature Range: -30 to 45 °C
- Input Frequency: 50 Hz
- Switch Type: Inline
- Power Factor: 0.94
- Inrush Current: 100 A
- Inrush Duration: 200 µS (50%)
- Maximum Wattage: 200 W
- Input Voltage: 230Vac (216Vac - 253Vac range)
- Surge Protection L-N and L/N-PE: 4kV
- Earth Leakage: 0.75 mA
- Colour Rendering Index (CRI): >70
- LED Type: Diffused
- CCT Configuration: Single, 5000 K daylight
- Macadam Steps: 5-step MacAdam Ellipse
- Beam Angle: 120°
- LED Lifetime: 54,000 hours (L70 B10 rating)
- TM-21 Test Hours: 9000 hours
- Driver Type: Fixed output, constant current
- Driver Included: Yes
- Integrated Driver: No
- Dimmable: No
- Flex & Plug or Lead Length: 1500 mm
- Wiring Type: Flying leads (3 wire)
- Dimensions (H x L x W): 250mm x 350mm x 300mm
- Weight: 6 kg
Key Features
- High total system efficiency of 148 lm/W
- IP66 rated for dust and water ingress protection
- IK08 impact resistance rating
- Adjustable fitting for directional lighting
- Powdercoated black aluminium body with glass diffuser
- Operating temperature range from -30 to 45 °C
- High power factor of 0.94
- Surge protection of 4kV L-N and L/N-PE
- Colour rendering index (CRI) greater than 70
- 120° beam angle with diffused LED type
- Long LED lifetime of 54,000 hours (L70 B10 rating)
- Fixed output driver with constant current mode
- 1500 mm flying leads wiring
- Not dimmable
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical safety standards and optimal performance.
Applications
- Outdoor lighting for commercial and industrial areas
- Security lighting
- Sports grounds and recreational facilities
- Building facades and architectural lighting
- Warehouses and loading docks
Standards & Compliance
- AS/NZS 60598.1 – Luminaires General Requirements
- AS/NZS 60598.2.5 – Floodlights
- AS/NZS 61347.1 – Lamp Control Gear General and Safety Requirements
- AS/NZS 61347.2.13 – Particular Requirements for LED Modules
- AS CISPR 15 – Limits and Methods of Measurement of Radio Disturbance Characteristics of Electrical Lighting and Similar Equipment
Environmental Benefits
- High energy efficiency reduces electricity consumption and carbon footprint
- Long LED lifetime minimizes waste and replacement frequency
- Surge protection enhances product longevity, reducing electronic waste
Warranty Information
Standard warranty is 3 years return-to-base. VIP warranty offers 2 years onsite plus 3 years return-to-base (total 5 years) for registered users in defined regions.
Available Now
The Atom 200W LED IP66 Floodlight Ser III - 5000K is available for immediate purchase, ideal for outdoor commercial, industrial, and security lighting applications.
