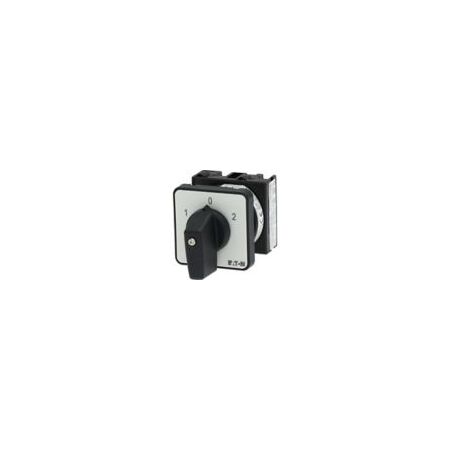

20A Changeover Switch | Flush Mount Design | High Mechanical Lifespan | IP65 Rated by Eaton
20A changeover switch with a flush mount design and high mechanical lifespan—ideal for branch circuits and motor disconnect applications. Built for industrial and commercial use, it features a rated impulse withstand voltage of 6000 V AC and operates in temperatures from -25 °C to 50 °C.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 20A Changeover Switch | Flush Mount Design | High Mechanical Lifespan | IP65 Rated by Eaton
Brand: Eaton
SKU: Y7-12742
Alternatively Known As: Eaton T0 Changeover Switch, Eaton Moeller T0 Switch, 20A Changeover Switch, Flush Mount Changeover Switch
Technical Specifications
- Rated operational current (Ie): 20 A at AC-3, 230 V star-delta
- Rated breaking capacity: 100 A at 220/230 V, 110 A at 400/415 V
- Rated impulse withstand voltage (Uimp): 6000 V AC
- Safe isolation: 440 V AC between contacts according to EN 61140
- Operating frequency: 1200 operations per hour
- Overvoltage category: III
- Pollution degree: 3
- Switching angle: 60°
- Number of poles: 1
- Degree of protection: NEMA 1, NEMA 12, IP65
- Mechanical lifespan: 400,000 operations
- Terminal capacity: 1 x (0.75 - 2.5) mm² flexible with ferrule
- Tightening torque: 1 Nm for screw terminals
- Ambient operating temperature: -25 °C to 50 °C
- Shock resistance: 15 g mechanical per IEC/EN 60068-2-27
- Dimensions (H x L x W): 48mm x 76mm x 48mm
- Weight: 0.083 kg
Key Features
- 20 A rated operational current at AC-3
- Flush mounting design
- Maintained actuator with 0 (Off) position
- 60° switching angle
- 1 contact unit with 2 contacts
- High mechanical lifespan of 400,000 operations
- Degree of protection: NEMA 1, NEMA 12, IP65
- Rated impulse withstand voltage of 6000 V AC
- Safe isolation of 440 V AC between contacts
- Shock resistance of 15 g mechanical
- Suitable for use in branch circuits and motor disconnect
- Operating temperature range from -25 °C to 50 °C
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical standards and safety.
Applications
- Branch circuits
- Motor disconnect applications
- Front mounting in electrical panels
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- High mechanical lifespan supports sustainable long-term use
Warranty Information
Warranty details are provided by Eaton and typically cover manufacturing defects; please refer to Eaton's official warranty policy.
Available Now
The Eaton Moeller® series T0 Changeover Switch 20A Flush Mounting is available now for immediate purchase. Ideal for industrial and commercial electrical control applications.
