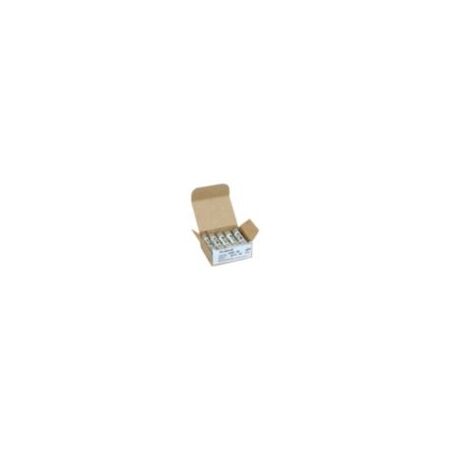

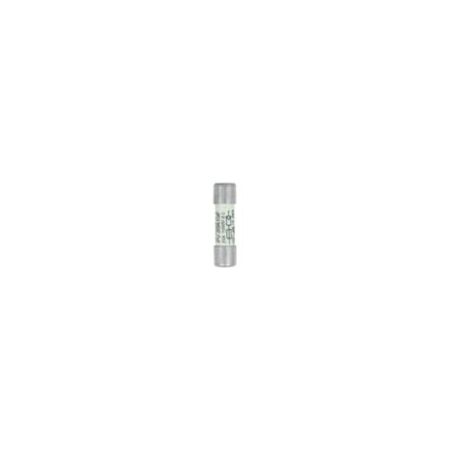

20AMP 1000V DC Solar Ferrule Fuse | 50 kAIC Interrupt Rating | Ceramic Material | White by Eaton
20AMP 1000V DC solar ferrule fuse designed for photovoltaic systems, featuring a high interrupt rating of 50 kAIC and a durable ceramic construction. Ideal for solar panel circuit protection, it ensures safety and compliance in renewable energy installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 20AMP 1000V DC Solar Ferrule Fuse | 50 kAIC Interrupt Rating | Ceramic Material | White by Eaton
Brand: Eaton
SKU: PV-20A10F
Alternatively Known As: Photovoltaic fuse, Solar PV fuse 20A, 1000V DC solar fuse, PV fuse 10x38mm, Solar panel fuse
Technical Specifications
- Amperage Rating: 20 A
- Voltage Rating: 1000 Vdc
- Interrupt Rating: 50 kAIC
- Fuse Type: PV-A10F ceramic fuse
- Watt Losses: 2.1 W
- Time Constant: 1-3 ms
- Material: Ceramic
- Color: White
- Suitable for CHPV Modular fuse holder HPV-DV Inline holder
- Dimensions (H x L x W): 10mm x 38mm x 10mm
- Weight: 0.01 kg
Key Features
- Rated for 20A current and 1000 Vdc voltage
- High interrupt rating of 50 kAIC for safety
- Non-indicating ceramic fuse type PV-A10F
- Complies with IEC 60269-6 type A, Class gPV standards
- Time constant between 1-3 ms for fast response
- Ferrule end to ferrule end design for easy installation
Professional Installation Requirements
- Installation should be performed by a qualified electrician experienced with photovoltaic systems to ensure safety and compliance.
Applications
- Photovoltaic solar power systems
- Solar panel circuit protection
- Renewable energy installations
Standards & Compliance
- Complies with AS/NZS 5033 – Installation of Photovoltaic (Solar) Systems
Environmental Benefits
- Supports renewable energy systems by protecting solar power circuits
- RoHS compliant, reducing hazardous substances in manufacturing
Warranty Information
Standard Eaton warranty applies; typically 1 year against manufacturing defects.
Available Now
The Eaton 20AMP 1000V DC Solar Ferrule 10 x 38mm fuse is available for immediate purchase, ideal for solar photovoltaic system protection.
