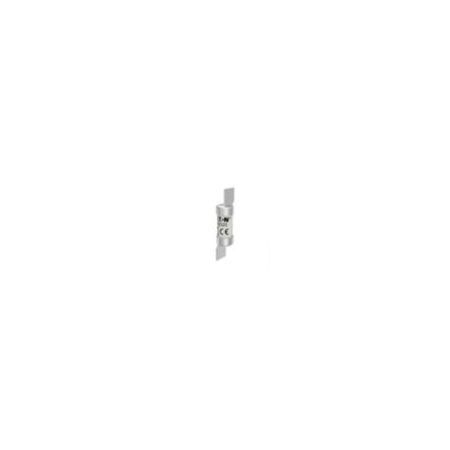

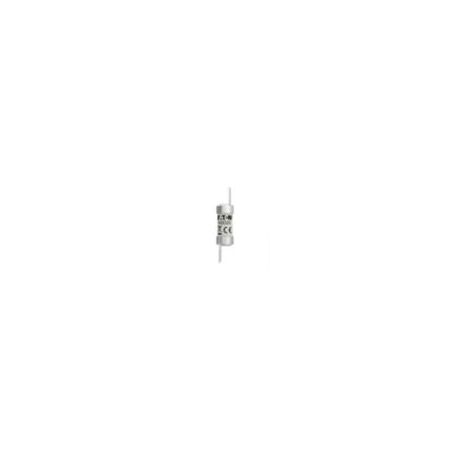

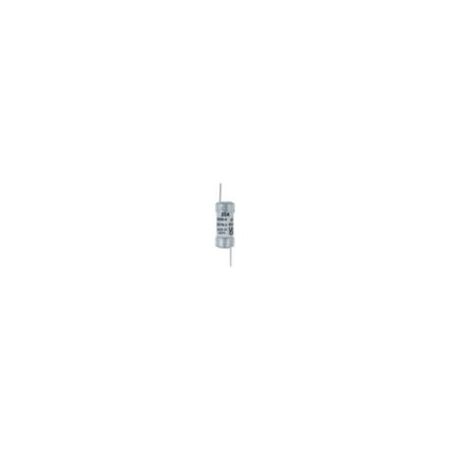

20AMP 550V AC BS88 Fuse | 80 kA Breaking Capacity | gG/gL Class | Offset Bladed Tags by Eaton
20AMP 550V AC BS88 fuse with an 80 kA breaking capacity and gG/gL class for general purpose protection—ideal for low voltage electrical circuits. Built for industrial and commercial installations, featuring offset bladed tags for secure fitting.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 20AMP 550V AC BS88 Fuse | 80 kA Breaking Capacity | gG/gL Class | Offset Bladed Tags by Eaton
Brand: Eaton
SKU: NSD20
Alternatively Known As: 20A BS88 Fuse, 550V AC Fuse, NSD20 Fuse, British Standard Fuse, Low Voltage Fuse
Technical Specifications
- Amperage Rating: 20 A
- Voltage Rating: 550 V AC
- Breaking Capacity: 80 kA
- Fuse Class: gG/gL
- Fuse Type: NSD
- Construction Standard: BS88/F1
- Dimensions: 14 x 59 mm (approx. 13.8 x 58.5 mm)
- Fitted with offset bladed tags
- Suitable for 32NNS Safeloc and SC32 Safeclip fuse holders
- Dimensions (H x L x W): 13.8mm x 58.5mm x 13.8mm
- Weight: 0.0162 kg
Key Features
- 20 Ampere current rating
- 550 Volt AC voltage rating
- Breaking capacity of 80 kA
- Class gG/gL fuse type for general purpose protection
- Offset bladed tags for secure fitting
- Complies with BS88/F1 construction standard
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with safety standards and proper fuse selection.
Applications
- Electrical protection in low voltage circuits
- Industrial and commercial electrical installations
- Use with 32NNS Safeloc and SC32 Safeclip fuse holders
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- RoHS compliant ensuring reduced hazardous substances
- Durable design reduces waste through long service life
Warranty Information
Standard manufacturer warranty applies. Please refer to Eaton warranty policy for details.
Available Now
The Eaton 20AMP 550V AC BS88 Fuse is available for immediate purchase, ideal for electrical protection in industrial and commercial low voltage applications.
