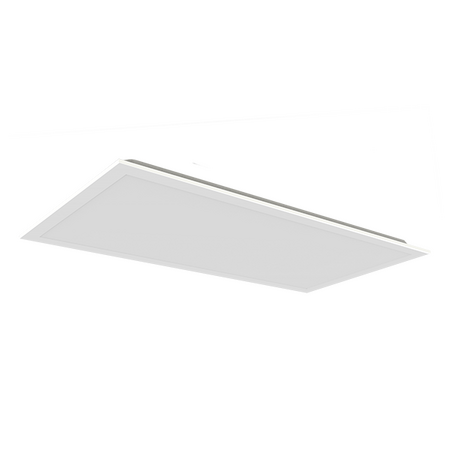

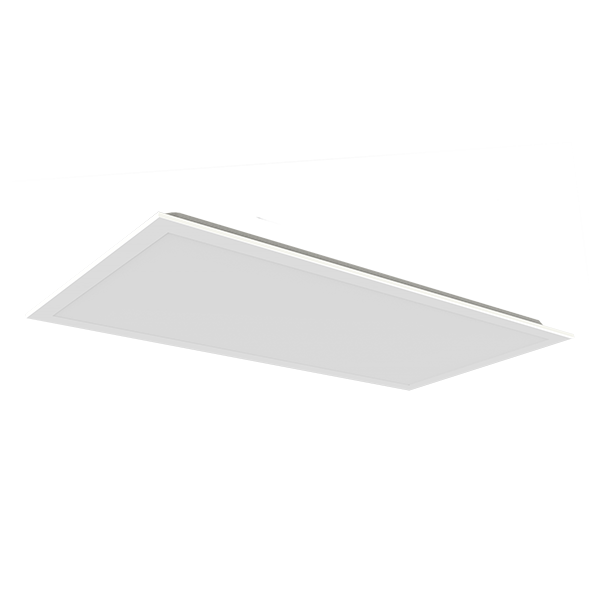

20W LED Backlit Panel | 100 lm/W Efficiency | IP40 Rated | Daylight | by atom
The 20W LED Backlit Panel is designed for efficient indoor lighting, offering a remarkable 100 lm/W efficiency and an IP40 rating for durability. Ideal for commercial and office environments, this recessed panel light provides bright, daylight illumination while ensuring low glare with a UGR of less than 19. With a long LED lifetime of over 60,000 hours, it’s a sustainable choice for modern lighting needs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: LED Panel Light 300x600, LED Backlit Ceiling Panel, Recessed LED Panel, Daylight LED Panel Light
Technical Specifications
- Total system efficiency up to 100 lm/W
- IP40 rated, suitable for indoor environments
- IC-4 rating for insulation contact safety
- Operating temperature range -10 to 40 °C
- Input voltage 230Vac with ±10% tolerance
- Power factor 0.9
- Colour temperature 5700K (Daylight)
- CRI > 80
- Beam angle 90°
- UGR < 19 for low glare
- LED voltage 36 V
- LED current 450 mA for 20W model
- LED lifetime > 60,000 hours (TM-21 report)
- Non-dimmable fixed output driver included
- Wiring with 900 mm re-wireable flex and plug
- Dimensions (H x L x W): 10mm x 600mm x 300mm
- Weight: 2.5 kg
Key Features
- High system efficiency up to 100 lm/W
- IP40 rated for indoor use
- IC-4 rated for safe insulation coverage
- Fixed installation with recessed mounting
- Powder-coated steel body with polycarbonate diffuser
- Colour Rendering Index (CRI) greater than 80
- Low glare with UGR less than 19
- 3-step MacAdam ellipse for consistent colour quality
- Long LED lifetime over 60,000 hours
- Non-dimmable fixed output driver included
- Energy savings scheme approved (Ipart, REES, VEU)
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper recessed mounting.
Applications
- Commercial and office lighting
- Retail and hospitality environments
- Educational and healthcare facilities
- General indoor ambient lighting
Standards & Compliance
- AS/NZS 60598.1 – Luminaires General Requirements
- AS/NZS 60598.2.2 – Luminaires Recessed Luminaires
- AS/NZS 61347.1 – Lamp Control Gear General and Safety Requirements
- AS/NZS 61347.2.13 – Particular Requirements for LED Modules
- AS CISPR 15 – Limits and Methods of Measurement of Radio Disturbance Characteristics
Environmental Benefits
- High energy efficiency reduces electricity consumption
- Long LED lifetime minimizes waste and replacement frequency
- Complies with energy savings schemes promoting sustainability
Warranty Information
Standard warranty of 3 years return-to-base. VIP warranty offers 2 years onsite plus 3 years return-to-base (total 5 years) for registered users in defined regions.
Available Now
The Atom 20W LED Backlit Panel 300x600 Daylight is available for immediate purchase, ideal for commercial and indoor lighting applications requiring efficient recessed panel lighting.
