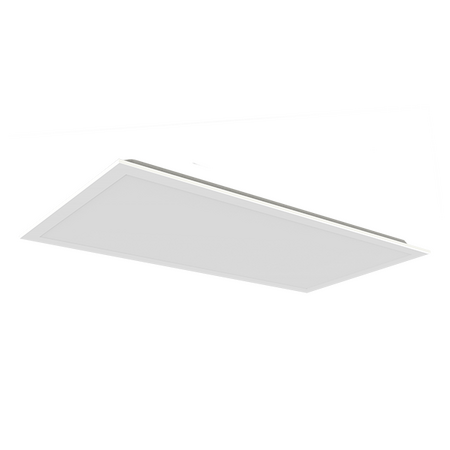

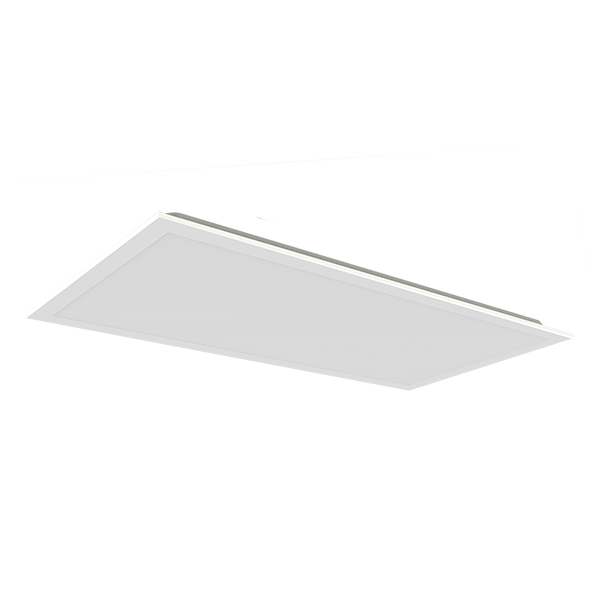

20W LED Backlit Panel | 300 x 600mm | Cool White | IP40 Rated | by atom
The 20W LED Backlit Panel is perfect for commercial and office lighting, featuring a 300 x 600mm size and a cool white color temperature. With an impressive efficiency of up to 100 lm/W and an IP40 rating, this recessed panel ensures safe and effective illumination in various indoor environments. Its durable powder-coated steel body and polycarbonate diffuser provide long-lasting performance and uniform light distribution.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: LED Panel Light 300x600, Recessed LED Panel, Cool White LED Panel, Backlit LED Panel, Office LED Panel Light
Technical Specifications
- Total System Efficiency: up to 100 lm/W
- IP Rating: IP40
- IC Rating: IC-4
- Body Material: Powder-coated steel
- Diffuser Material: Polycarbonate
- Installation Type: Recessed
- Working Temperature Range: -10 to 40 °C
- Input Frequency: 50 Hz
- Power Factor: 0.9
- Input Voltage: 230Vac (216-253Vac range)
- Colour Rendering Index (CRI): >80
- Unified Glare Rating (UGR): <19
- Beam Angle: 90°
- LED Voltage: 36 V
- LED Current: 450 mA to 1500 mA depending on model
- LED Lifetime: >60,000 hours (TM-21 report)
- Driver Type: Fixed output, non-dimmable
- Flex & Plug Length: 900 mm
- Wiring Type: Re-wireable flex & plug (2 pin)
- Product Design Life: 10 years at 12 hours daily use
- Dimensions (H x L x W): 10mm x 600mm x 300mm
- Weight: 2.5 kg
Key Features
- High system efficiency up to 100 lm/W
- IP40 rated with IC-4 rating for safe insulation coverage
- Fixed installation type with powder-coated white steel body
- Polycarbonate diffuser for uniform light distribution
- Colour Rendering Index (CRI) greater than 80
- Low glare with UGR less than 19
- 3-step MacAdam ellipse for consistent colour quality
- Long LED lifetime greater than 60,000 hours
- Non-dimmable fixed output driver included
- Energy savings scheme approved (Ipart, REES, VEU)
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical safety standards and optimal performance.
Applications
- Commercial and office lighting
- Retail and hospitality environments
- Educational and healthcare facilities
- General indoor lighting requiring recessed installation
Standards & Compliance
- AS/NZS 60598.1 – Luminaires General Requirements
- AS/NZS 60598.2.2 – Luminaires Particular Requirements
- AS/NZS 61347.1 – Lamp Control Gear General Requirements
- AS/NZS 61347.2.13 – LED Control Gear
- AS CISPR 15 – Limits and Methods of Measurement of Radio Disturbance
Environmental Benefits
- High energy efficiency reduces electricity consumption
- Long LED lifetime minimizes waste and replacement frequency
- Complies with energy savings schemes promoting sustainability
Warranty Information
Standard warranty is 3 years return-to-base. VIP warranty offers 2 years onsite plus 3 years return-to-base (total 5 years) for registered users in defined regions.
Available Now
The Atom 20W LED Backlit Panel 300x600mm Cool White is available for immediate purchase, ideal for commercial, office, and indoor recessed lighting applications.
