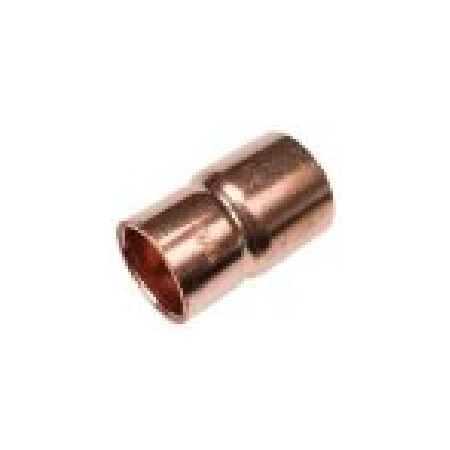

21/8 Coupling with Stop XHP | ANS C19400 Copper Alloy | 130 Bar Pressure Rating | TüV Certified | by Aspen Pumps
The 21/8 Coupling with Stop XHP is designed for high-pressure refrigeration systems, made from ANS C19400 copper iron alloy for exceptional corrosion resistance. Certified to TüV standards, it supports R744 refrigerant at pressures up to 130 bar and temperatures up to 150°C, making it ideal for HVAC and industrial applications. Ensure reliable performance with traditional brazed joining and magnetic identification.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 21/8 Coupling with Stop XHP | ANS C19400 Copper Alloy | 130 Bar Pressure Rating | TüV Certified | by Aspen Pumps
Brand: Aspen Pumps
SKU: 121-129270-218
Alternatively Known As: High Pressure Copper Coupling, Refrigeration Coupler with Stop, CuFe2p Coupling
Technical Specifications
- Material: ANS C19400 Copper Iron Alloy (CuFe2p)
- Pressure Rating: 130 bar
- Temperature Rating: Up to 150°C
- Compliance: ASTM B 280, AS5149.2
- Certification: TüV certified
- Joining Method: Traditional brazed joining with magnetic identification
- Dimensions (H x L x W): 30mm x 50mm x 30mm
- Weight: 0.2 kg
Key Features
- Made from ANS C19400 Copper Iron Alloy for high corrosion resistance
- Certified to TüV for quality assurance
- Suitable for use with R744 refrigerant at 130 bar and 150°C
- Traditional brazed joining method with magnetic identification
- Compliant with ASTM B 280 and AS5149.2 standards
Professional Installation Requirements
- Installation should be performed by a qualified technician experienced in brazed copper fittings and high pressure refrigeration systems.
Applications
- Refrigeration systems using R744 (CO2) refrigerant
- High pressure hydraulic and industrial piping systems
- HVAC systems requiring high corrosion resistance fittings
Standards & Compliance
- AS/NZS 5149.2 – Refrigerating systems and heat pumps – Safety and environmental requirements
Environmental Benefits
- Durable copper iron alloy reduces need for frequent replacements, minimizing waste
- Supports environmentally friendly R744 refrigerant systems
Warranty Information
Backed by Aspen Pumps standard warranty against manufacturing defects.
Available Now
The Aspen Pumps 21/8 Coupling with Stop XHP is available for immediate purchase, ideal for high pressure refrigeration and HVAC applications.
