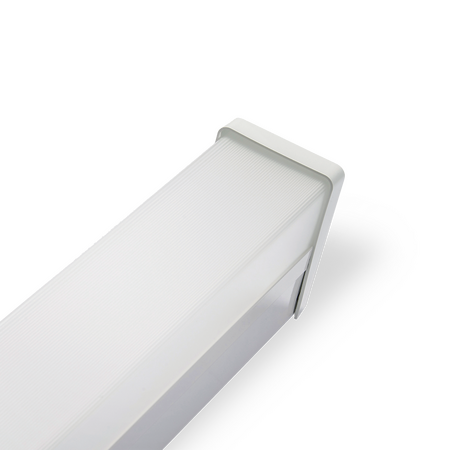

21W Single 1200mm Narrow Body Diffused LED Batten | 107 lm/W Efficiency | IP20 Rated | Cool White 4000K | by atom

BRAND: Atom
SKU: AT9842/CW/O
$75.40 List price: $91.30
Free pick up (over 25 kg or over 1 meter)
Contact us for delivery cost
The 21W Single 1200mm Narrow Body Diffused LED Batten is designed for efficient indoor lighting, boasting a remarkable 107 lm/W efficiency and a cool white 4000K color temperature. Ideal for both commercial and residential applications, this surface-mounted fixture features a durable powdercoated steel body and a polycarbonate diffuser, ensuring long-lasting performance and wide light distribution.

Alternatively Known As: LED Batten Light, LED Strip Light, Surface Mounted LED Light, Narrow Body LED Batten

Technical Specifications
  • Power: 21W
  • Input Voltage: 230Vac (216-253Vac range)
  • Frequency: 50 Hz
  • Colour Temperature: 4000K Cool White
  • CRI: >80
  • Beam Angle: 120°
  • IP Rating: IP20
  • Driver Type: Fixed output, constant current
  • Dimmable: No
  • Working Temperature Range: -20 to 40 °C
  • Wiring: Re-wireable terminal block (3 pin)
  • Installation: Surface mount
  • Body Material: Powdercoated steel
  • Diffuser Material: Polycarbonate
  • Dimensions (H x L x W): 60mm x 1200mm x 50mm
  • Weight: 1.5 kg
Key Features
  • Total system efficiency of 107 lm/W
  • Fixed output driver included
  • IP20 rated for indoor use
  • Powdercoated white steel body with polycarbonate diffuser
  • Cool white 4000K colour temperature with >80 CRI
  • 120° beam angle for wide light distribution
  • Surface mount installation with inline switch
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended to ensure compliance with electrical safety standards and optimal performance.
Applications
  • Indoor commercial and residential lighting
  • Surface mounted lighting in offices, schools, and retail spaces
  • General ambient lighting in corridors and hallways
Standards & Compliance
  • AS/NZS 60598.1 – Luminaires General requirements and tests
  • AS/NZS 60598.2.1 – Particular requirements for fixed general purpose luminaires
Environmental Benefits
  • High system efficiency reduces energy consumption
  • Long lifespan reduces waste and replacement frequency
  • Low heat emission improves energy efficiency
Warranty Information

VIP Warranty: 2 years onsite and 3 years return-to-base (total 5 years) for registered users. Standard warranty: 3 years return-to-base for domestic use.

Available Now

The atom 21W Single 1200mm Narrow Body Diffused LED Batten - OPAL is available for immediate purchase, ideal for indoor commercial and residential surface lighting applications.


Lighting Requirement Calculator







This calculator follows relevant Australian standards to ensure reliable and compliant performance. It provides an estimated recommendation based on user inputs.
Users must verify specifications before purchasing.
