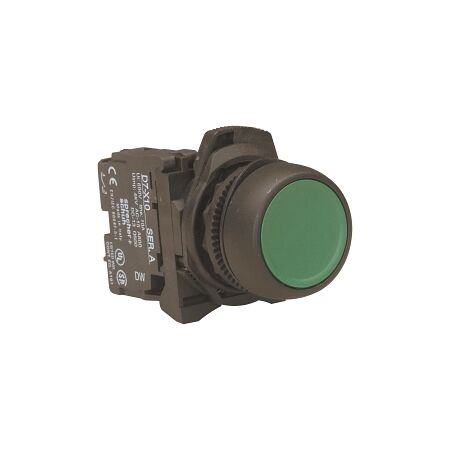

22.5mm Green Pushbutton Switch | IP65/IP66/IP69K | Flush Design by NHP
22.5mm pushbutton switch with a green cap and flush design—ideal for industrial and commercial control panels. Built for durability, with IP65/IP66/IP69K protection against dust and water.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Sprecher and Schuh D7 Pushbutton 22.5 mm Complete Plastic MOM Flush Green Cap Non Ill 1NO
Brand: NHP
SKU: D7PF3PX10
Alternatively Known As: 22.5mm Pushbutton Switch, Green Momentary Switch
Technical Specifications
- Number of contacts: 1 NO
- Type of electric connection: Screw connection
- Material front ring: Plastic
- Degree of protection: IP65/IP66/IP69K
- Max shock acceleration: 100 g
- Max vibration acceleration: 10 m/s²
- Max vibration frequency operational: 2000 Hz
- Hole diameter: 22.5 mm
- Operator diameter: 29.6 mm
- Dimensions (H x L x W): 29.6mm x 22.5mm x 22.5mm
- Weight: 0.1 kg
Key Features
- 22.5mm flush pushbutton design with a green cap.
- IP65/IP66/IP69K rated for protection against dust and water.
Professional Installation Requirements
- Professional installation by a qualified technician is recommended for optimal performance.
Applications
- Industrial: Control panels, machinery
- Commercial: Equipment control, automation systems
Standards & Compliance
- Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
- Durable materials reduce the need for frequent replacements, minimizing waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Sprecher and Schuh D7 Pushbutton 22.5 mm Complete Plastic MOM Flush Green Cap Non Ill 1NO is available now for immediate purchase. Ideal for industrial and commercial control applications.
