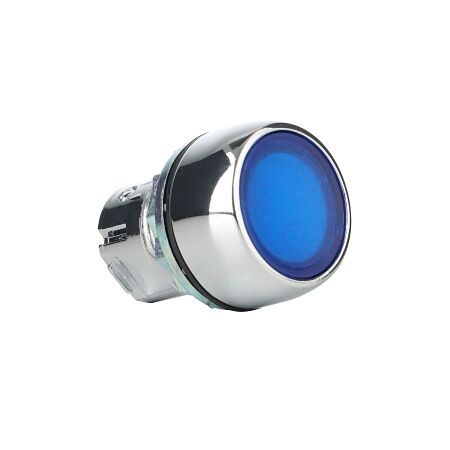

22.5 mm Metal Latching Pushbutton | Blue Lens Cap | IP66 Rated by NHP
22.5 mm pushbutton with metal front ring and blue lens cap—ideal for industrial control panels and commercial automation systems. Built for durability, with IP66 protection against dust and water.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Sprecher and Schuh D7 Pushbutton 22.5 mm Head Only Metal Latching Flush Blue Lens Cap Illuminated
Brand: NHP
SKU: D7MLFA6
Alternatively Known As: D7 Pushbutton, Metal Latching Pushbutton, Illuminated Pushbutton
Technical Specifications
- Colour Button: Blue
- Type of Button: High
- Material Front Ring: Metal
- Colour Front Ring: Chrome
- Degree of Protection (IP): IP66
- Construction Type Lens: Round
- Switching Function: Latching
- Max Vibration Acceleration: 10 m/s²
- Max Vibration Frequency Operational: 2000 Hz
- Max Shock Acceleration: 100 g
- Number of Command Positions: 1
- Suitable for Illumination: Yes
- Hole Diameter: 22.5 mm
- Dimensions (H x L x W): 10mm x 22.5mm x 29.6mm
- Weight: 0.1 kg
Key Features
- 22.5 mm pushbutton with metal front ring and blue lens cap.
- IP66 rated for protection against dust and water.
Professional Installation Requirements
- Professional installation by a qualified technician is recommended for optimal performance.
Applications
- Industrial: Control panels, machinery
- Commercial: Equipment control, automation systems
Standards & Compliance
- Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
- Complies with relevant safety and performance standards.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Sprecher and Schuh D7 Pushbutton is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable control solutions.
