22.5 mm Metal Latching Pushbutton | IP66 Rated | Chrome Finish by NHP
22.5 mm pushbutton with metal front ring and chrome finish—ideal for industrial and commercial control panels. Built for durability, with IP66 protection and latching function for reliable operation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

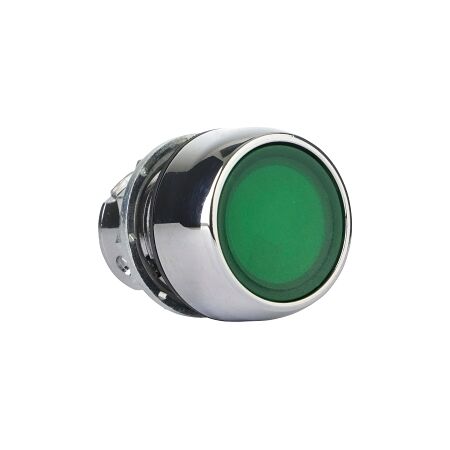

Product Name/Title: Sprecher and Schuh D7 Pushbutton 22.5 mm Head Only Metal Latching Flush Green Lens Cap Illuminated
Brand: NHP
SKU: D7MLFA3
Alternatively Known As: D7 Pushbutton, Metal Latching Pushbutton, Illuminated Pushbutton Switch
Technical Specifications
- Colour Button: Green
- Material Front Ring: Metal
- Colour Front Ring: Chrome
- Degree of Protection (IP): IP66
- Construction Type Lens: Round
- Switching Function: Latching
- Max Vibration Acceleration: 10 m/s²
- Max Vibration Frequency Operational: 2000 Hz
- Max Shock Acceleration: 100 g
- Number of Command Positions: 1
- Suitable for Illumination: Yes
- Hole Diameter: 22.5 mm
- Dimensions (H x L x W): 10mm x 22.5mm x 29.6mm
- Weight: 0.1 kg
Key Features
- 22.5 mm pushbutton with metal front ring and chrome finish.
- IP66 rated for protection against dust and water.
- Latching switching function for reliable operation.
Professional Installation Requirements
- Professional installation by a qualified technician is recommended for optimal performance.
Applications
- Industrial: Control panels, machinery
- Commercial: Equipment control, automation systems
Standards & Compliance
- Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
- Complies with relevant safety and performance standards.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Sprecher and Schuh D7 Pushbutton is available now for immediate purchase. Ideal for industrial and commercial control applications.
