22.5 mm Pushbutton Switch | Green Lens | Metal Chrome Finish | IP66 Rated by NHP
22.5 mm pushbutton switch with a green lens and metal chrome finish—ideal for industrial and commercial control panels. Built for durability, with IP66 protection against dust and water.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

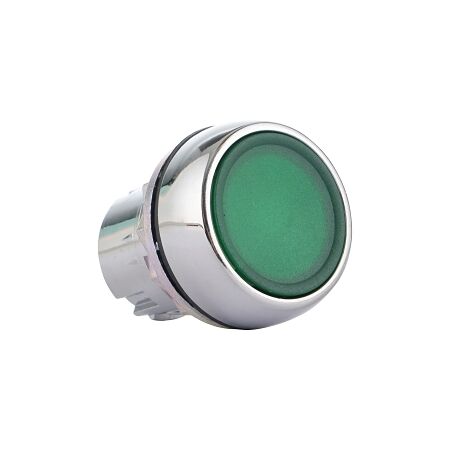

Product Name/Title: Sprecher and Schuh D7 Pushbutton 22.5 mm Head Only Metal Momentary Flush Green Lens Cap Illuminated
Brand: NHP
SKU: D7MLF3
Alternatively Known As: 22.5 mm Pushbutton Switch, Momentary Pushbutton, Green Lens Pushbutton
Technical Specifications
- Colour Button: Green
- Type of Button: Flat
- Material Front Ring: Metal
- Colour Front Ring: Chrome
- Degree of Protection (IP): IP66
- Construction Type Lens: Round
- NEMA Rating: 5
- Suitable for Illumination: Yes
- Hole Diameter: 22.5 mm
- Max Vibration Acceleration: 10 m/s²
- Max Vibration Frequency Operational: 2000 Hz
- Max Shock Acceleration: 100 g
- Number of Command Positions: 1
- Dimensions (H x L x W): 10mm x 22.5mm x 29.6mm
- Weight: 0.1 kg
Key Features
- 22.5 mm flat pushbutton with a green lens cap.
- Metal front ring with chrome finish for durability.
- IP66 rated for protection against dust and water.
Professional Installation Requirements
- Professional installation by a qualified technician is recommended for optimal performance.
Applications
- Industrial: Control panels, machinery
- Commercial: Equipment and machinery control
- General: Any application requiring a momentary pushbutton switch
Standards & Compliance
- Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
- Complies with relevant safety and performance standards.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Sprecher and Schuh D7 Pushbutton 22.5 mm Head Only Metal Momentary Flush Green Lens Cap Illuminated is available now for immediate purchase. Ideal for industrial and commercial control applications.
