Trade Discount 25%
22.5mm Pushbutton Switch | Red Lens | Illuminated 24V | IP65 Rated by NHP
22.5mm pushbutton switch with red lens and 24V illumination—ideal for industrial and commercial control panels. Built for durability with IP65/IP66/IP69K protection, ensuring reliable operation in harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

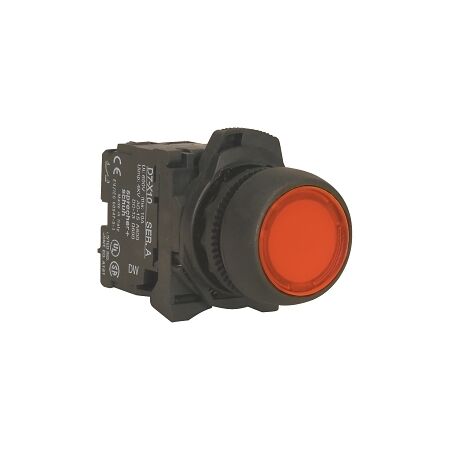

Product Name/Title: Sprecher and Schuh D7 Pushbutton 22.5 mm Complete PLT MOM Flush Red Lens Cap Illuminated 24V 1NC
Brand: NHP
SKU: D7PLF4PN3RX01
Alternatively Known As: 22.5mm Pushbutton Switch, Illuminated Pushbutton, Red Lens Pushbutton
Technical Specifications
- Number of contacts (NC): 1
- Type of electric connection: Screw connection
- Supply voltage lamp: 24 V
- Colour button: Red
- Type of button: Flush
- With front ring: Yes
- Material front ring: Plastic
- Switching function: Non-latching
- Max shock acceleration: 100 g
- Max vibration acceleration: 10 m/s²
- Max vibration frequency operational: 2000 Hz
- Suitable for illumination: Yes
- Hole diameter: 22.5 mm
- Dimensions (H x L x W): 29.6mm x 22.5mm x 22.5mm
- Weight: 0.2 kg
Key Features
- 22.5mm pushbutton with a red lens cap for visibility.
- IP65/IP66/IP69K rated for protection against dust and water.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Control panels, machinery operation
- Commercial: Equipment control in various settings
Standards & Compliance
- Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
- Durable design reduces the need for frequent replacements, minimizing waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Sprecher and Schuh D7 Pushbutton 22.5 mm Complete PLT MOM Flush Red Lens Cap Illuminated 24V 1NC is available now for immediate purchase. Ideal for industrial and commercial applications.
