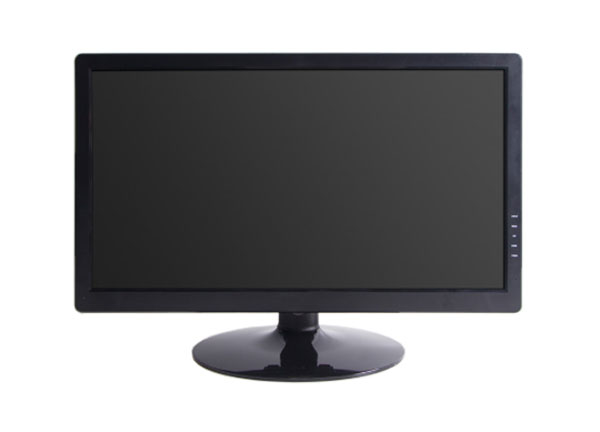

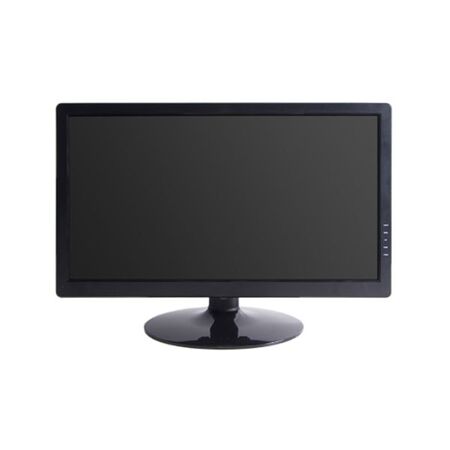

22 Inch Full HD CCTV Monitor 1920x1080 HDMI and VGA Ness
Ness 22 inch Full HD CCTV monitor features 1920x1080 resolution, HDMI and VGA inputs and a Grade A panel. Ideal for CCTV installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Ness 22 Inch CCTV Monitor, Ness Full HD Surveillance Monitor, LC-ME2201-BNC Security Monitor
Technical Specifications
- Screen Size: 22 inch
- Resolution: 1920 x 1080 Full HD
- Panel Type: Grade A
- Aspect Ratio: 16:9
- Video Inputs: 2 x BNC, HDMI, VGA
- Video Output: 1 x BNC
- Image Processing: 3D comb filter
- Backlight: LED
- Product Code: 114-026B
- Model: LC-ME2201-BNC
- Dimensions (H x L x W): 300mm x 500mm x 50mm
- Weight: 3.5 kg
Key Features
- Full HD 1920 x 1080 display
- Grade A panel for clear CCTV image reproduction
- HDMI and VGA connectivity for modern video equipment
- Two BNC inputs and one BNC loop output for CCTV applications
- 16:9 widescreen format
- 3D comb filter for improved video signal processing
- Suitable for residential and commercial surveillance systems
Professional Installation Requirements
- No licensed installation is required for the monitor itself. Connect the supplied power equipment and video cables in accordance with the manufacturer’s instructions; professional setup is recommended for integrated CCTV installations.
Applications
- CCTV monitoring in residential properties
- Commercial surveillance systems
- Security control rooms
- DVR and NVR display applications
- HDMI, VGA and analogue BNC video monitoring
Standards & Compliance
- AS/NZS 60950 safety compliance is stated by the product reseller; confirm current product conformity documentation before installation or commercial deployment.
Environmental Benefits
- LED backlighting and low-power display technology can reduce operating energy consumption compared with older fluorescent-backlit monitors.
- Ness publishes RoHS compliance information for its product range, supporting reduced use of restricted hazardous substances.
- Durable CCTV monitoring hardware can reduce replacement frequency and associated electronic waste.
Warranty Information
Ness Corporation’s general warranty provides 3 years from the date of purchase for Ness manufactured or supplied products, unless otherwise specified.
Available Now
Available through Ness and authorised Australian security and electrical distributors; confirm current stock with the supplying distributor.
