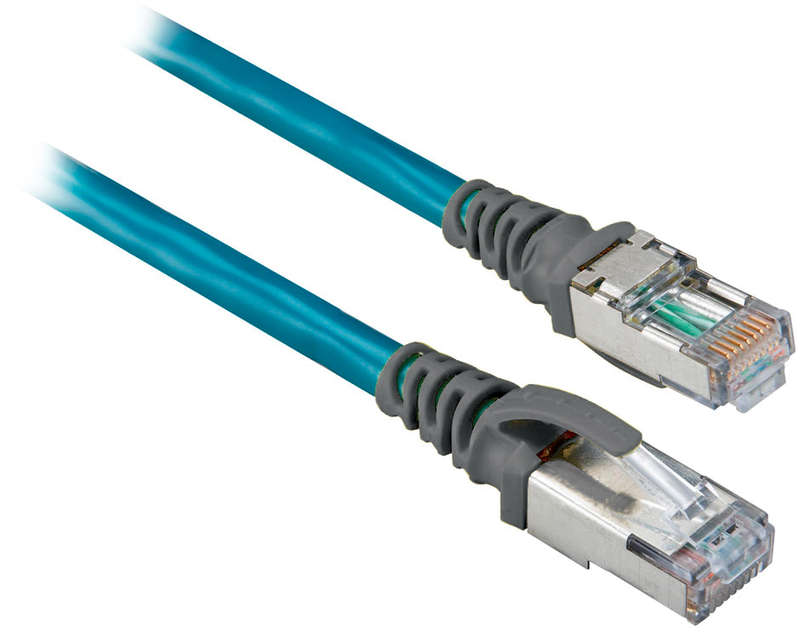

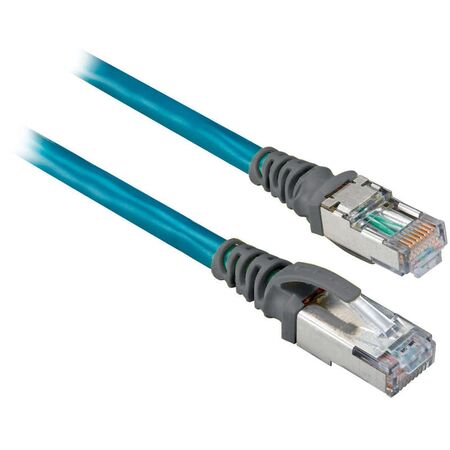

22AWG 2 Pair RJ45 Industrial Ethernet Cordset Allen-Bradley
The Allen-Bradley 1585DE4HBJM30 is a 22AWG shielded industrial Ethernet cordset built for factory automation and control panel wiring runs. It features a shielded 2-pair (4-conductor) PVC construction rated to 600V, terminated with an RJ45 straight male connector on one end and a right-angle male connector on the other. Cable length is build-to-order, supporting the 100BASE-TX Ethernet standard for reliable industrial data transmission. Connector specs, voltage rating, and cordset length options are detailed further down the page.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Cable Type: Shielded 4 conductors (2-pair)
- Conductor Size: 22 AWG
- Voltage Rating: 600V
- Cable Jacket: PVC
- Data Rate: 100 Mbit/s
- Ethernet Standard: 100BASE-TX
- Connector Type: RJ45 straight male and right angle male
- Cable Length: Build to order
- Dimensions (H x L x W): 5mm x 30000mm x 5mm
- Weight: 0.1 kg
Key Features
- Shielded 4 conductor (2-pair) cable for noise reduction
- Right angle male connector for space-saving installations
- Supports 100BASE-TX Ethernet standard
- RJ45 straight male connector
- 22 AWG PVC insulated cable rated for 600V
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper network connectivity and compliance with electrical standards.
Applications
- Industrial Ethernet networking
- Factory automation communication
- Data transmission in control systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable shielding reduces electromagnetic interference, improving signal integrity and reducing network errors.
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 1585DE4HBJM30 Ethernet Media Cable is available now for immediate purchase. Ideal for industrial and factory automation Ethernet networking applications.
FAQ
Q: What voltage and conductor rating does this cordset support?
A: The 1585DE4HBJM30 uses 22AWG conductors rated to 600V, with a shielded 2-pair (4-conductor) PVC construction suited to industrial control panel wiring.
Q: What warranty applies to the Allen-Bradley 1585DE4HBJM30?
A: This product comes with a Radwell 2-year warranty. Note that the factory warranty does not apply — review the full warranty terms on the product page before ordering.
For tighter panel spacing, a 26AWG 2 pair right angle ethernet cordset is available with the same right-angle connector configuration.
Where a fixed-length option is preferred, the Cat5e RJ45 high flex ethernet cordset offers a ready-made industrial Ethernet connection.
For gigabit links between industrial devices, the Cat6 M12 shielded ethernet cordset supports higher data rate requirements.
