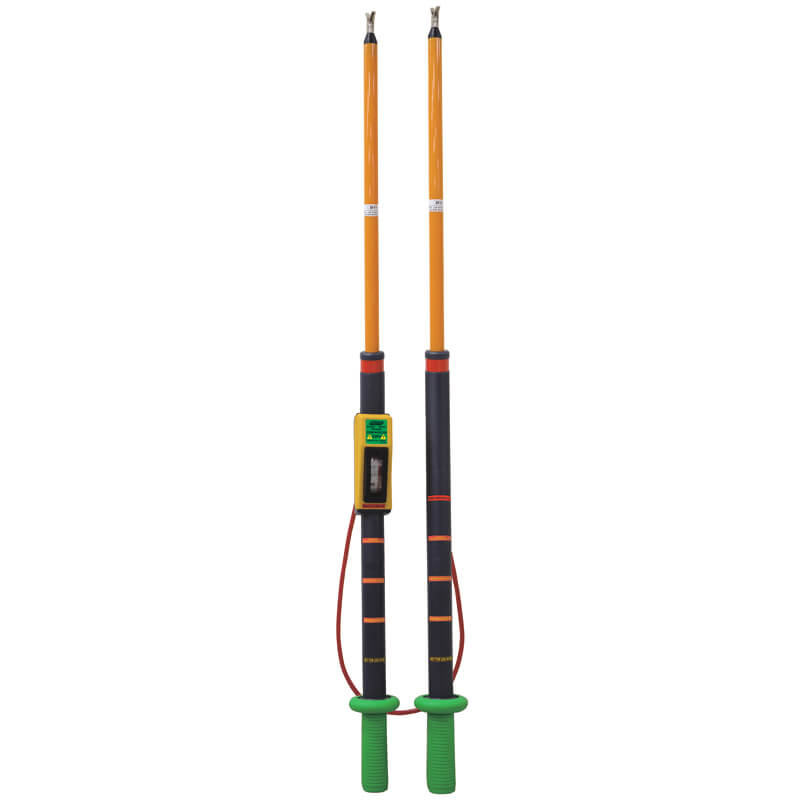

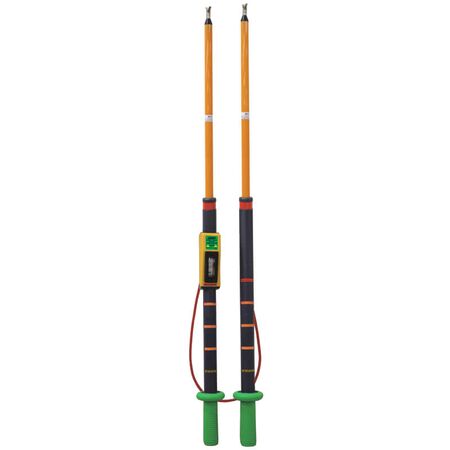

22kV High Voltage Phasing Stick | 30kV Max Voltage | Neon Indicator & Composite Body | by Majortech
The 22kV High Voltage Phasing Stick is designed for testing grounded or ungrounded electrical systems, featuring a maximum voltage range of 30kV and a bright neon indicator for easy visibility. Built for trained electrical professionals, it ensures accurate measurements and safety in industrial and utility applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 22kV High Voltage Phasing Stick | 30kV Max Voltage | Neon Indicator & Composite Body | by Majortech
Brand: Majortech
SKU: MT22KV
Alternatively Known As: High Voltage Phasing Stick, 22kV Voltage Detector, Phase Comparator Stick, High Voltage Tester Stick
Technical Specifications
- Full scale voltage range: 24kV
- Maximum voltage range: 30kV
- Frequency range: 50 or 60Hz
- Total resistance: 10.82MΩ
- Response time: less than 1 second
- Neon threshold voltage: 1.2kV
- Neon fully lit at: 1.5kV
- Display type: Neon and analogue panel meter
- Handle material: Composite with polyurethane
- Front end material: Fibreglass wound tubing
- Operating temperature: -25°C to 55°C
- Operating humidity: 20 to 96% RH
- Safety standard: IEC61481
- Dimensions (H x L x W): n/a mm x 1275mm x n/a mm
- Weight: 2.2 kg
Key Features
- All-in-one meter including Phase Comparator with colour coded scale indication
- Voltage Detector with Neon Indication
- Scaled Voltmeter for direct reading in kVAC or % of full scale
- Dual pole instrument with high quality glass fibre front ends
- Composite polyurethane main body moulding for tough, lightweight construction
- Analogue colour coded dual scales (Green = in phase, Red = out of phase)
- Bright neon indicator for easy visibility and voltage detection above 1200VAC
- Housed in a high quality plastic case with shock absorbing foam
- Suitable for indoor use with neon indicator
- Operates in temperature range -25°C to 55°C and humidity 20 to 96% RH
Professional Installation Requirements
- Use by trained electrical professionals is recommended to ensure safety and accurate measurements.
Applications
- Testing of grounded or ungrounded electrical systems
- Checking voltage fuses
- Testing for correct phase connections
- Verifying absence of high voltage on de-energized lines or apparatus
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable construction reduces need for frequent replacements
- Lightweight design minimizes material usage and transport emissions
Warranty Information
Warranty details available upon request from Majortech or authorized distributors.
Available Now
The Majortech 22kV High Voltage Phasing Stick is available now for immediate purchase. Ideal for electrical testing and maintenance in industrial and utility applications.
