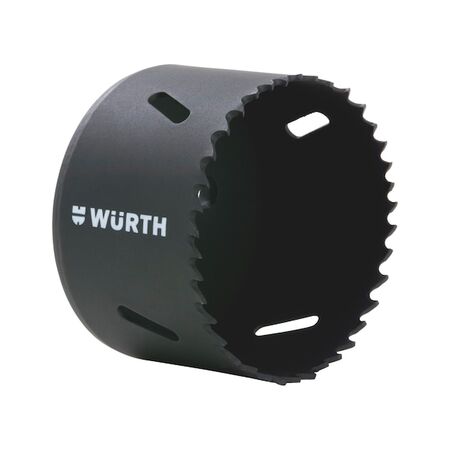

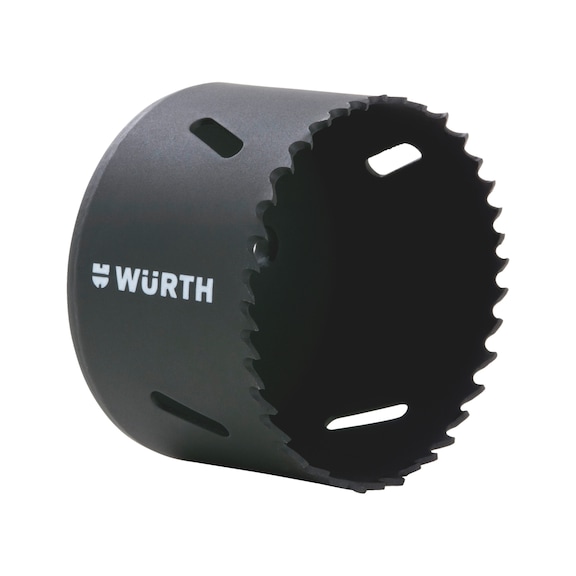

22mm Steel Hole Saw | Fast Drilling Speed | Low-Vibration Operation | by Wurth
The 22mm Steel Hole Saw is designed for fast and precise drilling in steel and stainless steel materials. With extremely fast drilling speeds and low-vibration operation, it's perfect for machining and metalworking tasks. This hole saw features an outer hexagon drive for secure attachment and is suitable for use with standard drilling equipment, making it ideal for trained operators.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 22mm Steel Hole Saw | Fast Drilling Speed | Low-Vibration Operation | by Wurth
Brand: Wurth
SKU: 632900022
Alternatively Known As: Hole Saw for Stainless Steel, Metal Hole Cutter, Steel Hole Saw, Wurth Hole Saw 22mm
Technical Specifications
- Diameter: 22 mm
- Cutting depth: 38 mm
- Drive type: Outer hexagon
- Suitable for cordless drills (points system): 3 of 4
- Suitable for drill (points system): 3 of 4
- Suitable for upright drilling machine (points system): 4 of 4
- Versatility (points system): 4 of 4
- Drilling speed (points system): 4 of 4
- Bore hole quality (points system): 2 of 4
- Recommended rotation speed in soft steel: 390 rpm
- Recommended rotation speed in tool steel and stainless steel: 195 rpm
- Recommended rotation speed in cast iron: 260 rpm
- Recommended rotation speed in brass: 520 rpm
- Recommended rotation speed in aluminium: 585 rpm
- Dimensions (H x L x W): 38mm x 22mm x 22mm
- Weight: 0.1 kg
Key Features
- Extremely fast drilling speed with minimal effort
- High concentricity and side stroke accuracy
- Very quiet and low-vibration operation up to 38 mm cutting depth
- Recommended rotation speeds for various materials to optimize performance
- Outer hexagon drive type for secure attachment
Professional Installation Requirements
- No professional installation required. Suitable for use with standard drilling equipment by trained operators.
Applications
- Drilling precise holes in steel and stainless steel materials
- Suitable for use with cordless drills, upright drilling machines
- Ideal for machining and metalworking tasks requiring fast drilling speeds
Standards & Compliance
- AS/NZS 3123 – Industrial Plugs and Socket-Outlets
Environmental Benefits
- Durable construction reduces the need for frequent replacements, minimizing waste
- Efficient cutting reduces energy consumption during drilling
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth's warranty policy for details.
Available Now
The Wurth Steel/Stainless Steel Hole Saw 22mm is available for immediate purchase. Ideal for machining and metalworking applications requiring fast and precise drilling.
