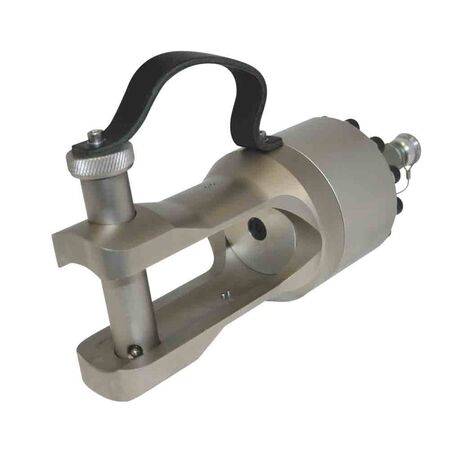

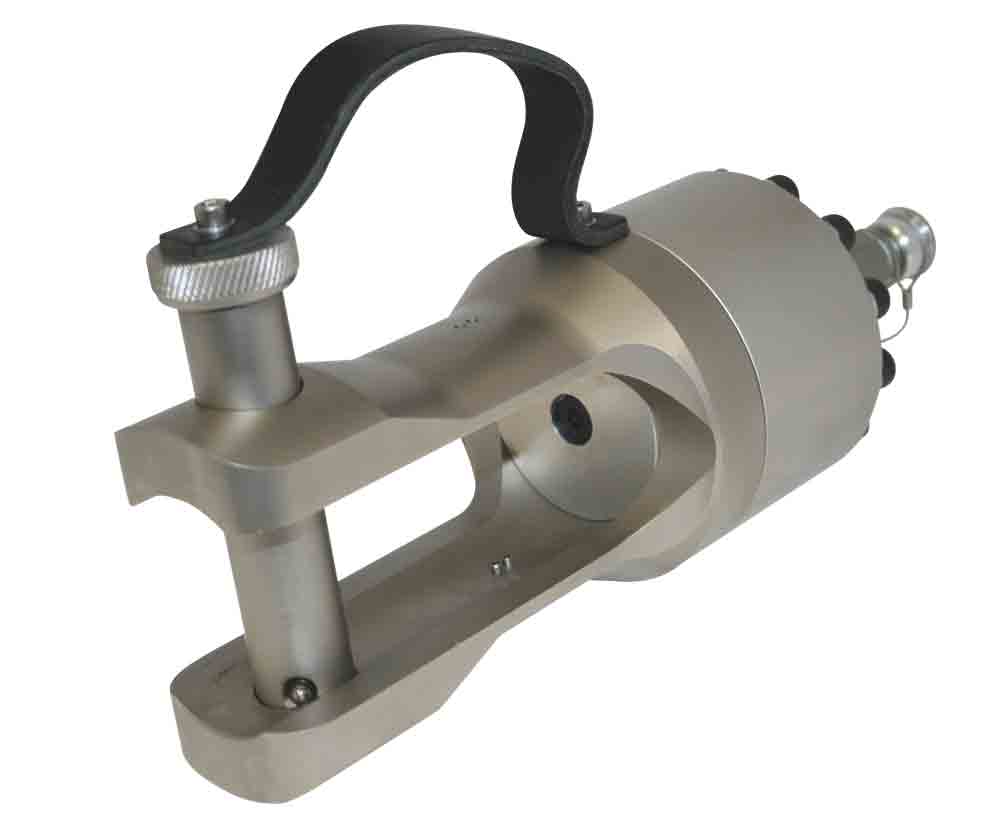

23 Tonne Crimp Head | 23 Tonne Compression Output | Up to 630mm² Copper | Compatible with HPP1 Pump | @Each of 1 | by Cabac
The 23 Tonne Crimp Head is designed for crimping copper conductors up to 630mm², making it ideal for electrical and utility installations that require high compression force. This lightweight and compact tool is compatible with the HPP1 hydraulic pump, ensuring efficient operation with a 23 Tonne output. Perfect for professional use, it enhances productivity while complying with safety standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 23 Tonne Crimp Head | 23 Tonne Compression Output | Up to 630mm² Copper | Compatible with HPP1 Pump | @Each of 1 | by Cabac
Brand: Cabac
SKU: MSS-RH23
Alternatively Known As: 23 Tonne Hydraulic Crimp Head, Hydraulic Cable Crimping Tool, Copper Conductor Crimp Head
Technical Specifications
- Compression Output: 23 Tonne
- Suitable Conductor Size: Up to 630mm² Copper (6–300mm² with adaptor die sets)
- Weight: 4.3kg
- Length: 295mm
- Hydraulic Oil Requirement: 110ml per complete cycle
- Compatible Pump: HPP1 hydraulic pump
- Dimensions (H x L x W): 100mm x 295mm x 100mm
- Weight: 4.3 kg
Key Features
- 23 Tonne compression output suitable for copper conductors up to 630mm²
- Smallest and lightest crimp head tool of its kind available
- Compatible with HPP1 hydraulic pump
- Requires 110ml of hydraulic oil per complete cycle
Professional Installation Requirements
- Professional use recommended; operators should be trained in hydraulic tool safety and operation.
Applications
- Crimping copper conductors up to 630mm²
- Electrical and utility installations requiring high compression force
- Use with HPP1 hydraulic pump for efficient operation
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces the need for frequent replacements, minimizing waste
- Hydraulic operation reduces manual effort, improving energy efficiency during use
Warranty Information
Warranty details available upon request from the manufacturer.
Available Now
The Cabac 23 Tonne Crimp Head is available for immediate purchase, ideal for electrical contractors and utility professionals requiring reliable hydraulic crimping tools.
