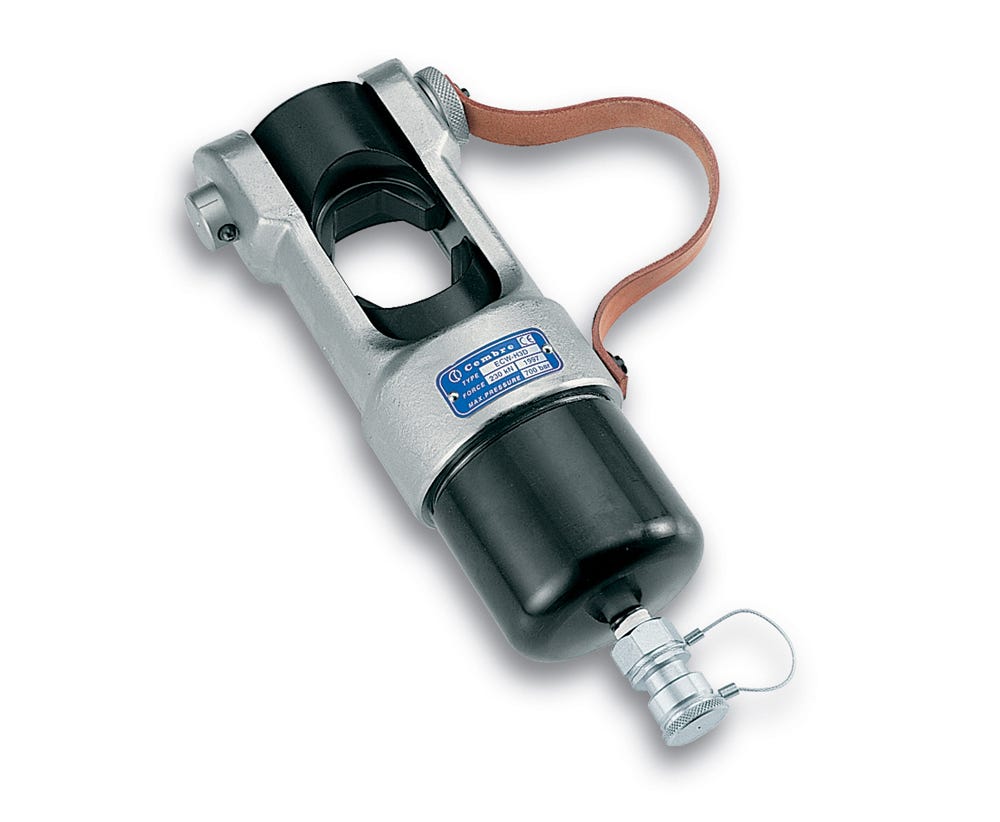

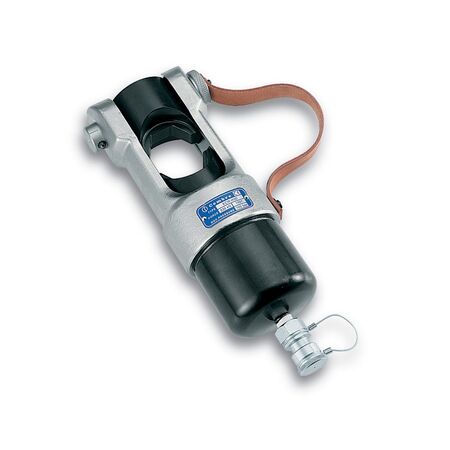

23 Tonne Crimper Remote Head | 23 Tonnes Crimping Force | 630mm² Copper & 500mm² Aluminium | @Each of 1 | by Cabac
The 23 Tonne Crimper Remote Head is designed for crimping large copper and aluminium cables, delivering an impressive 23 tonnes of force. Ideal for electrical and utility applications, this lightweight tool is compatible with hydraulic pumps operating at 700 bar, ensuring efficient and reliable performance. Perfect for both field and workshop tasks, it simplifies cable jointing and termination.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Crimping force: 23 tonnes at die faces
- Maximum copper cable size: 630mm²
- Maximum aluminium cable size: 500mm²
- Hydraulic pressure requirement: 700 bar (10,000 psi)
- Hydraulic oil volume per cycle: 110ml
- Material: Steel case available separately
- Dimensions (H x L x W): 150mm x 400mm x 300mm
- Weight: 10 kg
Key Features
- Develops 23 tonnes of force at the die faces
- Capable of crimping up to 630mm² copper and 500mm² aluminium cables
- Lightweight design for easy handling by one person
- Compatible with hydraulic pumps delivering 700 bar (10,000 psi)
- Steel storage case available separately
- Requires 110ml of hydraulic oil per complete cycle
Professional Installation Requirements
- Should be operated by trained personnel familiar with hydraulic tools and safety procedures. Use with compatible hydraulic pumps only.
Applications
- Crimping large copper cables up to 630mm²
- Crimping aluminium cables up to 500mm²
- Electrical and utility cable jointing and termination
- Field and workshop hydraulic crimping tasks
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Reduces manual labor and improves efficiency, lowering energy consumption during cable installation
- Durable construction extends tool life, reducing waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac for specific warranty details.
Available Now
The Cabac 23 Tonne Crimper Remote Head is available for immediate purchase, ideal for professional electrical and utility cable crimping applications.
