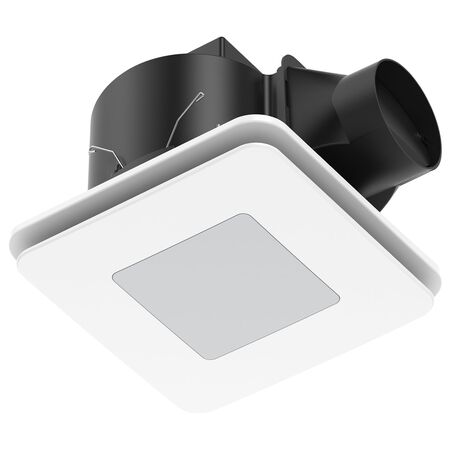

BLIZZARD 330 DC Square Exhaust Fan 400m³ h Airflow CCT LED Panel IPX4 Rated by Brilliant Lighting

BRAND: Brilliant Lighting
SKU: 23029/05
$206.90 List price: $250.40
+ −
30 Days Return Electricians Unlock Trade Access

Product Name/Title: BLIZZARD 330 DC Square Exhaust Fan | 400m³/h Airflow | CCT LED Panel | IPX4 Rated | by Brilliant Lighting

Brand: Brilliant Lighting

SKU: 23029/05

Alternatively Known As: ['Brilliant Blizzard 330 Exhaust Fan', 'Blizzard 330 DC Bathroom Fan', 'Brilliant 23029/05 Exhaust Fan', 'Square LED Exhaust Fan', 'Bathroom Exhaust Fan with LED']

Technical Specifications
  • Motor Wattage: 40W DC
  • Air Extraction: 400m³/h
  • Noise Level: 40dB(A) at 3m
  • Colour Temperature: 3000K / 4200K / 6000K (CCT selectable)
  • LED Wattage: 12W
  • Cut-out Size: 295 x 295mm
  • Fascia Size: 330 x 330mm
  • Duct Outlet: 150mm diameter
  • Voltage: 220-240V AC, 50Hz
  • IP Rating: IPX4
  • Dimensions (H x L x W): 210mm x 330mm x 330mm
  • Weight: 2.8 kg
Key Features
  • High airflow DC motor for energy efficiency and quiet operation
  • Integrated CCT LED panel with selectable colour temperature (3000K/4200K/6000K)
  • Low profile square fascia in white finish
  • 40W motor with high extraction rate
  • 5-year warranty
  • Easy installation and maintenance
Professional Installation Requirements
  • Installation by a licensed electrician is required to ensure compliance with Australian electrical standards and optimal performance.
Applications
  • Bathrooms
  • Laundry rooms
  • Toilets
  • Kitchens
  • Commercial washrooms
  • General indoor ventilation areas
Standards & Compliance
  • Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
  • Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
  • Energy-efficient DC motor reduces power consumption
  • LED lighting minimises energy use and heat output
  • Improved indoor air quality reduces mould and moisture
Warranty Information

5-year warranty on the motor, 2-year in-home warranty.

Available Now

The BLIZZARD 330 DC Square Exhaust Fan with CCT LED - White is available for immediate purchase. Ideal for bathrooms, laundries, and other indoor spaces requiring efficient ventilation and lighting.
