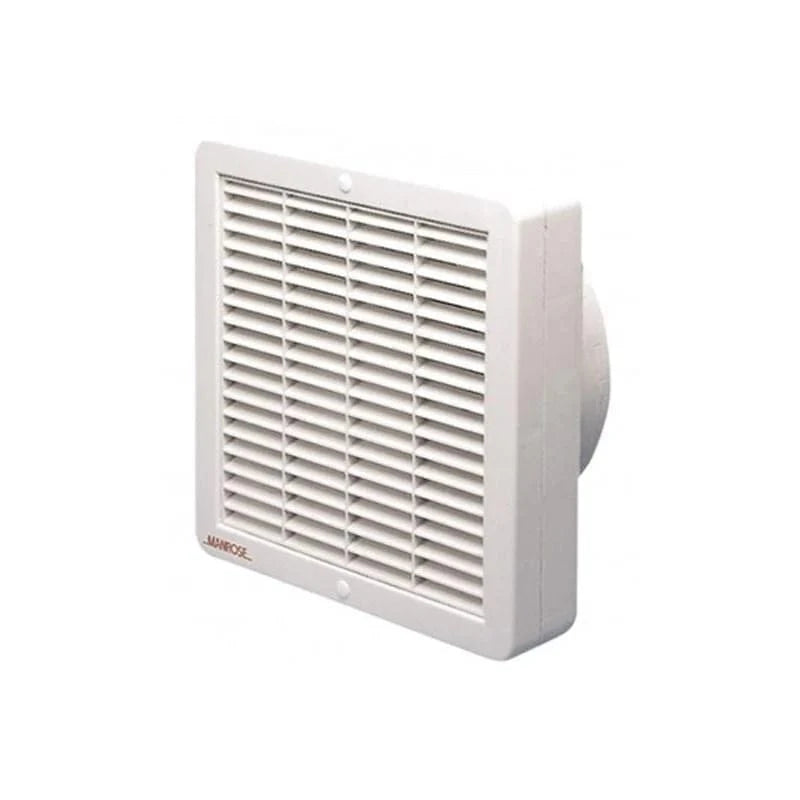

230mm Commercial Exhaust Fan 550m³/h White Ventair
230mm Wall/Ceiling Mounted Commercial Fan Standard Model Standard Switch 152l/s 550m³/hour by Ventair
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Manrose XFS230S, 230mm Commercial Axial Exhaust Fan, Commercial Wall/Ceiling Ventilation Fan
Technical Specifications
- Fan Type: Axial
- Duct Size: 230mm
- Air Delivery: 550m³/h, approximately 153L/sec
- Motor Power: 45W maximum
- Maximum Fan Pressure: 50Pa
- Specific Fan Power: 0.30W/L/sec
- Noise Level: 50dB(A)
- Switching: Standard remote switch, not supplied
- Power Supply: 220-240V AC, 50Hz
- IP Rating: IPX4
- Maximum Operating Temperature: 50°C
- Motor: Ball-bearing motor
- Motor Housing: Die-cast aluminium
- Impeller: PBT plastic
- Fascia: White square fascia
- Cut-out Size: 265mm nominal diameter
- Dimensions (H x L x W): 286mm x 141mm x 286mm
- Weight: 2.5 kg
Key Features
- Designed for wall or ceiling mounting
- Suitable for commercial ventilation applications
- High airflow output of 550m³/h
- Ball-bearing motor designed for extended service life
- Standard switching configuration using a remote switch
- IPX4-rated construction for protection against water splashes
- Efficient operation with a specific fan power of 0.30W/L/sec
Professional Installation Requirements
- Installation and fixed-wiring connection must be performed by a qualified, licensed electrician in accordance with the installation instructions and AS/NZS 3000. Ventilation discharge should be designed and installed in accordance with applicable building and mechanical ventilation requirements.
Applications
- Commercial bathrooms and amenities
- Retail, office and workplace ventilation
- Workshops and utility areas
- Wall or ceiling-mounted general-purpose exhaust ventilation
- Moisture, odour and stale-air extraction in commercial premises
Standards & Compliance
- AS/NZS 60335.2.80:2016 for the safety requirements of fans
- AS/NZS 3000:2017 for electrical wiring and installation
Environmental Benefits
- Ball-bearing motor construction can extend product service life and reduce replacement waste
- 45W motor provides relatively low electrical demand for the stated airflow capacity
- Aluminium motor housing and plastic components may be recoverable through appropriate recycling streams
- Regular cleaning and maintenance can help preserve airflow efficiency over the product life
Warranty Information
Five-year manufacturer warranty is listed for the product; Ventair's warranty policy limits products used in commercial applications to a maximum one-year warranty, with no in-home service.
Available Now
Available through authorised Ventair distributors in Australia.
