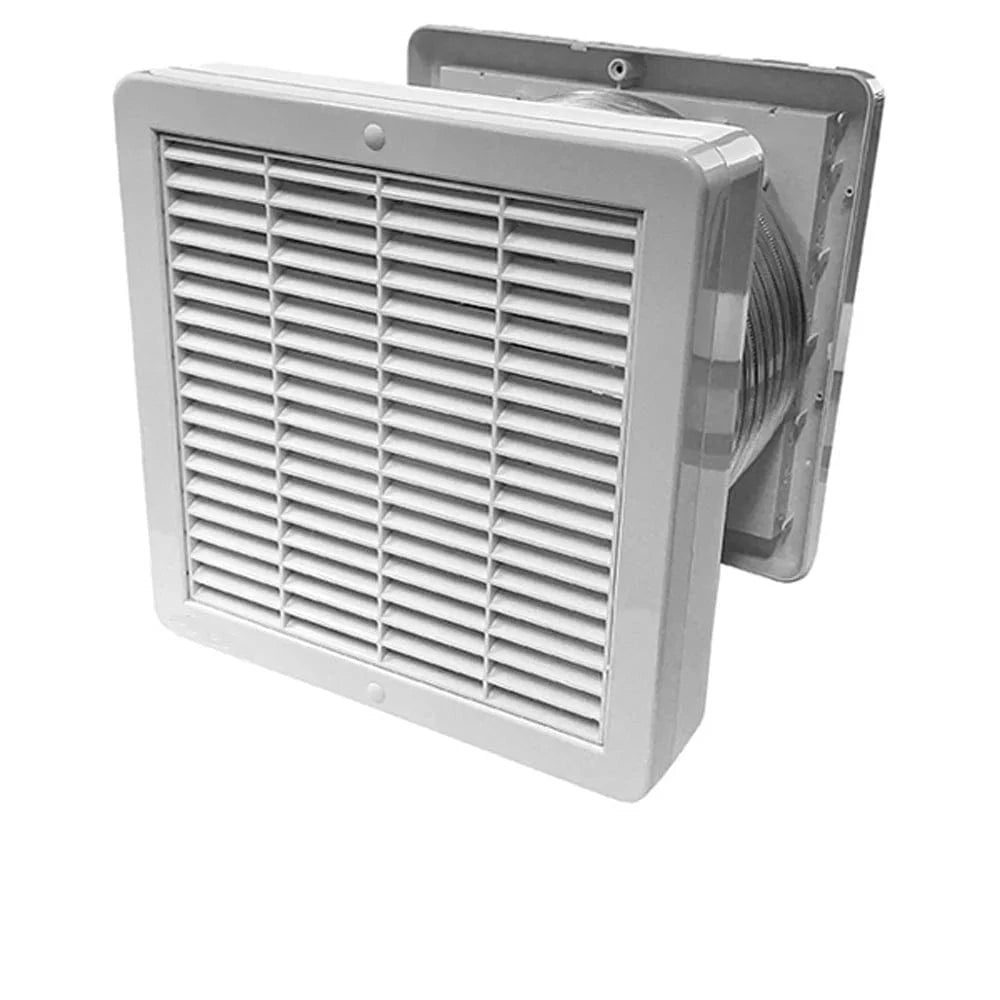

230mm Commercial Exhaust Fan Kit 550m³/h White Ventair
230mm Wall/Ceiling Mounted Commercial Fan Kit Standard Model Standard Switch 152l/s 550m³/hour by Ventair
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Ventair XPS230S Commercial Fan Kit, 230mm Through-Wall Exhaust Fan Kit, 550m³/h Commercial Exhaust Fan
Technical Specifications
- Model: XPS230S
- Order Code: FAN0455
- Fan Type: Axial
- Duct Size: 230mm
- Air Delivery: 550m³/h or 152L/s
- Motor Input: 45W
- Maximum Fan Pressure: 50Pa
- Specific Fan Power: 0.30W/L/s
- Sound Pressure Level: 50dB(A) at 3m
- Supply: 220–240V AC, 50Hz
- Ingress Protection: IPX4
- Fan Speed: 1,250rpm
- Cut-Out Size: 265mm diameter
- Fascia Size: 286mm x 286mm
- Switching: Standard remote-switch operation; switch not included
- Construction: Die-cast aluminium motor housing with PBT plastic impeller and outer rotor
- Kit Contents: Expandable semi-rigid aluminium ducting, weatherproof cowl and exterior grille
- Dimensions (H x L x W): 286mm x 375mm x 286mm
- Weight: 4.5 kg
Key Features
- Suitable for wall or ceiling mounting
- Designed for ducting directly through an exterior wall
- 550m³/h free-air extraction performance
- Ball-bearing motor for extended operating life
- IPX4-rated construction for protected damp-area applications
- Includes expandable semi-rigid ducting and weatherproof external cowl
- Fixed external grille helps prevent unwanted backdraughts
- Standard remote-switch configuration
Professional Installation Requirements
- Installation must be completed by a qualified electrician using fixed wiring and in accordance with the installation instructions. An external grille must be fitted for through-wall installations, and the exhaust should discharge to the outside.
Applications
- Commercial bathroom and amenities ventilation
- Workshops, storerooms and utility areas
- Commercial wall or ceiling exhaust ventilation
- Through-wall extraction where a 230mm duct is available
- Protected damp-area ventilation applications
Standards & Compliance
- Applicable fan safety requirements: AS/NZS 60335.2.80:2025
- Electrical installation should comply with AS/NZS 3000 where applicable
Environmental Benefits
- Aluminium semi-rigid ducting can be recycled at end of service life where suitable recycling facilities are available
- Ball-bearing motor construction can extend product service life and reduce replacement waste
- Specific fan power of 0.30W/L/s supports relatively efficient air extraction for its capacity
Warranty Information
Ventair commercial-use products have a maximum one-year warranty against manufacturing defects. Warranty is subject to correct installation by a licensed electrical contractor and compliance with the installation instructions.
Available Now
Available through authorised Ventair distributors in Australia.
