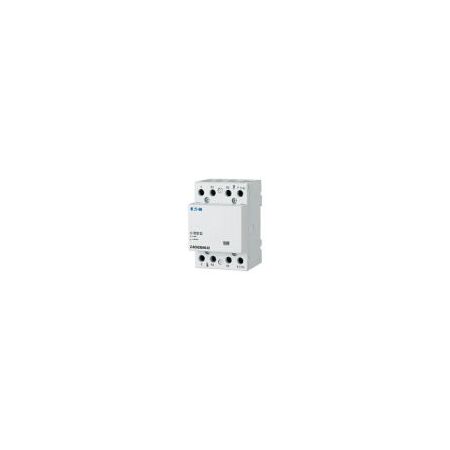

230V Contactor 40A | 2 N/O + 2 N/C Contacts | IP40 Rated by Eaton
The Eaton Z-SCH230/40-22 is a 230V contactor with a 40A amperage rating and 2 normally open plus 2 normally closed contacts—ideal for industrial motor control and electrical switching applications. Built for reliable automation systems, it features an IP40 rating for protection against dust and moisture.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 230V Contactor 40A | 2 N/O + 2 N/C Contacts | IP40 Rated by Eaton
Brand: Eaton
SKU: Y7-248853
Alternatively Known As: Eaton Z-SCH contactor, 230V contactor, 40A contactor, motor contactor, electrical contactor
Technical Specifications
- Amperage Rating: 40 A
- Voltage Rating (excitation): 195.5 V to 253 V AC
- Rated Operating Voltage: 440 V AC
- Number of Contacts: 2 Normally Open + 2 Normally Closed
- Degree of Protection: IP40
- Equipment Heat Dissipation (current-dependent): 8.6 W
- Ambient Operating Temperature Range: -40 °C to 60 °C
- Incandescent Lamp Load Max: 5520 W
- Load Fluorescent Lamp Max: 2610 VA
- Utilization Category: AC-1
- Number of Modular Spacings: 3
- Static Heat Dissipation: 0 W
- Dimensions (H x L x W): 60mm x 85mm x 52.5mm
- Weight: 0.36 kg
Key Features
- 230VAC/50Hz operation
- 2 Normally Open (N/O) + 2 Normally Closed (N/C) contacts
- 40A amperage rating suitable for 3HP motors
- IP40 degree of protection
- Additional equipment possible for customization
- RoHS compliant
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical safety standards and optimal performance.
Applications
- Industrial motor control
- Electrical switching applications
- Automation systems requiring reliable contactors
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- RoHS compliant ensuring reduced hazardous substances
- Energy efficient switching reduces power loss during operation
Warranty Information
Standard Eaton warranty applies; please refer to Eaton's official warranty policy for details.
Available Now
The Eaton Z-SCH230/40-22 Installation Contactor is available now for immediate purchase. Ideal for industrial and commercial electrical control applications.
