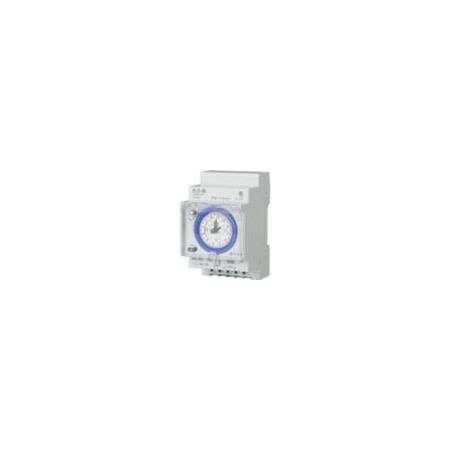

24 Hour Time Switch | Quartz Controlled | IP20 Protection | DIN Rail Mount by Eaton
The Eaton TSQD1CO is a 24-hour time switch with quartz control for high accuracy and IP20 protection—ideal for industrial and commercial electrical control systems. Built for automation and energy management, it features a potential free change-over contact and manual operation capability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 24 Hour Time Switch | Quartz Controlled | IP20 Protection | DIN Rail Mount by Eaton
Brand: Eaton
SKU: Y7-167390
Alternatively Known As: Eaton Time Switch TSQD1CO, Eaton 24 Hour Time Switch, Eaton Quartz Time Switch
Technical Specifications
- Nominal switching current at 250 V AC: 16 A
- Supply voltage range: 110 V to 230 V AC
- Frequency supply voltage range: 45 Hz to 60 Hz
- Autonomy: 200 hours
- Number of channels: 1
- Contact type: Change-over contact
- Degree of protection: IP20
- Static heat dissipation: 0.5 W
- Mounting method: DIN rail
- Shortest switching time: 15 minutes
- Functions: Potential free switch contact, switching preselection, 24 h program, quartz controlled, manual operation
- Dimensions (H x L x W): 90mm x 66mm x 54mm
- Weight: 0.12 kg
Key Features
- Series connection time switch with 24-hour program
- Quartz controlled for high accuracy (1 second per day)
- Potential free change-over contact
- Manual operation capability
- Shortest switching time of 15 minutes
- IP20 degree of protection
- Mounting on DIN rail
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure compliance with electrical standards and safety.
Applications
- Industrial and commercial electrical control systems
- Automation systems requiring timed switching
- Energy management and load control
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- RoHS compliant, ensuring reduced hazardous substances
- Energy efficient switching reduces unnecessary power consumption
Warranty Information
Standard Eaton warranty applies; please refer to Eaton's official warranty policy for details.
Available Now
The Eaton TSQD1CO Series Connection Time Switch 24 hrs is available now for immediate purchase. Ideal for industrial and commercial timed switching applications.
