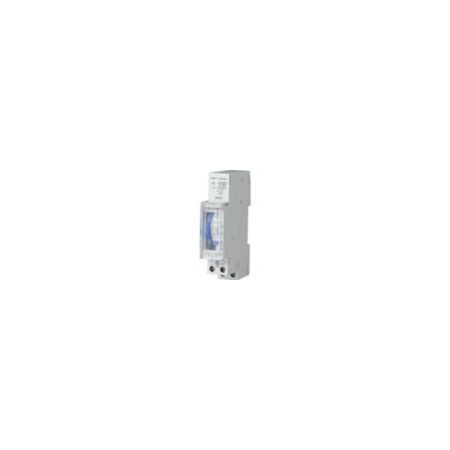

24 Hour Timer Switch | Quartz Controlled | DIN Rail Mounting | IP20 by Eaton
The Eaton TSQD1NO 24-hour timer switch features quartz control and DIN rail mounting—ideal for industrial and commercial electrical control systems. With a 72-hour autonomy and 1-second daily accuracy, it ensures reliable timed switching for energy management.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 24 Hour Timer Switch | Quartz Controlled | DIN Rail Mounting | IP20 by Eaton
Brand: Eaton
SKU: Y7-167388
Alternatively Known As: Eaton 24 Hour Time Switch, Eaton Quartz Timer Switch, TSQD1NO Timer
Technical Specifications
- Nominal switching current at 250 V AC: 16 A
- Supply voltage range: 230-240 V AC/DC
- Frequency supply voltage range: 45-60 Hz
- Shortest switching time: 15 minutes
- Number of channels: 1
- Static heat dissipation: 0.5 W
- Contact type: Normally open
- Degree of protection: IP20
- Accuracy: 1 second per day
- Autonomy: 72 hours
- Mounting method: DIN rail
- Dimensions (H x L x W): 90mm x 65.5mm x 17.5mm
- Weight: 0.08 kg
Key Features
- Quartz controlled 24-hour program
- Manual operation capability
- Potential free normally open switch contact
- Autonomy of 72 hours
- Accuracy of 1 second per day
- DIN rail mounting
- IP20 degree of protection
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical standards and safety.
Applications
- Industrial and commercial electrical control systems
- Automation systems requiring timed switching
- Energy management and load control
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- RoHS compliant, ensuring reduced hazardous substances
- Energy efficient switching reduces unnecessary power consumption
Warranty Information
Standard Eaton warranty applies; please refer to Eaton's official warranty policy for details.
Available Now
The Eaton TSQD1NO Series Connection Time Switch is available for immediate purchase, ideal for industrial and commercial timed electrical control applications.
