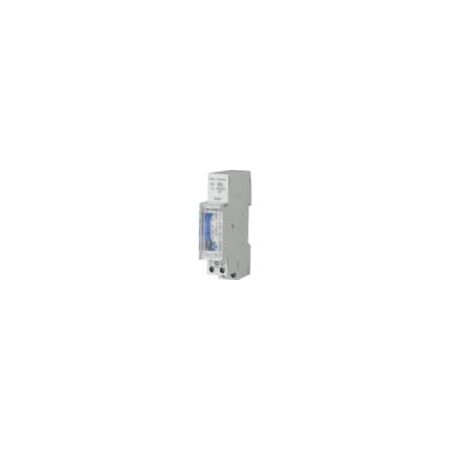

24 Hour Timer Switch | Quartz Controlled | IP20 Protection | DIN Rail Mount by Eaton
The Eaton 24 hour timer switch features quartz controlled timing and IP20 protection—ideal for industrial and commercial electrical control systems. Built for automation and lighting control, it offers accurate switching with a minimum 15-minute interval.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 24 Hour Timer Switch | Quartz Controlled | IP20 Protection | DIN Rail Mount by Eaton
Brand: Eaton
SKU: Y7-167389
Alternatively Known As: Eaton Time Switch, Eaton Quartz Timer, Eaton 24 Hour Timer Switch
Technical Specifications
- Nominal switching current at 250 V AC: 16 A
- Degree of protection: IP20
- Supply voltage: 230 V AC, 50 Hz
- Number of channels: 1
- Accuracy per day: 0 seconds
- Ambient operating temperature range: -25 °C to 50 °C
- Static heat dissipation: 0.9 W
- Switching power LED max: 600 W
- Mounting method: DIN rail
- Width in modular spacings: 1
- Dimensions (H x L x W): 90mm x 65.5mm x 17.5mm
- Weight: 0.071 kg
Key Features
- Quartz controlled timing for accurate switching
- Normally open contact type
- Manual operation and mains synchronous
- 24 hour program with switching preselection
- Shortest switching time of 15 minutes
- Potential free switch contact
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical standards and safety.
Applications
- Industrial and commercial electrical control systems
- Automation systems requiring timed switching
- Lighting and heating control circuits
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- RoHS compliant ensuring reduced hazardous substances
- Energy efficient switching reduces unnecessary power consumption
Warranty Information
Standard Eaton warranty applies; typically 1-3 years depending on purchase terms.
Available Now
The Eaton TSSD1NO Series Connection Time Switch 24 hrs is available now for immediate purchase. Ideal for industrial and commercial timed electrical control applications.
