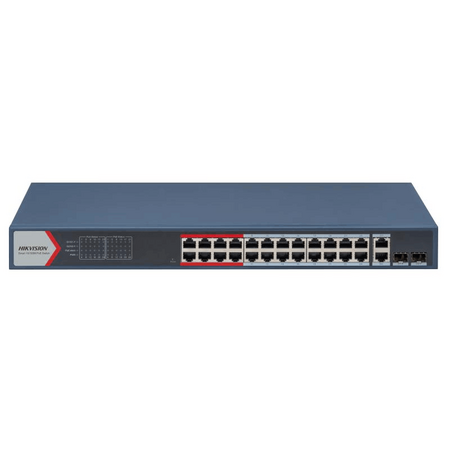

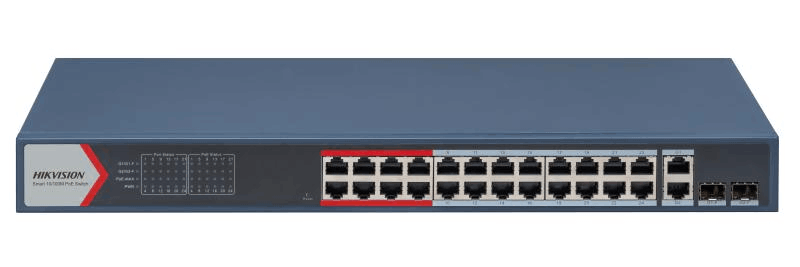

24 Port Managed PoE Switch | 370W Power Budget | 2x Gigabit Uplink | PoE Watchdog | by Dicker Data
The 24 Port Managed PoE Switch is designed for robust network infrastructure, featuring a 370W power budget and 2x Gigabit uplink ports for high-speed data transmission. Ideal for security and surveillance applications, this switch includes a PoE watchdog to automatically restart unresponsive cameras, ensuring reliable operation in enterprise environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 24 Port Managed PoE Switch | 370W Power Budget | 2x Gigabit Uplink | PoE Watchdog | by Dicker Data
Brand: Dicker Data
SKU: DS-3E1326P-EI-B
Alternatively Known As: Managed PoE Switch, 24 Port PoE Switch, Network Switch for Surveillance, PoE Network Switch
Technical Specifications
- 24 × 10/100M PoE ports
- 2 × Gigabit combo uplink ports
- Total PoE Power Budget: 370 W
- Supports 802.1Q VLAN
- PoE watchdog for camera restart
- STP/RSTP loop prevention
- Cable detection for failure location
- Long Range PoE Transmission up to 300 m
- 6 kV Surge Protection
- Dimensions (H x L x W): 44mm x 220mm x 440mm
- Weight: 3.5 kg
Key Features
- 24 × 10/100M PoE ports with a total PoE power budget of 370W
- 2 × Gigabit combo uplink ports for high-speed data transmission
- Supports 802.1Q VLAN for network segmentation
- PoE watchdog feature to detect and restart unresponsive cameras
- STP/RSTP support for loop prevention
- Cable detection to locate network failures
- Supports up to 300 m long range PoE transmission
- 6 kV surge protection for enhanced device safety
Professional Installation Requirements
- Professional installation by a qualified network technician or electrician is recommended to ensure proper configuration and safety.
Applications
- Security and surveillance network infrastructure
- IP camera systems requiring Power over Ethernet
- Enterprise and commercial network environments
- Long range PoE device connectivity
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Efficient PoE power management reduces energy waste
- Supports long range PoE transmission minimizing additional power equipment
- Surge protection extends device lifespan reducing electronic waste
Warranty Information
2 years warranty provided by the manufacturer.
Available Now
The HIKVISION TRANSMISSION 3E1326P-EI 24 Port Managed PoE Switch is available for immediate purchase, ideal for security and surveillance network setups requiring reliable PoE power and data transmission.
