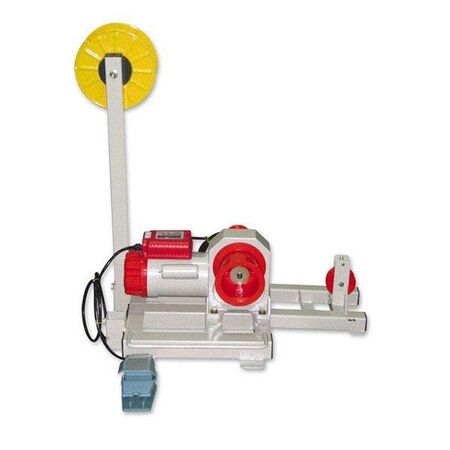

240V Capstan Winch 2.5 Ton Dual Capacity IP44 Rated Cabac
The 240V Capstan Winch is a powerful 2.5-ton electric cable puller designed for efficient cable installation and pulling in construction and industrial sites.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Voltage: 240V single phase
- Motor Output: 0.6kW, IP44 rated
- Rated Capacity: 1500kg (large drum), 2500kg (small drum)
- Rope Speed: 4.0 m/min (large drum), 2.5 m/min (small drum)
- Control: Foot control
- Gear Ratio: 154:1
- Max Pulling Duration: 15 minutes
- Suitable Rope Diameter: 7-12mm (rope not supplied)
- Dimensions (H x L x W): 350mm x 600mm x 400mm
- Weight: 60 kg
Key Features
- Dual pulling capacity of 2500kg and 1500kg with dual speeds depending on drum size
- Overload protection switch for automatic shut-off to prevent damage
- Electromagnetic spring-applied fail safe brake for safety
- Heavy duty high efficiency ball bearings on all running surfaces
- Rugged high power induction motor for proven reliability
- Case hardened gear train for maximum mechanical efficiency
- Rope storage reeler included
- Supplied with 3 metre power supply cable
Professional Installation Requirements
- Professional installation and operation by trained personnel is recommended to ensure safety and compliance with electrical standards.
Applications
- Cable installation and pulling in construction and industrial sites
- Suitable for horizontal cable pulling tasks
- General use in electrical and telecommunications cable laying
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Electric operation reduces emissions compared to fuel-powered winches
- Durable construction extends product life and reduces waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac for detailed warranty terms.
Available Now
The Cabac 240V Capstan Winch - 2.5 Ton is available for immediate purchase, ideal for cable installation and pulling applications in industrial and construction environments.
