Trade Discount 17%

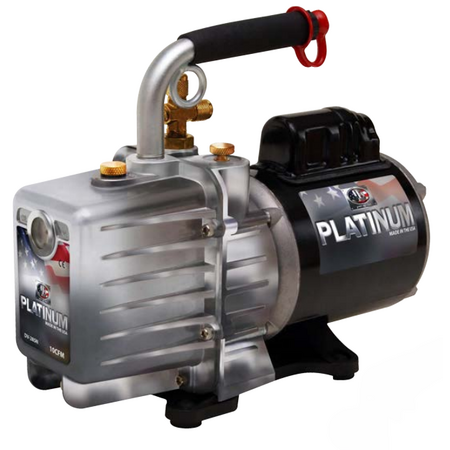

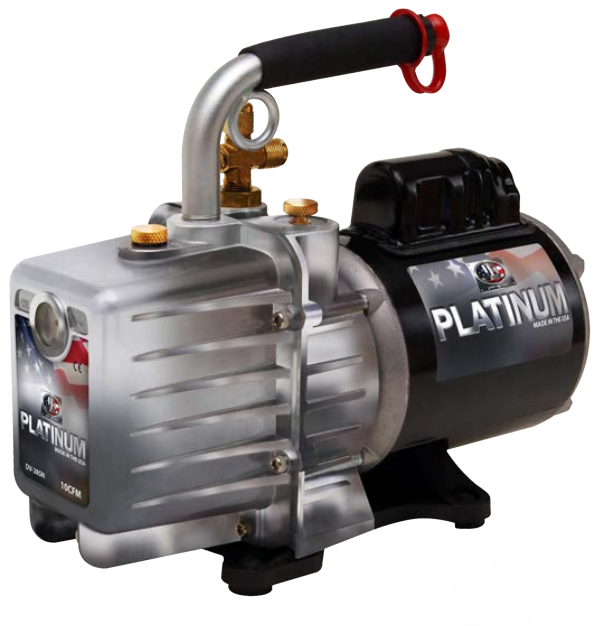

240V Platinum Vacuum Pump | 120 L/m Volume Capacity | 1/2 HP Motor | 2-Stage Direct Drive | by Aspen Pumps
The 240V Platinum Vacuum Pump delivers a powerful 120 L/m volume capacity, making it ideal for HVAC/R technicians. With a robust 1/2 HP motor and efficient 2-stage direct drive design, this pump ensures optimal vacuum generation for air conditioning and refrigeration system evacuation. Built for durability and ease of repair, it meets high standards for professional use.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 240V Platinum Vacuum Pump | 120 L/m Volume Capacity | 1/2 HP Motor | 2-Stage Direct Drive | by Aspen Pumps
Brand: Aspen Pumps
SKU: DV142N250AU
Alternatively Known As: Platinum Series Vacuum Pump, JB Industries Vacuum Pump, 240V HVAC Vacuum Pump, 2-Stage Vacuum Pump
Technical Specifications
- Volume: 120 L/m
- Motor: 1/2 HP, 1425 RPM
- Voltage: 230V - 50Hz
- Intake Port Sizes: 1/4", 3/8", 1/2"
- Oil Capacity: 680 ml
- Vacuum Rating: 15 Microns
- 2-Stage direct drive motor
- Dimensions (H x L x W): 250mm x 400mm x 350mm
- Weight: 14.5 kg
Key Features
- 120 L/m volume capacity
- 1/2 HP motor with 1425 RPM
- 2-stage direct drive for efficient vacuum generation
- Gas ballast and blank off valve included
- 100% factory tested for quality assurance
- Completely field repairable design
- Made in USA with high durability standards
Professional Installation Requirements
- Installation and servicing should be performed by qualified HVAC/R technicians to ensure safety and optimal performance.
Applications
- Air conditioning and refrigeration system evacuation
- HVAC/R maintenance and repair
- Industrial and commercial refrigeration servicing
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Efficient vacuuming reduces energy consumption during HVAC/R servicing
- Durable and repairable design minimizes waste and extends product life
Warranty Information
24 month over-the-counter warranty.
Available Now
The Aspen 240V Platinum Vacuum Pump (120L/m) is available now for immediate purchase. Ideal for professional HVAC/R technicians requiring reliable and durable vacuum pumps.
