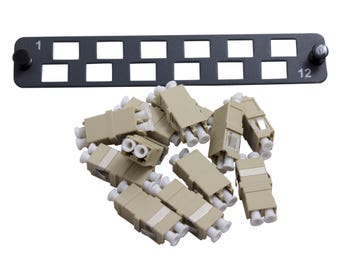

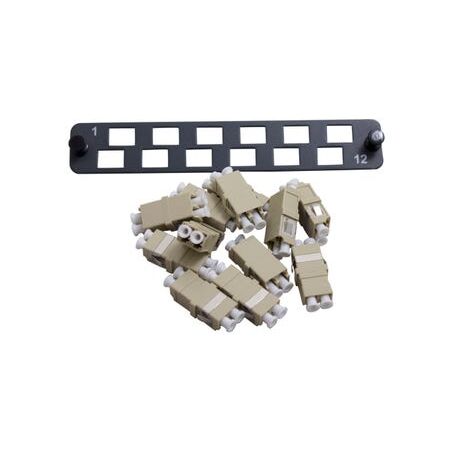

24F Flat Fibre Panel Kit LC Duplex OM1 Ports 1-12 L Type MSS Data

BRAND: CABAC
SKU: PF-LD24F1/12N-M1L
$67.00 List price: $89.40
+ −
30 Days Return Electricians Unlock Trade Access
MSS Data 24 fibre flat panel kit features 12x LC Duplex thru adaptors, OM1 rating and ports labelled 1-12. Ideal for MSS wall and rack fibre enclosures.

Alternatively Known As: MSS Data 24F LC Duplex OM1 Adaptor Panel, Flat Fibre Coupler Panel Kit, PF-LD24F1/12N-M1

Technical Specifications
  • Product Code: PF-LD24F1/12N-M1
  • Fibre Capacity: 24 fibres
  • Number of Ports: 12
  • Fibre Connector Type: LC Duplex
  • Fibre Mode: OM1 multimode
  • Panel Orientation: Flat
  • Included Adaptors: 12 LC Duplex thru adaptors
  • Port Labelling: 1-12
  • Compatibility: MSS wall mount and rack mount fibre enclosures
  • Dimensions (H x L x W): 3mm x 178mm x 44mm
  • Weight: 0.15 kg
Key Features
  • Provides 12 LC Duplex ports with capacity for up to 24 fibres
  • Supplied with 12 LC Duplex thru adaptors
  • OM1 multimode fibre system compatibility
  • Clearly labelled ports numbered 1-12
  • Flat modular panel construction
  • Designed for MSS wall and rack mount fibre enclosures
Applications
  • Fibre distribution in telecommunications rooms
  • Structured data cabling systems
  • Wall-mounted MSS fibre enclosures
  • Rack-mounted MSS fibre enclosures
  • Building and campus network backbone connections
Standards & Compliance
  • AS 11801.1:2019 and AS 11801.2:2019 provide the applicable Australian generic cabling framework for optical-fibre installations; product-specific certification is not stated
Environmental Benefits
  • Passive component with no operating power consumption
  • Reusable modular design can support system reconfiguration and reduce replacement waste
  • Supports fibre-optic infrastructure, which can provide high data capacity with low active network power demand
Warranty Information

MSS Data Solutions offers a conditional 25-year product warranty for eligible MSS fibre systems installed by an ACMA-registered cabler, subject to project registration, testing and use of qualifying MSS products.

Available Now

Available through MSS Data Solutions and authorised Australian electrical and communications distributors.
