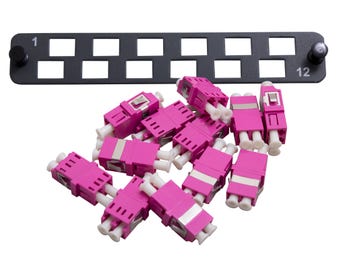

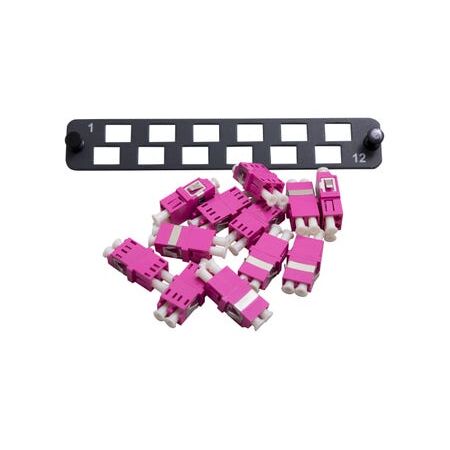

24F Flat Fibre Panel Kit LC Duplex OM4 Ports 1-12 L Type MSS Data
MSS Data 24 fibre flat panel kit features 12x LC Duplex thru adaptors, OM4 rating and ports labelled 1-12. Ideal for MSS wall and rack fibre enclosures.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 24F LC Duplex OM4 Fibre Adapter Panel, MSS Flat Coupler Panel Kit, OM4 Multimode Fibre Patch Panel
Technical Specifications
- Fibre Capacity: 24 fibres
- Connector Type: LC duplex
- Number of Ports: 12
- Fibre Mode: Multimode
- Fibre Type: OM4
- Port Labelling: 1-12
- Included Adaptors: 12 LC duplex thru adapters
- Panel Type: Flat coupler panel
- Compatibility: MSS wall-mount and rack-mount fibre enclosures
- Part Number: PF-LD24F1/12N-M4
- EAN: 9318674182887
- Standard Pack Quantity: 1 kit
- Dimensions (H x L x W): 27mm x 159mm x 159mm
- Weight: 0.25 kg
Key Features
- Provides 12 LC duplex ports for up to 24 fibre connections
- Supplied with 12 LC duplex thru adapters
- OM4 multimode configuration for high-bandwidth data cabling
- Clearly labelled ports 1-12
- Flangeless thru-adapter design with metal clips
- Compatible with MSS wall and rack fibre enclosures
- Modular panel format supports structured fibre cabling installations
Applications
- Fibre distribution and patching in communications rooms
- Data centre and enterprise network cabling
- MSS wall-mount fibre enclosure installations
- MSS rack-mount fibre enclosure installations
- OM4 multimode backbone and horizontal fibre cabling systems
Standards & Compliance
- Suitable for use in structured telecommunications cabling installations designed in accordance with AS/NZS 3080:2013
- Installation and testing should follow applicable AS/NZS 14763 series requirements
Environmental Benefits
- Passive component requires no operating power
- Modular panel and replaceable adapters can extend service life and reduce replacement waste
- Metal panel components are generally recyclable at end of service life
- Supports high-bandwidth fibre infrastructure without active electronic equipment at the panel
Warranty Information
MSS Data Solutions offers a 25-year product warranty from the date of installation, subject to project registration, approved installation, link testing and applicable warranty conditions.
Available Now
Available through MSS Data Solutions and authorised Australian electrical, data and communications distributors.
