Trade Discount 25%
24F Flat Fibre Panel Kit LC Duplex SM Ports 13-24 L Type MSS Data

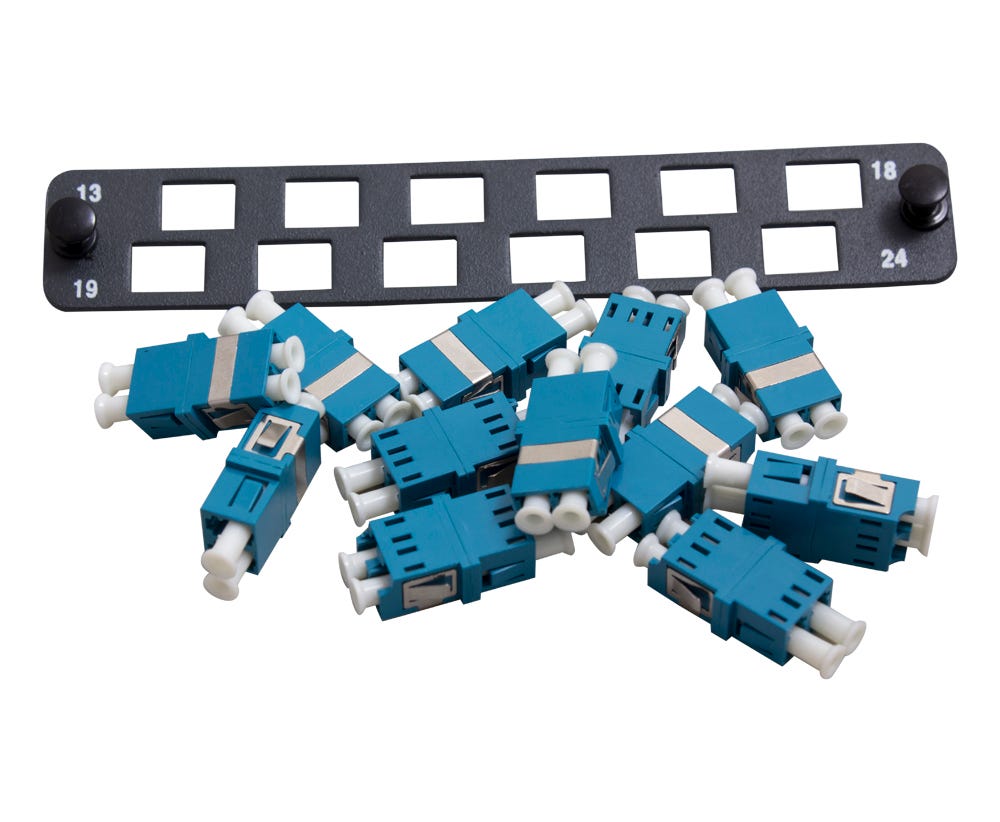

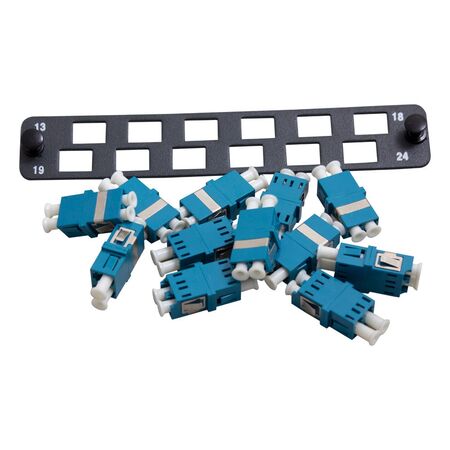

MSS Data 24 fibre flat panel kit features 12x LC Duplex thru adaptors, Singlemode rating and ports labelled 13-24. Ideal for MSS wall and rack fibre enclosures.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: MSS Data Flat Coupler Panel Kit, 24F LC Duplex Singlemode Panel, Fibre Optic Patch Panel
Technical Specifications
- Fibre Capacity: 24 fibres
- Fibre Mode: Singlemode
- Panel Orientation: Flat
- Connector Type: LC duplex
- Number of Ports: 12
- Port Labelling: 13-24
- Included Adaptors: 12 LC duplex through adaptors
- Enclosure Compatibility: MSS wall-mount and rack-mount fibre enclosures
- Packaging Unit: 1 kit
- Manufacturer Part Number: PF-LD24F13/24N-SM
- Dimensions (H x L x W): 44mm x 200mm x 480mm
- Weight: 1 kg
Key Features
- 24-fibre flat panel configuration
- Supplied with 12 LC duplex through adaptors
- Supports up to 24 fibres through 12 duplex ports
- Ports clearly labelled 13-24
- Designed for MSS wall-mount and rack-mount fibre enclosures
- Singlemode connectivity for telecommunications and data-network applications
Professional Installation Requirements
- Installation and fibre termination should be performed by an appropriately registered telecommunications cabler in accordance with applicable Australian cabling requirements, including AS/CA S009 where relevant. Do not look into active optical ports.
Applications
- Fibre optic patching and cross-connects
- Singlemode telecommunications cabling
- Data-centre and communications-room fibre distribution
- MSS wall-mount fibre enclosures
- MSS rack-mount fibre enclosures
Standards & Compliance
- AS/CA S008:2020 for applicable customer cabling products and connecting hardware
- AS/CA S009:2020 for applicable customer cabling installation requirements
- AS/NZS 11801.1:2019 for generic cabling system design and performance where used as part of a compliant structured cabling installation
Environmental Benefits
- Passive component requiring no operating power
- Reusable enclosure-mounted design can support maintenance and upgrades without replacing the complete fibre distribution assembly
- Long service life can reduce replacement-related material waste
Warranty Information
MSS Data Solutions offers a 25-year product warranty from the date of installation, subject to warranty registration, approved installation, link testing and the manufacturer's terms and conditions.
Available Now
Available through MSS Data Solutions and authorised Australian electrical, data-communications and telecommunications distributors.
