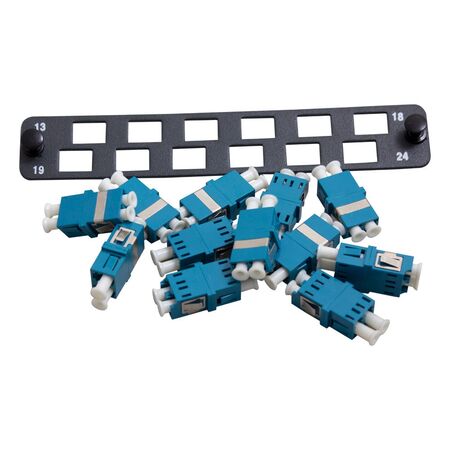

24F Flat Panel Kit LC Duplex OM1 Ports 13-24 L Type MSS Data

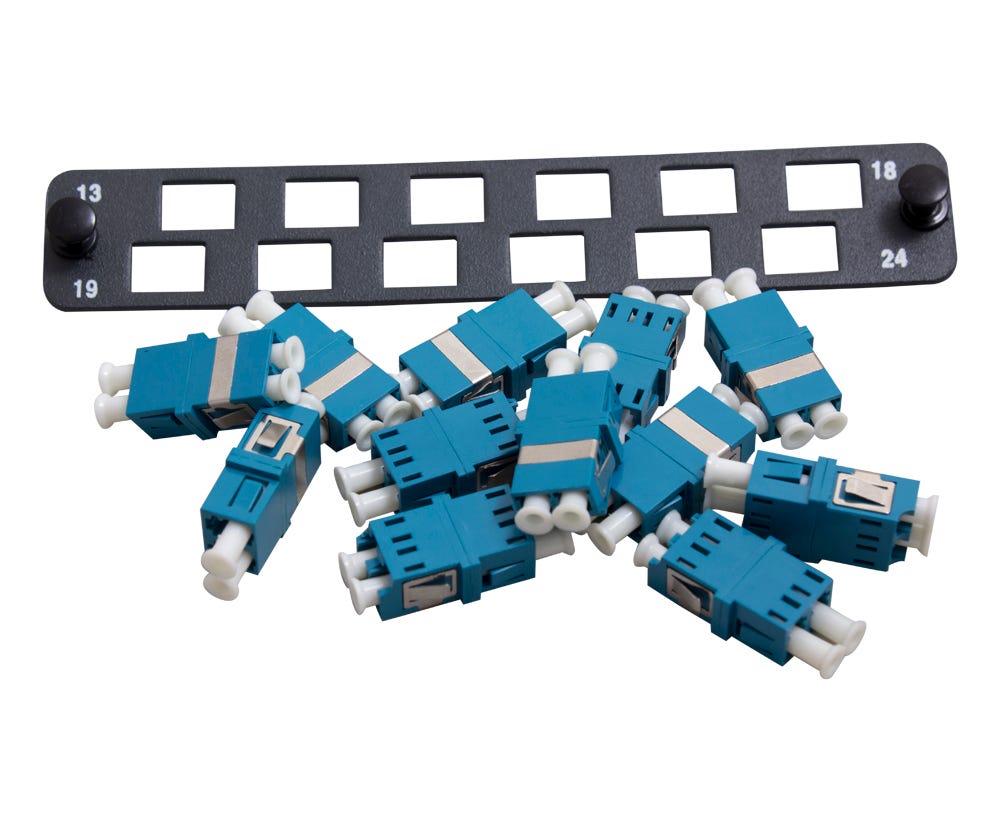

MSS Data 24 fibre flat panel kit features 12x LC Duplex thru adaptors, OM1 rating and ports labelled 13-24. Ideal for MSS wall and rack fibre enclosures.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 24F LC Duplex Fibre Panel Kit, OM1 LC Duplex Coupler Panel, MSS Fibre Enclosure Adapter Panel
Technical Specifications
- Fibre Capacity: 24 fibres
- Connector Type: LC Duplex
- Adapter Quantity: 12 LC Duplex thru adapters
- Port Configuration: 12 ports supporting up to 24 fibres
- Port Labelling: 13-24
- Fibre Mode: OM1 multimode
- Panel Orientation: Flat
- Compatibility: MSS wall-mount and rack-mount fibre enclosures
- Packaging Unit: 1 kit
- Product Identification: PF-LD24F13/24N-M1
- Published Dimensions: Not stated by the manufacturer; dimensions below are an estimate based on comparable LC adapter panels.
- Dimensions (H x L x W): 10mm x 130mm x 29mm
- Weight: 0.12 kg
Key Features
- Supplied with 12 LC Duplex thru adapters
- Provides 24-fibre capacity through 12 duplex ports
- Ports labelled 13-24 for structured fibre identification
- Flat panel format for modular MSS fibre enclosures and wall boxes
- Suitable for OM1 multimode fibre systems
- Passive component requiring no electrical power
Professional Installation Requirements
- Installation should be performed by a suitably qualified telecommunications cabler where the panel forms part of regulated customer cabling. Follow applicable project requirements for fibre termination, labelling, bend radius and optical testing.
Applications
- Fibre termination and cross-connect installations
- MSS wall-mount fibre enclosures
- MSS rack-mount fibre enclosures
- OM1 multimode telecommunications and data networks
- Expansion of fibre enclosure capacity for ports 13-24
Standards & Compliance
- AS/CA S008:2020 – relevant requirements for customer cabling products and connecting hardware; product-specific conformity is not stated by the manufacturer.
- AS/CA S009:2020 – relevant installation requirements where used in customer cabling; product-specific conformity is not stated by the manufacturer.
- AS/NZS 3080 – relevant structured telecommunications cabling framework for fibre-optic cabling installations; product-specific conformity is not stated by the manufacturer.
Environmental Benefits
- Passive component with no operating power consumption.
- Reusable modular panel design can support future network changes without replacing the complete enclosure.
- Metal mounting hardware and polymer components may be recoverable through appropriate commercial recycling streams, subject to local facilities.
Warranty Information
MSS Data Solutions offers a 25-year project warranty for eligible MSS Data Solutions products installed at the original site, subject to application, approved documentation, use of qualifying MSS/Legend products throughout the link and other warranty conditions. Standard sale terms also provide repair or replacement obligations for defective goods for one year from supply, subject to stated exclusions and Australian Consumer Law rights.
Available Now
Available through MSS Data Solutions and authorised Australian distributors; live stock and replenishment should be confirmed before ordering.
