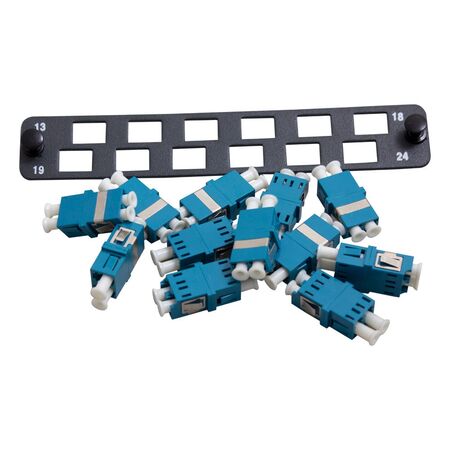

24F Flat Panel Kit LC Duplex OM3 Ports 13-24 L Type MSS Data

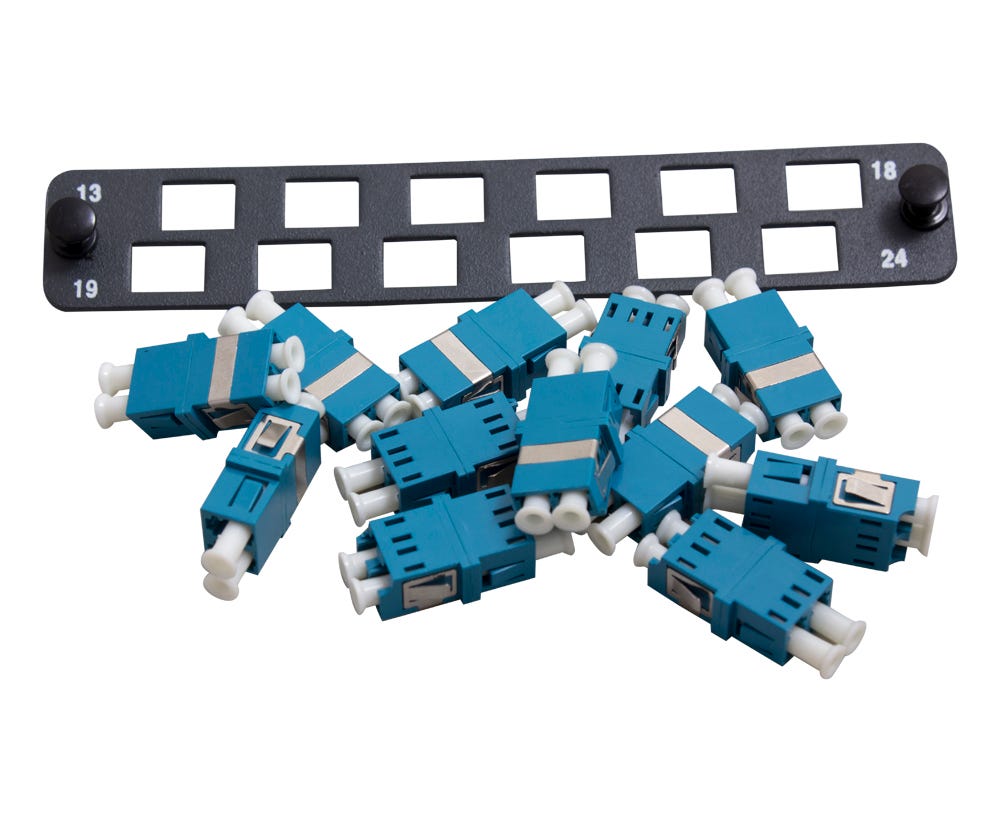

MSS Data 24 fibre flat panel kit features 12x LC Duplex thru adaptors, OM3 rating and ports labelled 13-24. Ideal for MSS wall and rack fibre enclosures.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 24-Fibre LC Duplex Flat Coupler Panel, OM3 Multimode Fibre Panel, MSS Fibre Enclosure Adaptor Panel
Technical Specifications
- Fibre Capacity: 24 fibres
- Connector Type: LC Duplex
- Number of Ports: 12
- Fibre Mode: Multimode
- Fibre Rating: OM3
- Port Labelling: 13-24
- Panel Type: Flat
- Included: 12 LC duplex thru adaptors
- Compatibility: MSS wall-mount and rack-mount fibre enclosures
- Barcode: 9318674182917
- Dimensions (H x L x W): 27mm x 159mm x 159mm
- Weight: 0.3 kg
Key Features
- Supplied with 12 LC duplex thru adaptors
- Provides capacity for up to 24 fibres through 12 duplex ports
- Ports numbered 13-24 for organised fibre identification
- OM3 aqua adaptors provide visual multimode fibre identification
- Flangeless adaptors use metal clips for panel mounting
- Compatible with MSS wall-mount and rack-mount fibre enclosures
- Modular flat-panel construction
Professional Installation Requirements
- Where installed as part of customer telecommunications cabling, installation should be completed by an appropriately qualified or ACMA-registered cabler in accordance with applicable cabling rules and the enclosure manufacturer's instructions.
Applications
- Fibre termination and cross-connection in telecommunications enclosures
- Commercial data networks and structured cabling systems
- Data centre and communications-rack fibre management
- Expansion of MSS wall-mount and rack-mount fibre enclosures
- OM3 multimode fibre link patching and administration
Standards & Compliance
- Applicable customer-cabling product requirements: AS/CA S008:2020, subject to the complete installed product and labelling arrangement
- Applicable customer-cabling installation requirements: AS/CA S009:2020
- Generic structured cabling installations may also reference AS/NZS 3080 or its current replacement/adopted standard
Environmental Benefits
- Steel panel construction is recyclable at end of service life
- Modular design allows individual panels and adaptors to be replaced or expanded without replacing the complete enclosure
- Durable passive construction can reduce replacement frequency and associated waste
- No operational electrical power is required
Warranty Information
MSS Data Solutions offers a conditional 25-year project warranty covering MSS Data Solutions products at the original installation site. Eligibility requires an approved warranty application, compliant installation, link testing and use of qualifying MSS Data Solutions products throughout the link.
Available Now
Available through MSS Data Solutions and authorised Australian electrical, data and communications distributors.
