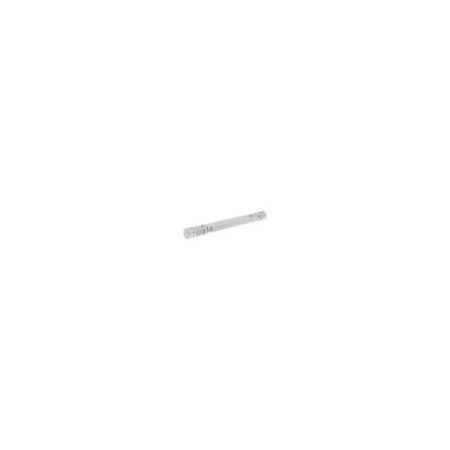

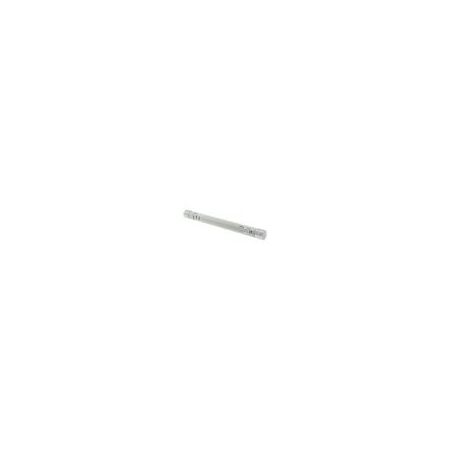

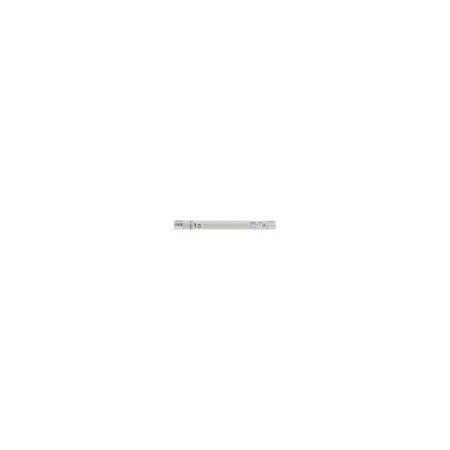

24KV 10AMP Full Range Fuse | 35.5kA Breaking Capacity | Clip-in Mounting | KEMA Certified by Eaton
The 24KV 10AMP full range fuse offers reliable overcurrent protection with a breaking capacity of 35.5kA and is rated for 24kV AC voltage. Ideal for medium voltage electrical systems, this KEMA certified fuse features a clip-in mounting method for easy installation, ensuring safety and efficiency in industrial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 24KV 10AMP Full Range Fuse | 35.5kA Breaking Capacity | Clip-in Mounting | KEMA Certified by Eaton
Brand: Eaton
SKU: 24FDIHA10
Alternatively Known As: Medium Voltage Air Fuse, 24kV 10A Fuse, Full Range BS Air Fuse, Eaton Bussmann Fuse
Technical Specifications
- Amperage Rating: 10 A
- Voltage Rating: 24 kV AC
- Breaking Capacity: 35.5 kA
- Performance Category: Full-range according to IEC 60282-1
- Resistance: 205 ohms
- Frequency: 50 Hz
- Construction Size: 51 x 565 mm
- Mounting Method: Clip-in
- Used with: A3354710 Fuse clip
- Certification: KEMA Certified
- Standard: British Standard BS 2692-1
- Dimensions (H x L x W): 51mm x 565mm x 51mm
- Weight: 2.573 kg
Key Features
- Full-range fuse providing comprehensive protection
- Rated for 10 A and 24 kV AC voltage
- Breaking capacity of 35.5 kA
- KEMA Certified for quality assurance
- Clip-in mounting method for easy installation
- Includes striker for fuse operation indication
Professional Installation Requirements
- Installation must be performed by a qualified electrical professional to ensure compliance with safety standards and proper fuse operation.
Applications
- Medium voltage electrical systems requiring reliable overcurrent protection
- Industrial electrical installations
- Power distribution networks
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enhances electrical system safety, reducing risk of fire and equipment damage
- Durable design minimizes waste and replacement frequency
Warranty Information
Warranty details available upon request from Eaton; typically includes coverage against manufacturing defects.
Available Now
The Eaton 24KV 10AMP 2" Full Range Fuse is available now for immediate purchase. Ideal for medium voltage electrical protection in industrial and power distribution applications.
