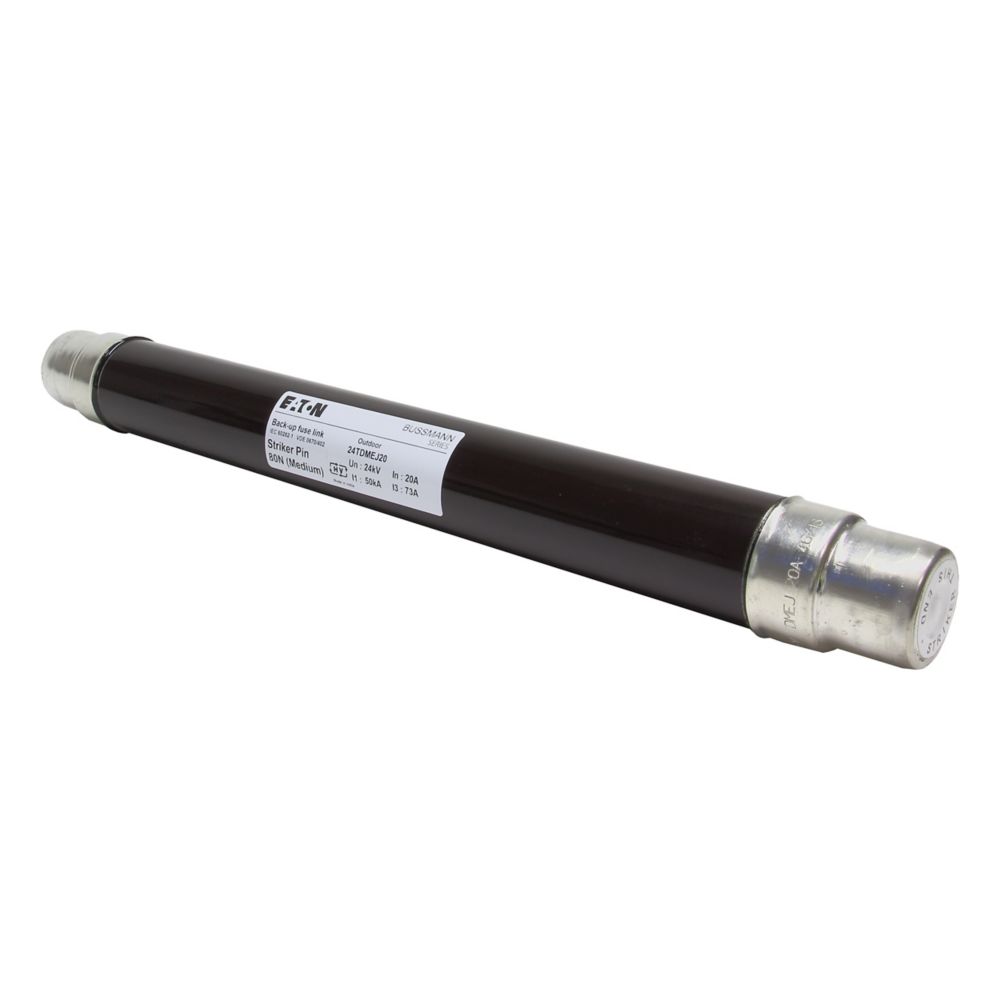

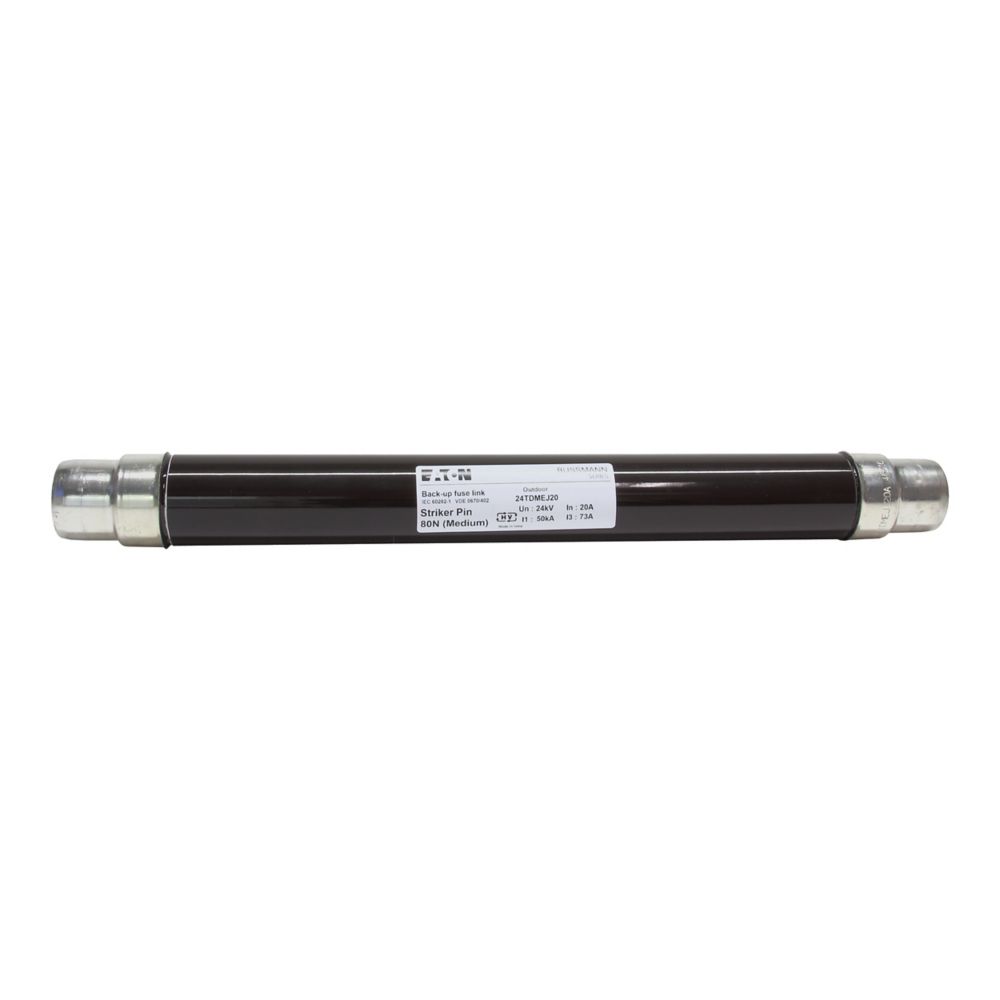

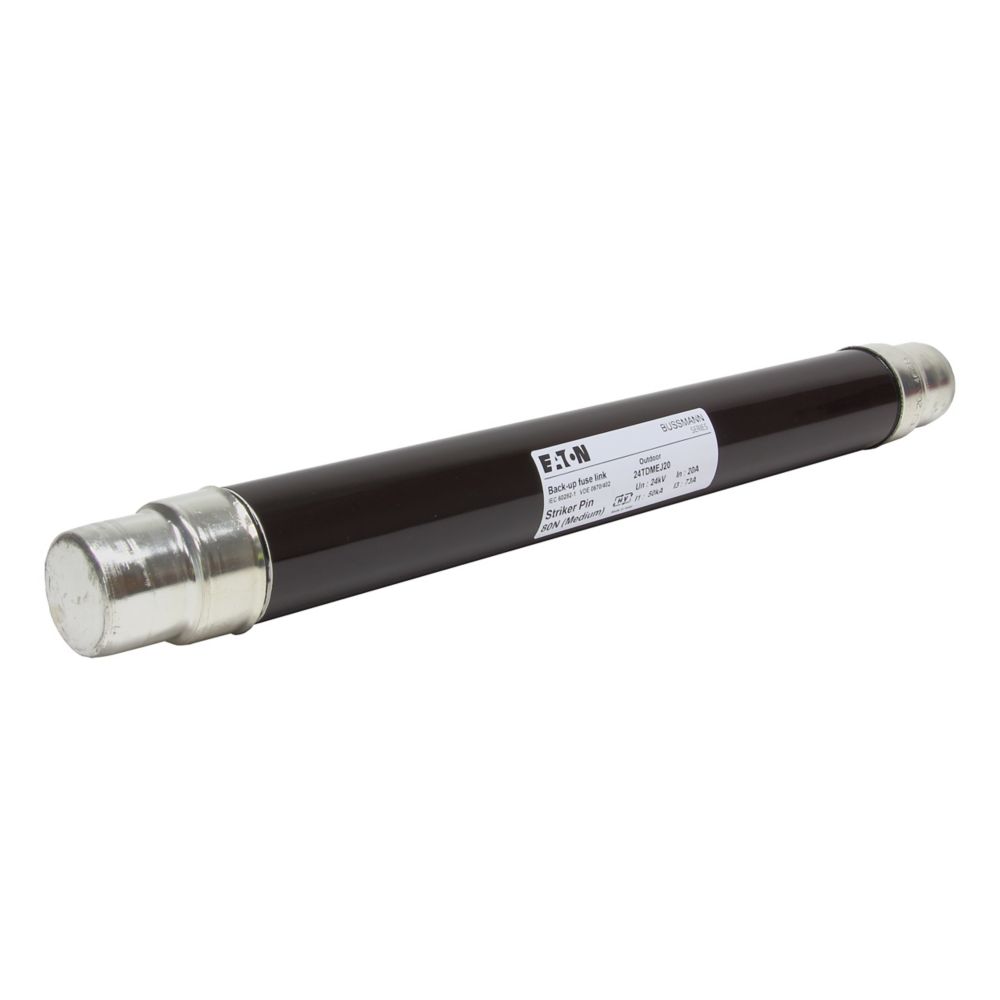

24KV 20Amp 2" DIN Resin Seal Fuse | 50 kA Breaking Capacity | Bolt-on Construction | Brown | @Each by Eaton
The 24KV 20Amp 2" DIN Resin Seal Fuse is designed for medium voltage transformer protection, featuring a robust 50 kA breaking capacity and a bolt-on construction for easy installation. Ideal for both indoor and outdoor use, this fuse ensures safety and compliance with industry standards, making it a reliable choice for electrical professionals.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 24KV 20Amp 2" DIN Resin Seal Fuse | 50 kA Breaking Capacity | Bolt-on Construction | Brown | @Each by Eaton
Brand: Eaton
SKU: 24TDMEJ20
Alternatively Known As: Medium Voltage DIN Fuse, Resin Seal Fuse 24kV, 20 Amp DIN Fuse, Transformer Protection Fuse
Technical Specifications
- Amperage Rating: 20 A
- Voltage Rating: 24 kV AC
- Fuse Size: 51 x 442 mm
- Breaking Capacity: 50 kA
- Fuse Indicator: With Striker
- Installation Technique: Air
- Performance Category: Back-up
- Rated Frequency: 50 Hz
- Resistance: 62.4 Ohms
- Watt Losses: 38 W
- Fuse Diameter: 51 mm
- Construction Type: Bolt-on
- Mounting Method: Clip-in
- Class: Class back-up
- Barrels: 1
- Pre arc (I2T): 5.2 x 100
- Color: Brown
- Interrupt Rating: 50 kAIC
- Fuse Type: TDMEJ
- Dimensions (H x L x W): 54mm x 442mm x 51mm
- Weight: 2.3 kg
Key Features
- Medium voltage fuse-link rated at 20 A and 24 kV AC
- Back-up fuse with striker for indication
- Bolt-on construction with clip-in mounting
- Breaking capacity of 50 kA
- Suitable for transformer protection
- Complies with DIN 43625, VDE 0670-4, IEC 60282-1 standards
Professional Installation Requirements
- Installation should be performed by a qualified electrical professional experienced with medium voltage systems to ensure safety and compliance.
Applications
- Primary side transformer protection
- Indoor or outdoor use for medium voltage electrical systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enhances electrical system safety reducing risk of faults and environmental damage
- Durable resin seal construction supports long service life minimizing waste
Warranty Information
Not applicable
Available Now
The Eaton 24KV 20Amp 2" DIN Resin Seal Fuse is available for immediate purchase, ideal for transformer protection in medium voltage electrical installations.
