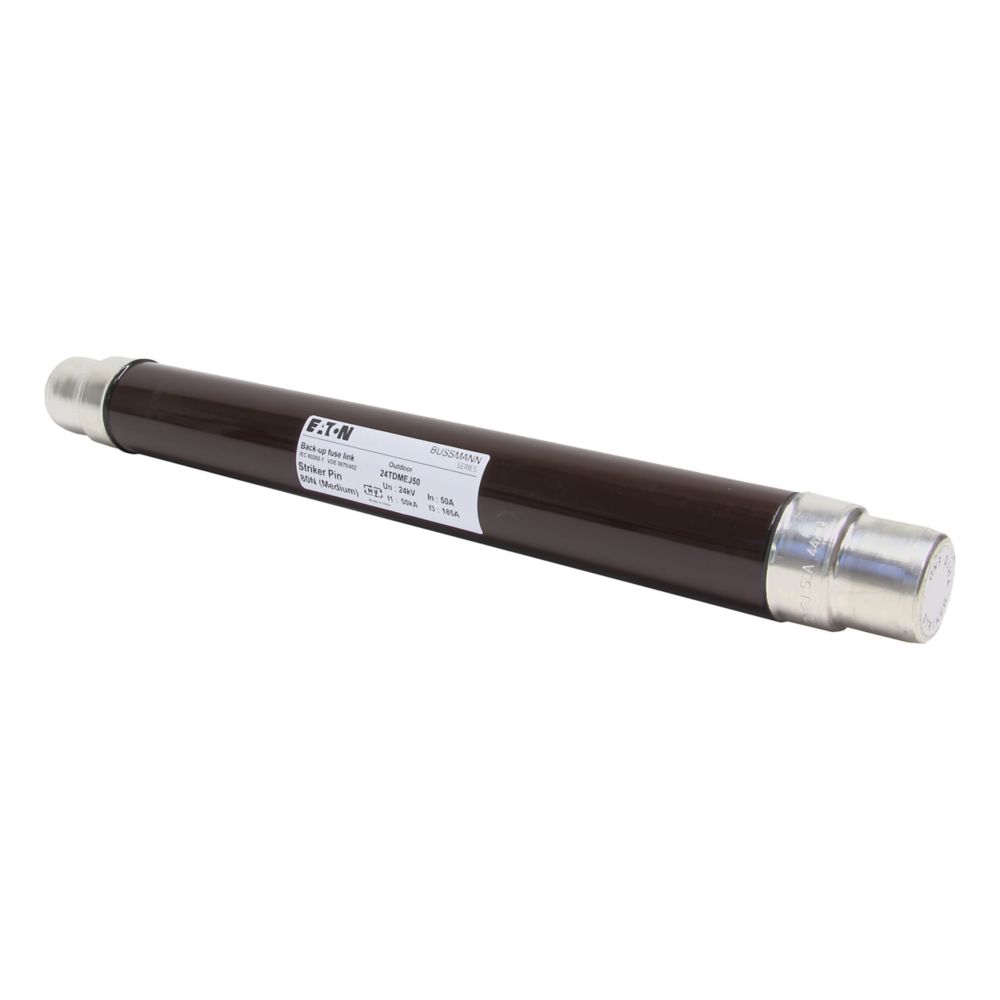

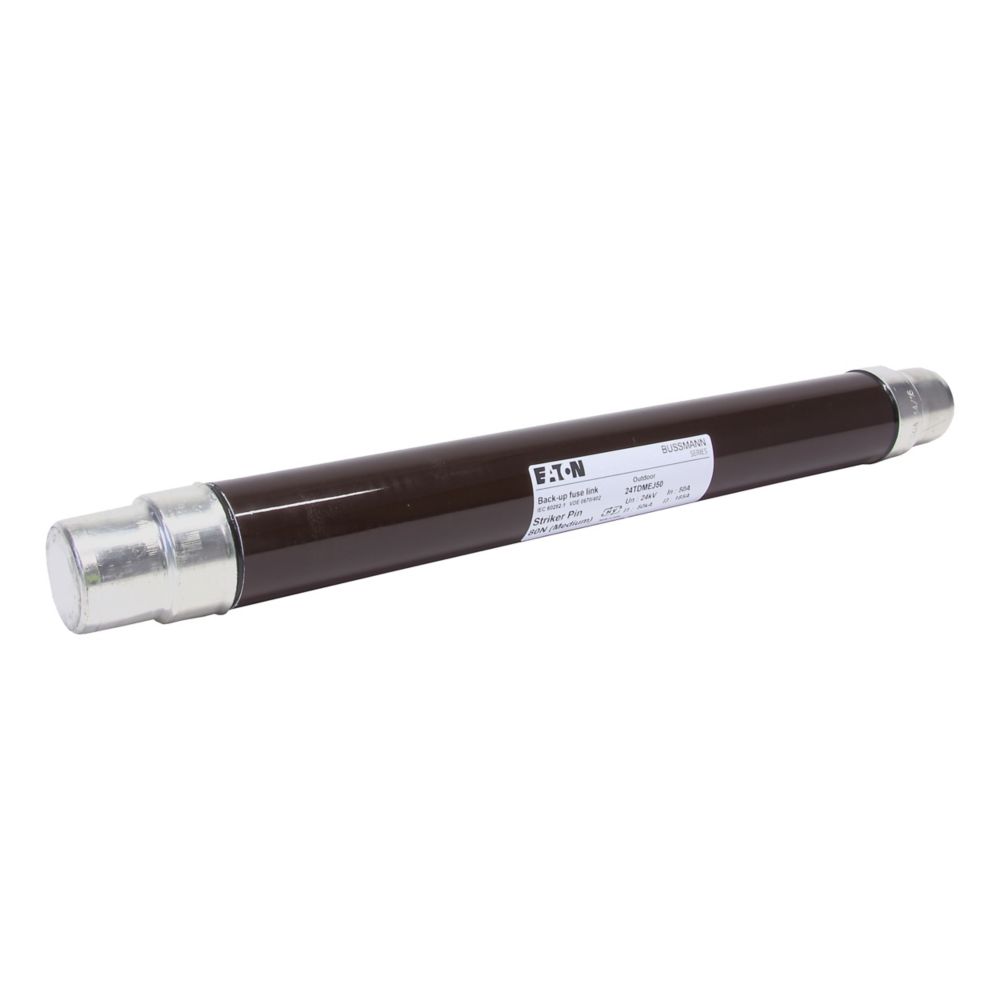

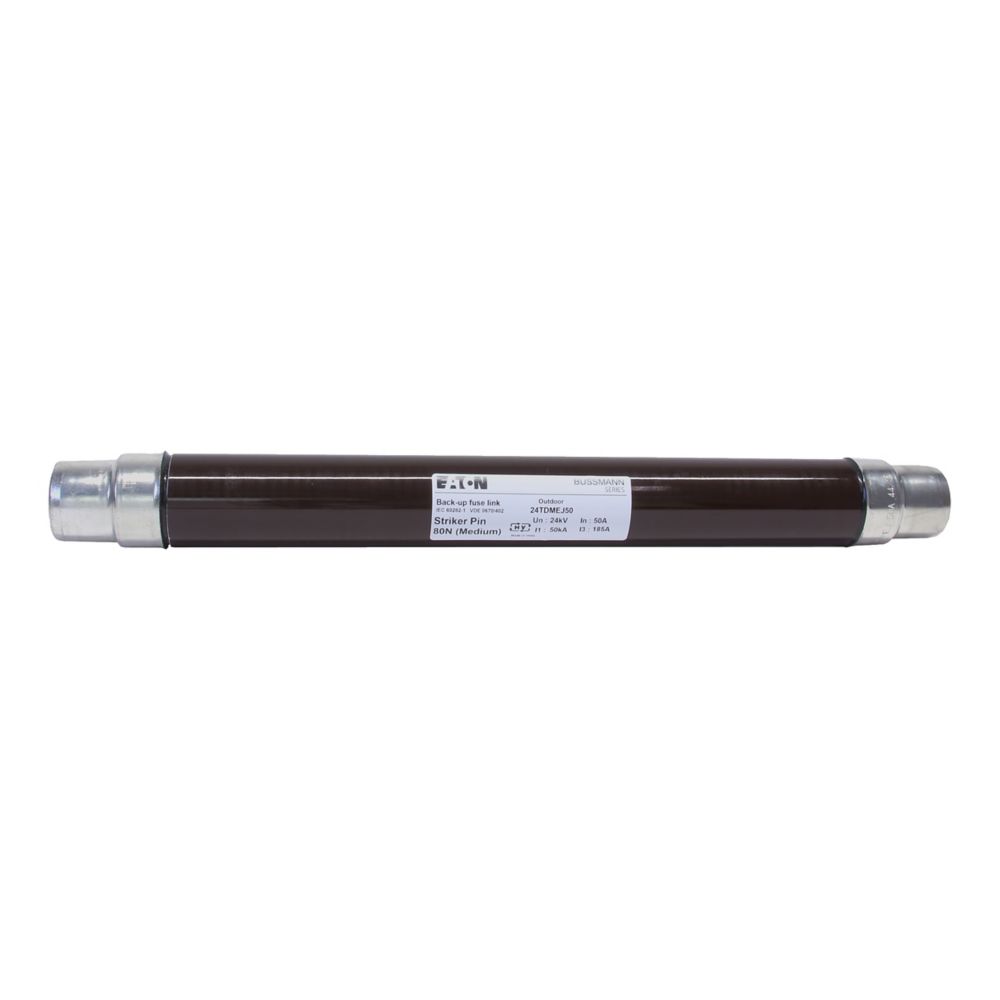

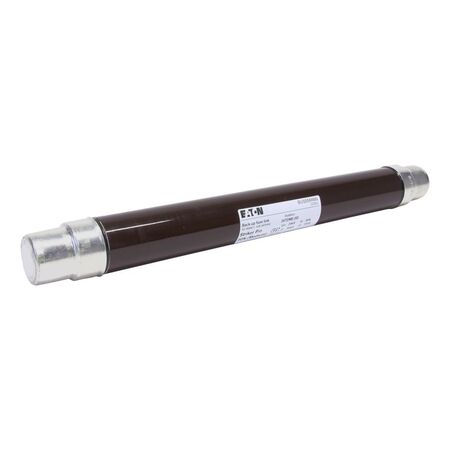

24KV 50Amp 2" DIN Resin Seal Fuse | 50 kA Breaking Capacity | Bolt-on Construction | by Eaton

BRAND: Eaton
SKU: 24TDMEJ50
$272.30 List price: $339.30
+
The 24KV 50Amp 2" DIN Resin Seal Fuse is designed for medium voltage transformer protection, featuring a robust 50 kA breaking capacity and a bolt-on construction for easy installation. Ideal for both indoor and outdoor applications, this fuse ensures safety and reliability in electrical systems, making it a perfect choice for professionals seeking durable and effective solutions.

Product Name/Title: 24KV 50Amp 2" DIN Resin Seal Fuse | 50 kA Breaking Capacity | Bolt-on Construction | by Eaton

Brand: Eaton

SKU: 24TDMEJ50

Alternatively Known As: Medium Voltage DIN Fuse, Resin Seal Fuse 24kV, 50 Amp DIN Fuse, Transformer Protection Fuse

Technical Specifications
  • Voltage Rating: 24 kV AC
  • Current Rating: 50 A
  • Fuse Size: 51 x 442 mm
  • Breaking Capacity: 50 kA
  • Fuse Type: TDMEJ
  • Fuse Indicator: With Striker
  • Rated Frequency: 50 Hz
  • Resistance: 27 Ohms
  • Watt Losses: 98 W
  • Construction Type: Bolt-on
  • Mounting Method: Clip-in
  • Number of Barrels: 1
  • Pre-arc (I2T): 2.8 x 1000
  • Color: Brown
  • Installation Technique: Air
  • Performance Category: Back-up
  • Dimensions (H x L x W): 54mm x 442mm x 51mm
  • Weight: 2.3 kg
Key Features
  • Medium voltage fuse-link rated at 50 A and 24 kV AC
  • Back-up fuse with striker for indication
  • Bolt-on construction with clip-in mounting
  • Breaking capacity of 50 kA
  • Designed for transformer protection
  • Suitable for indoor and outdoor use
Professional Installation Requirements
  • Installation should be performed by a qualified electrical professional to ensure compliance with safety standards and proper fuse operation.
Applications
  • Primary side transformer protection
  • Indoor or outdoor use for medium voltage electrical systems
Standards & Compliance
  • Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Enhances electrical system safety reducing risk of faults and environmental hazards
  • Durable resin seal construction minimizes environmental contamination
Warranty Information

Not Applicable

Available Now

The Eaton 24KV 50Amp 2" DIN Resin Seal Fuse (24TDMEJ50) is available for immediate purchase, ideal for medium voltage transformer protection applications.
