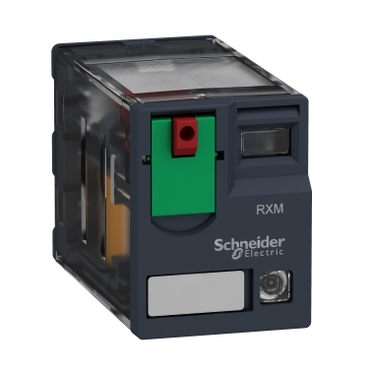

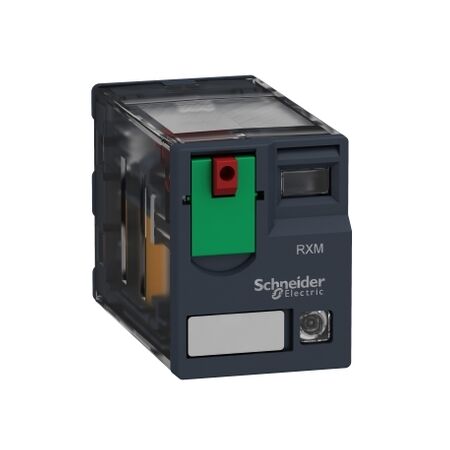

24V AC Plug-In Relay | Miniature Design | 12A Contact Rating | LED Indicator | @Each of 1 | by Clipsal
The 24V AC Plug-In Relay is a miniature control relay designed for easy installation and replacement in industrial automation and control panels. With a robust 12A contact rating and integrated LED indicator for coil status, it ensures reliable performance in various applications, including HVAC systems and lighting control. Built for longevity with a mechanical life of 10 million operations, this relay is perfect for professionals seeking efficiency and reliability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 24V AC Plug-In Relay | Miniature Design | 12A Contact Rating | LED Indicator | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHRXM2AB2B7
Alternatively Known As: 24V AC Plug-In Relay, Harmony RXM Relay, SCHRXM2AB2B7, Miniature Control Relay, Clipsal Plug-In Relay
Technical Specifications
- Coil Voltage: 24V AC
- Contact Configuration: 2 C/O (DPDT)
- Contact Rating: 12A at 250V AC/30V DC
- Mechanical Life: 10,000,000 operations
- Electrical Life: 100,000 operations at rated load
- LED indicator for coil status
- Operating Temperature: -40°C to +55°C
- Mounting: Plug-in socket
- Dielectric Strength: 2,500V AC (1 min) between coil and contacts
- Dimensions (H x L x W): 35mm x 28mm x 21mm
- Weight: 0.1 kg
Key Features
- Miniature plug-in relay for easy installation and replacement
- 2 changeover (C/O) contacts for versatile switching
- 24V AC coil voltage
- 12A contact rating for robust performance
- Integrated LED indicator for coil status
- Compact design suitable for space-constrained panels
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure correct wiring and safety compliance.
Applications
- Industrial automation panels
- Building management systems
- Control cabinets
- Lighting control
- HVAC systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Long operational life reduces replacement frequency and waste
- Low power consumption coil for energy efficiency
- RoHS compliant materials minimize environmental impact
Warranty Information
12 months warranty against manufacturing defects.
Available Now
The Clipsal Harmony RXM Miniature Plug-In Relay 24V AC (SCHRXM2AB2B7) is available for immediate purchase. Ideal for industrial automation, control panels, and building management systems.
