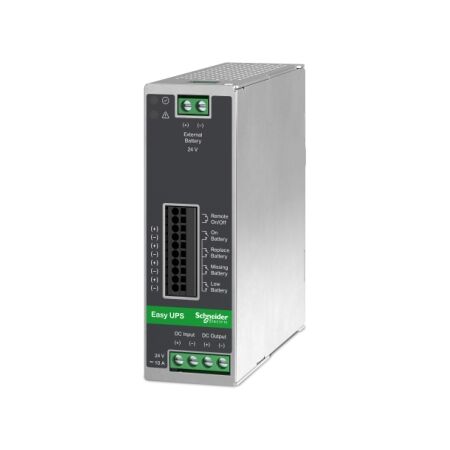

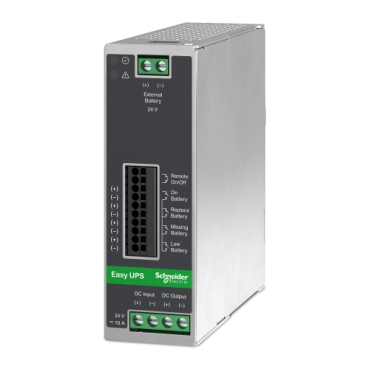

24V DC 10A Din Rail UPS | Automatic Battery Switchover | LED Status Indicators | Overload Protection | @Pack of 1 | by Clipsal
The 24V DC 10A Din Rail UPS is designed for reliable power backup in industrial automation and building management systems. With automatic battery switchover and LED status indicators, it ensures uninterrupted operation for critical equipment. Ideal for security and access control panels, this UPS offers overload and short-circuit protection, making it a dependable choice for professionals.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 24V DC 10A Din Rail UPS | Automatic Battery Switchover | LED Status Indicators | Overload Protection | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHBVS240XDPDR
Alternatively Known As: Din Rail UPS 24V, 24V DC Uninterruptible Power Supply, Industrial DC UPS, Clipsal SCHBVS240XDPDR, 24V 10A UPS
Technical Specifications
- Input Voltage: 230V AC
- Output Voltage: 24V DC
- Output Current: 10A
- Mounting: DIN rail
- Battery Type: Sealed lead-acid (external, not included)
- Automatic battery switchover
- LED status indicators
- Overload and short-circuit protection
- Operating temperature: -10°C to +50°C
- Dimensions (H x L x W): 130mm x 125mm x 125mm
- Weight: 1.2 kg
Key Features
- Uninterruptible power supply for 24V DC loads up to 10A
- Din rail mountable for easy integration into control panels
- Automatic switch to battery backup during mains failure
- LED status indicators for power and battery status
- Overload and short-circuit protection
- Maintenance-free sealed lead-acid battery compatibility
Professional Installation Requirements
- Installation by a licensed electrician is required to ensure compliance with electrical safety standards and correct integration into control panels.
Applications
- Industrial automation systems
- Building management systems
- Security and access control panels
- Process control equipment
- Telecommunications infrastructure
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Reduces downtime and waste by protecting sensitive equipment from power interruptions
- Supports energy-efficient operation of automation systems
Warranty Information
2-year manufacturer warranty covering defects in materials and workmanship.
Available Now
The Clipsal 24V DC 10A Din Rail UPS (SCHBVS240XDPDR) is available for immediate purchase. Ideal for industrial automation, building management, and security systems requiring reliable DC power backup.
