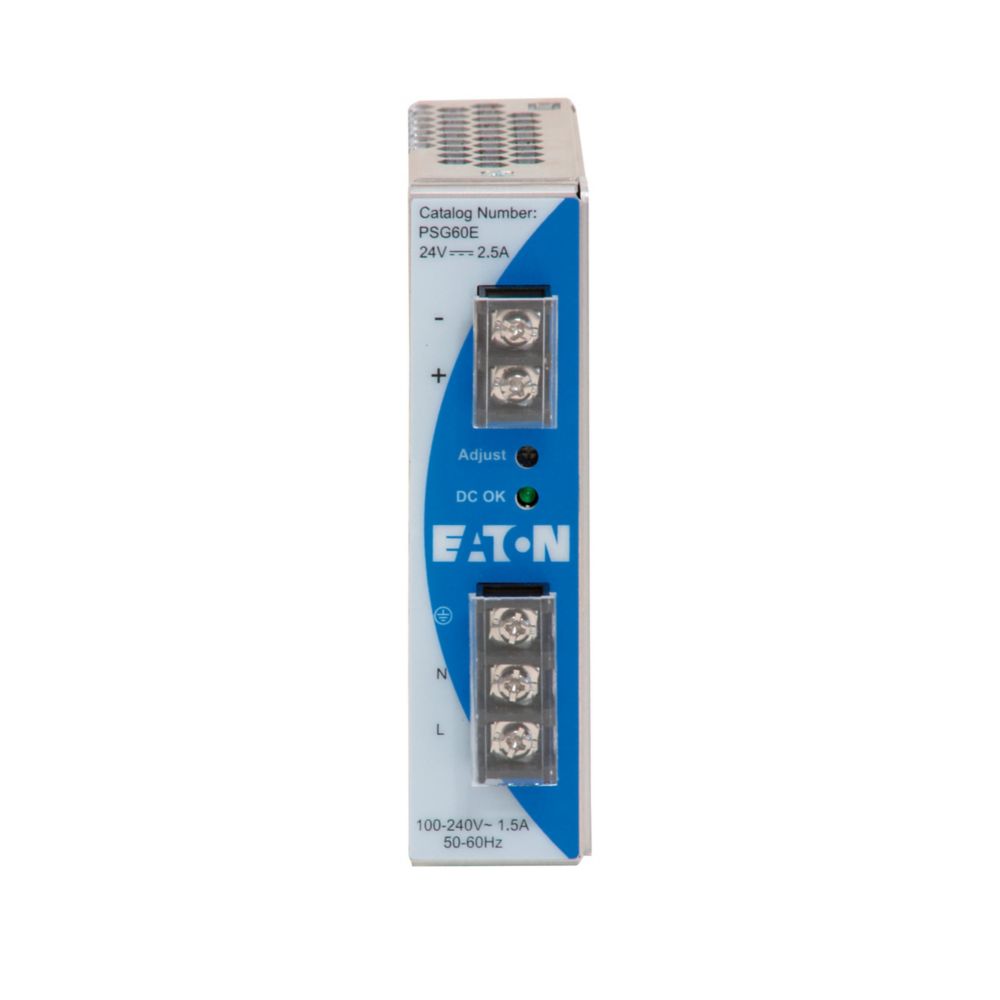

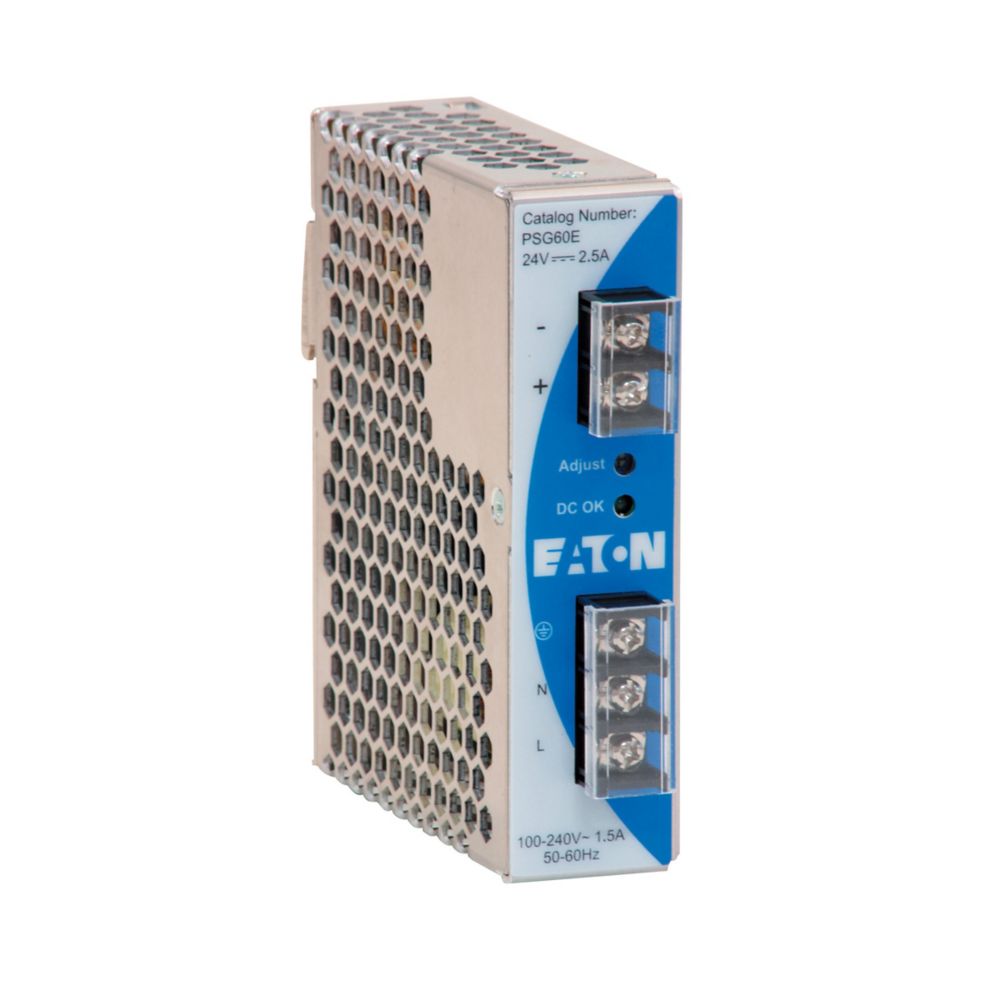

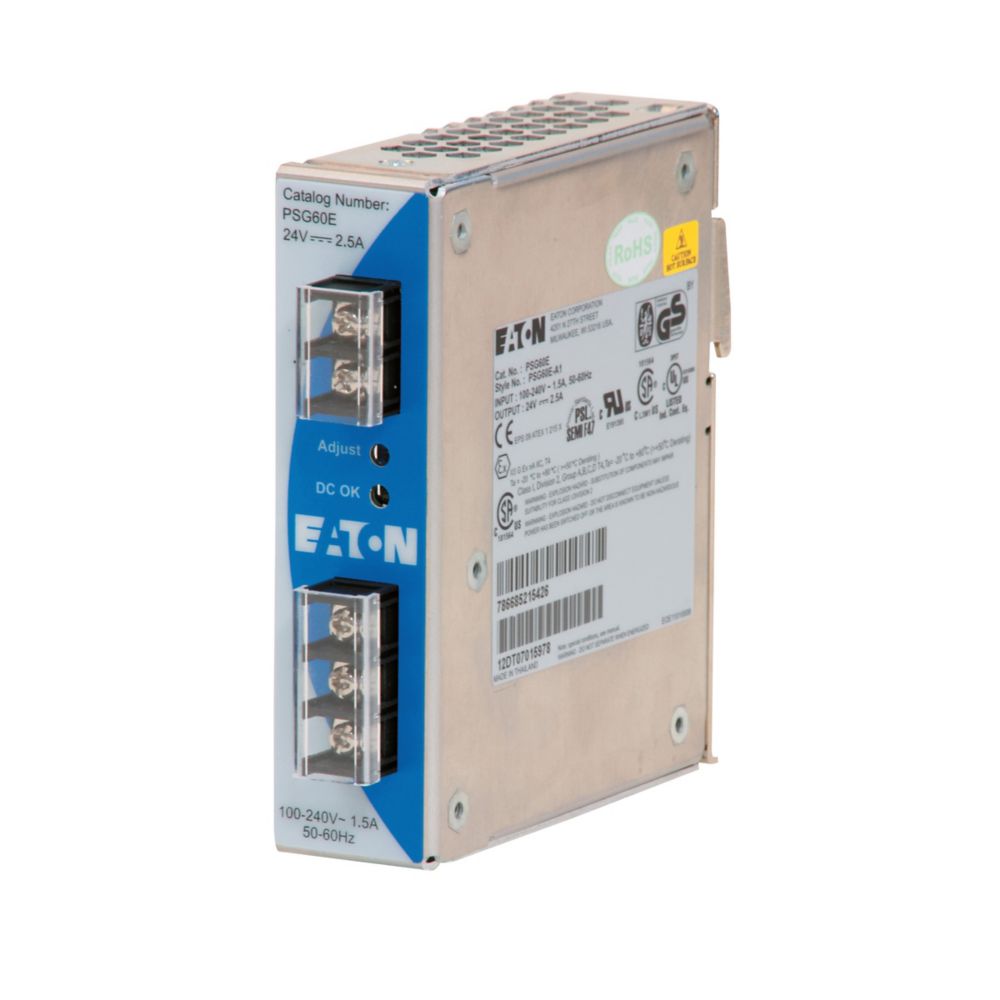

24V DC Power Supply 1 Phase | 60W Output | Heavy-Duty Screw Terminals | by Eaton
The 24V DC Power Supply 1 Phase delivers a reliable 60W output, perfect for industrial control systems and automation equipment. Designed with heavy-duty screw terminals for secure connections and a durable plastic enclosure, it operates efficiently in temperatures ranging from -20°C to 75°C. Ideal for machine building and factory automation, this power supply ensures safety with varistor transient surge protection.
Sign in
Please login to continue to your account.
Product Name/Title: 24V DC Power Supply 1 Phase | 60W Output | Heavy-Duty Screw Terminals | by Eaton
Brand: Eaton
SKU: PSG60E24SP
Alternatively Known As: Eaton 24V DC Power Supply, PSG60E24SP Power Supply, 1 Phase 24V Power Supply, Industrial Power Supply 24V 60W
- Output Voltage: 24 V DC
- Power Consumption: 60 W
- Phase: Single-phase
- Enclosure Material: Plastic
- Terminals: Heavy-duty screw
- Operating Temperature: -20°C to 75°C
- Surge Protection: Varistor transient surge voltage protection
- Safety Class: Class 1 with ground connection
- Certifications: UL 508, EN Listed, cUL, CSA, IEC Rated, cULus/UL 60950-1
- Compliance: RoHS, German Safety, CE Marked
- Dimensions (H x L x W): 51mm x 140mm x 165mm
- Weight: 0.43 kg
- Single-phase 24V DC output power supply
- 60W power consumption
- Heavy-duty screw terminals for secure connections
- Plastic enclosure for durability
- Varistor transient surge voltage protection
- Safety class 1 with ground connection
- Operating temperature range from -20°C to 75°C
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper connection.
- Industrial control systems
- Automation equipment
- General purpose power supply for electronic devices
- Machine building and factory automation
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
- RoHS compliant reducing hazardous substances
- Energy-efficient design minimizes power consumption
One (1) year from the date of installation or eighteen (18) months from the date of shipment, whichever occurs first, as per Eaton Selling Policy 25-000.
The Eaton PSG60E24SP 1 Phase 24VDC 60W Power Supply with Screw Terminals is available for immediate purchase, ideal for industrial and automation power supply applications.
