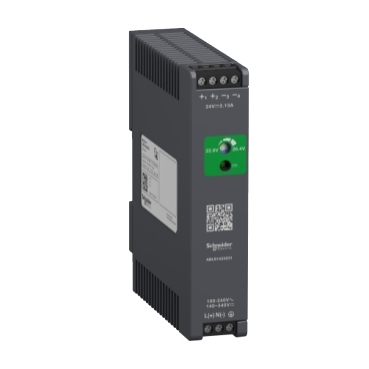

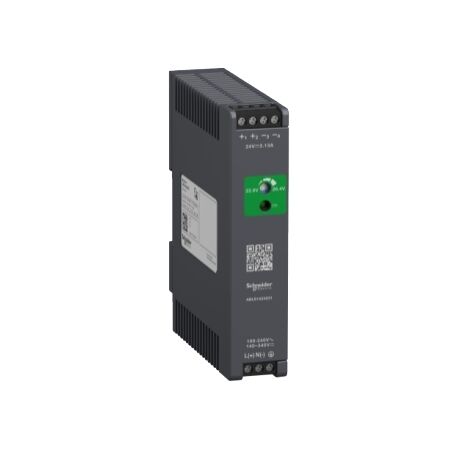

24V DIN Rail Power Supply | 3.1A Output | Optimized Efficiency | Short-Circuit Protection | @Pack of 1 | by Clipsal
The 24V DIN Rail Power Supply delivers a reliable 3.1A output, optimized for industrial automation and control panels. With a compact design and high efficiency exceeding 90%, it ensures minimal energy consumption and heat generation. Ideal for building management systems, this power supply features short-circuit and overload protection, making it a safe choice for your electronic devices.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 24V DIN Rail Power Supply | 3.1A Output | Optimized Efficiency | Short-Circuit Protection | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHABLS1A24031
Alternatively Known As: 24V DIN Rail Power Supply, Clipsal 24V 3.1A Power Supply, SCHABLS1A24031, Industrial Power Supply 24V
Technical Specifications
- Input Voltage: 100-240V AC, 1-phase
- Output Voltage: 24V DC
- Output Current: 3.1A
- Mounting: DIN rail
- Operating Temperature: -25°C to +70°C
- Protection: Short-circuit, overload, overvoltage
- Efficiency: >90%
- Ripple: <50mV
- Certifications: CE, RoHS
- Dimensions (H x L x W): 100mm x 120mm x 40mm
- Weight: 0.35 kg
Key Features
- Optimized single-phase power supply
- 24V DC output voltage
- 3.1A output current
- Compact DIN rail mount design
- High efficiency and reliability
- Short-circuit and overload protection
Professional Installation Requirements
- Installation by a licensed electrician is required to ensure compliance with electrical safety standards and optimal performance.
Applications
- Industrial automation panels
- Building management systems
- Control cabinets
- Process control equipment
- General 24V DC power supply for electronic devices
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- High efficiency reduces energy consumption and heat generation.
- Long operational life minimizes electronic waste.
- RoHS compliant, reducing hazardous substances.
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal Power Supply 24V 3.1A 1PH Optimized (SCHABLS1A24031) is available for immediate purchase. Ideal for industrial automation, control panels, and building management systems.
