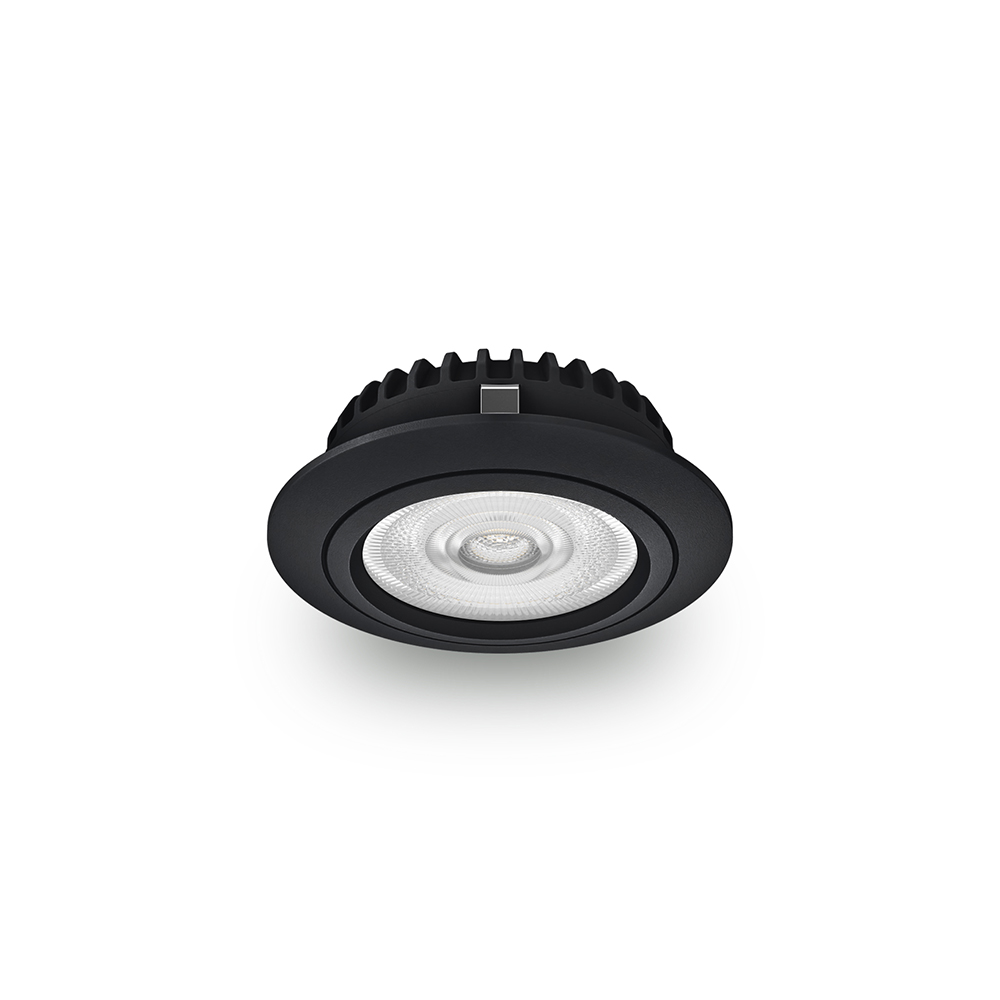

3W 24 Volt DC LED Shelf Light | Dual CCT | IP54 Rated | Dimmable | by atom
The 3W 24 Volt DC LED Shelf Light offers dual color temperature options of Warm White (3000K) and Cool White (4000K), making it perfect for both residential and commercial applications. With a high efficiency of 100 lm/W and an IP54 rating for dust and water protection, this recessed light is designed for long-lasting performance, ensuring over 50,000 hours of illumination. Ideal for under cabinet and display lighting, it provides customizable ambiance with its dimmable feature.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: LED Shelf Light Dual CCT, 24V LED Shelf Light, Recessed LED Shelf Light, Dual Colour Temperature LED Light
Technical Specifications
- Power Wattage: 3W
- Input Voltage: 24V DC
- Colour Rendering Index (CRI): >80
- Macadam Steps: 5-step MacAdam Ellipse
- Beam Angle: 70°
- LED Lifetime: >50,000 hours (TM-21 Reported)
- Colour Temperature: Warm White (3000K) and Cool White (4000K)
- IP Rating: IP54 Front Face Only
- Installation Type: Recessed
- Dimmable: Yes
- Flex & Plug or Lead Length: 2000 mm
- Body Material: Aluminium
- Product Finish: Powder Coated
- Working Temperature Range: 0 to 40 °C
- Driver Included: No
- Dimensions (H x L x W): 20mm x 30mm x 300mm
- Weight: 0.3 kg
Key Features
- Dual CCT with Warm White (3000K) and Cool White (4000K) options
- High total system efficiency of 100 lm/W
- IP54 rated front face for protection against dust and water splashes
- Fixed adjustability with recessed installation
- Dimmable for customizable lighting ambiance
- Long LED lifetime of over 50,000 hours
- Colour Rendering Index (CRI) greater than 80 for accurate colour representation
- Beam angle of 70° for focused illumination
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical standards and optimal performance.
Applications
- Residential: Under cabinet and shelf lighting
- Commercial: Display and accent lighting in retail and hospitality
- General: Recessed lighting for indoor environments requiring dual colour temperature
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 60598.1
- AS/NZS 60598.2.2
Environmental Benefits
- Energy-efficient LED technology reduces power consumption
- Long LED lifespan minimizes waste and replacement frequency
- Low heat emission contributes to reduced cooling energy needs
Warranty Information
Standard manufacturer warranty applies. Please refer to Atom's warranty policy for details.
Available Now
The Atom 3W 24 Volt DC Constant Voltage LED Shelf Light is available now for immediate purchase. Ideal for residential and commercial shelf and display lighting applications.
