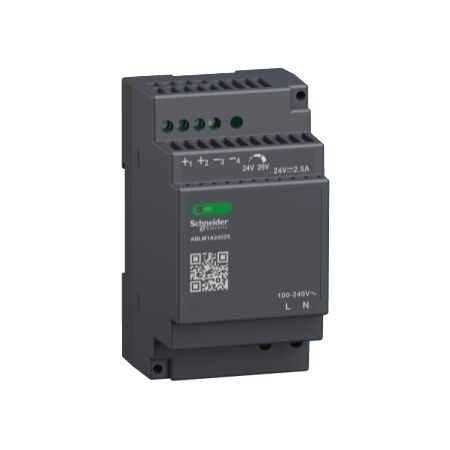

24V Modular Power Supply | 2.5A Output | DIN Rail Mount | Short-Circuit Protection | @Pack of 1 | by Clipsal
The 24V Modular Power Supply delivers a stable 2.5A output, perfect for industrial automation and control applications. Designed for easy DIN rail mounting, it features short-circuit, overload, and overvoltage protection, ensuring safety and reliability. With high efficiency and low standby power consumption, this power supply is ideal for both commercial and residential electrical installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 24V Modular Power Supply | 2.5A Output | DIN Rail Mount | Short-Circuit Protection | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHABLM1A24025
Alternatively Known As: 24V DIN Rail Power Supply, Modular Power Supply 24V 2.5A, Clipsal SCHABLM1A24025, Industrial Power Supply 24V
Technical Specifications
- Input Voltage: 100-240V AC, 50/60Hz
- Output Voltage: 24V DC
- Output Current: 2.5A
- Mounting: DIN rail
- Protection: Short-circuit, overload, overvoltage
- Operating Temperature: -20°C to +60°C
- Efficiency: >85%
- Ripple & Noise: <120mVp-p
- Dimensions (H x L x W): 90mm x 100mm x 35mm
- Weight: 0.25 kg
Key Features
- Modular DIN rail mount design for easy installation
- Delivers stable 24V DC output at 2.5A
- Short-circuit, overload, and overvoltage protection
- High efficiency and low standby power consumption
- Compact size suitable for space-constrained panels
Professional Installation Requirements
- Installation by a licensed electrician is required to ensure compliance with electrical safety standards.
Applications
- Industrial automation panels
- Building management systems
- Control cabinets
- Commercial and residential electrical installations
- LED lighting systems
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- High efficiency reduces energy consumption and heat generation
- Long operational life minimizes electronic waste
- Complies with RoHS for reduced hazardous substances
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal Power Supply 24V 2.5A Modular SCHABLM1A24025 is available for immediate purchase. Ideal for industrial, commercial, and residential automation and control applications.
