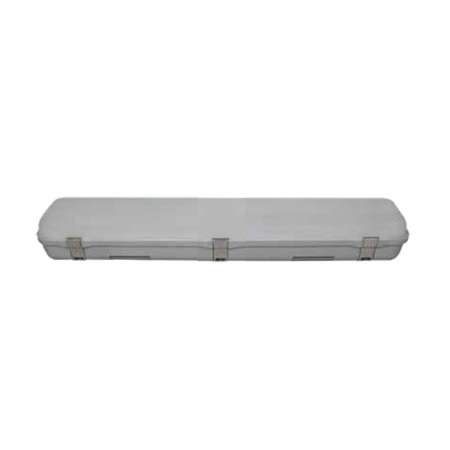

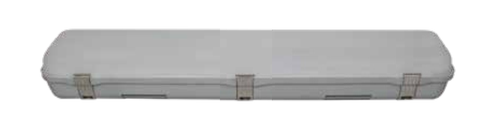

24V Weatherproof Emergency Batten | IP65 & IK10 | 50,000h LED by Lawell Lightning

BRAND: Lawel Lighting
SKU: LW24vB03-E
$115.20 List price: $150.20
+ −
30 Days Return Delivery Options
24V weatherproof emergency batten with IP65 and IK10 ratings—ideal for construction and building sites. Built for robust, flexible illumination, with 50,000-hour LED lifespan and easy plug-and-play setup.

Product Name/Title: 24V 2' Weatherproof Emergency Batten

Brand: Lawell Lightning

SKU: LW24vB03-E

Alternatively Known As: ['24V Temporary Batten', '24V Site Light', '24V Weatherproof Batten', 'Temporary Construction Batten', 'Emergency Site Batten']

Technical Specifications
  • Input Voltage: 24V
  • Wattage: 18W (normal) / 6W (emergency)
  • IP Rating: IP65
  • Impact Rating: IK10
  • Mounting Type: Suspension or surface mount
  • Operating Temperature: -10℃ to 40℃
  • LED Lifetime: 50,000 hours

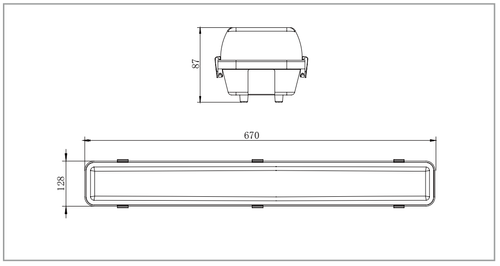

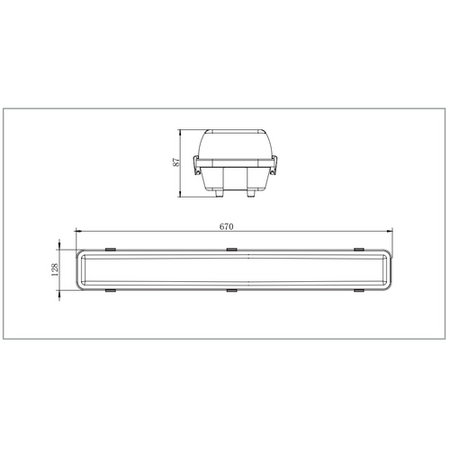

  • Dimensions (H x L x W): 72mm x 670mm x 100mm
  • Weight: 1.5 kg
Key Features
  • Scalable and flexible installation for changing site requirements
  • 24V flex and IP65 plug for simple plug and play setup
  • Energy efficient, 50,000 hours long-life LED
  • IP65 weatherproof rating for outdoor and harsh environments
  • IK10 impact rating for high durability
  • Suspension or surface mount options
Professional Installation Requirements
  • Installation should be performed by a qualified electrician to ensure compliance with site safety and AS/NZS 3012 standards.
Applications
  • Construction sites: Temporary lighting for egress routes and work areas
  • Building sites: Flexible and scalable lighting during construction phases
  • Industrial maintenance: Areas requiring temporary, weatherproof illumination
Standards & Compliance
  • Complies with AS/NZS 3012 for electrical installations on construction and demolition sites
Environmental Benefits
  • Energy-efficient LED reduces power consumption and carbon footprint
  • Long lifespan minimizes waste and replacement frequency
Warranty Information

3 years warranty against manufacturing defects.

Available Now

Available for immediate purchase. Ideal for temporary lighting on construction and building sites requiring robust, weatherproof, and flexible illumination.

Lighting Requirement Calculator






This calculator follows relevant Australian standards to ensure reliable and compliant performance. It provides an estimated recommendation based on user inputs.
Users must verify specifications before purchasing.
