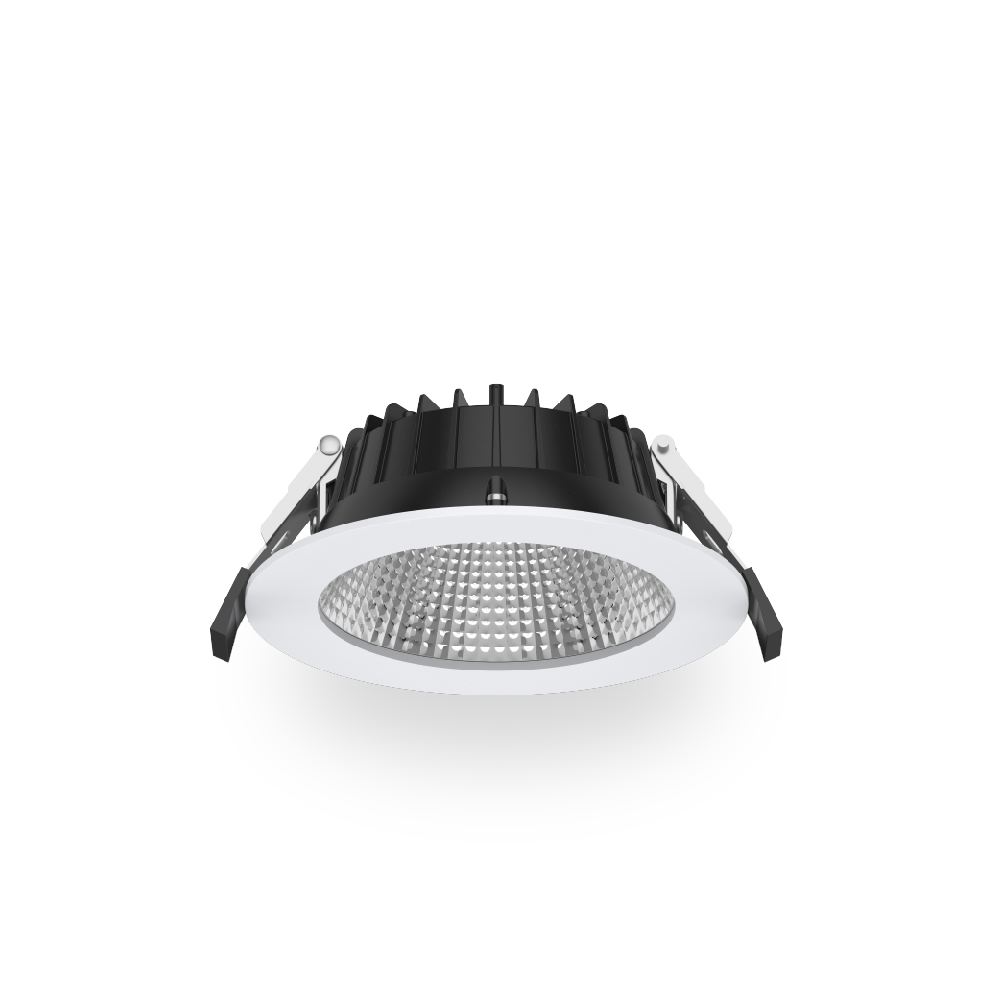

24W LED Downlight with Dimmable Driver | Tri-CCT | IP44 Rated | 60° Beam Angle | by atom
The 24W LED downlight with dimmable driver offers versatile Tri-CCT color temperature options (3000K, 4000K, 5700K) for tailored lighting in any space. With an IP44 rating for moisture resistance and a 60° beam angle, it's perfect for both residential and commercial applications, ensuring high efficiency and long-lasting performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: LED recessed downlight, tri-color temperature LED downlight, dimmable LED ceiling light, white LED downlight
Technical Specifications
- Power: 24W
- Input Voltage: 230Vac (216-253Vac range)
- Input Frequency: 50 Hz
- Driver Type: Dimmable (Phase cut), constant current
- LED Voltage: 36 V
- LED Current: 600 mA
- Beam Angle: 60°
- Color Temperatures: 3000K (Warm White), 4000K (Cool White), 5700K (Daylight)
- Luminous Output: 2770 lm (Warm White), 3050 lm (Cool White), 3000 lm (Daylight)
- CRI: >80
- UGR: <22
- IP Rating: IP44 front face only
- IC Rating: IC-4
- Operating Temperature Range: -10 to 40 °C
- Flex & Plug Length: 1200 mm
- Wiring: Re-wireable flex & plug (2 pin)
- Dimensions (H x L x W): 80mm x 150mm x 150mm
- Weight: 0.5 kg
Key Features
- Tri-CCT color temperature configuration (3000K, 4000K, 5700K)
- Dimmable driver with phase cut technology
- High system efficiency up to 137 lm/W
- IP44 rated front face for moisture resistance
- IC-4 rated for safe insulation contact
- Fixed adjustability with powder-coated white finish
- Long LED lifetime greater than 54,000 hours
- Beam angle of 60° for focused lighting
- Colour Rendering Index (CRI) greater than 80
- 5-step MacAdam ellipse for consistent color quality
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical safety standards and optimal performance.
Applications
- Residential lighting: living rooms, kitchens, bedrooms
- Commercial lighting: offices, retail spaces, hospitality
- Recessed ceiling installations requiring adjustable color temperature
Standards & Compliance
- AS/NZS 60598.1 – Luminaires General Requirements
- AS/NZS 60598.2.1 – Fixed General Purpose Luminaires
- AS/NZS 61347.1 – Lamp Control Gear General and Safety Requirements
- AS/NZS 61347.2.13 – Particular Requirements for D.C. or A.C. Supplied Electronic Control Gear for LED Modules
- AS CISPR 15 – Limits and Methods of Measurement of Radio Disturbance Characteristics of Electrical Lighting and Similar Equipment
Environmental Benefits
- High energy efficiency reduces electricity consumption and carbon footprint
- Long LED lifespan minimizes waste and replacement frequency
- Complies with energy savings schemes (Ipart, REES, VEU approvals)
Warranty Information
3 years return-to-base warranty for domestic use. VIP warranty offers 2 years onsite plus 3 years return-to-base (total 5 years) for registered users under specific terms.
Available Now
The Atom 24W LED Downlight with Dimmable Driver is available for immediate purchase, ideal for residential and commercial recessed lighting applications.
