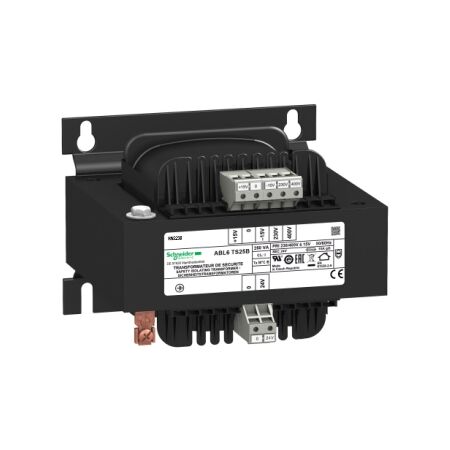

250VA Transformer TRF 230-400/24V | Reliable Voltage Conversion | DIN Rail or Panel Mount | @Pack of 1 | by Clipsal
The 250VA Transformer TRF 230-400/24V is designed for reliable voltage conversion in industrial applications. With a primary voltage range of 230-400V AC and a secondary output of 24V AC, this transformer is perfect for control panels and building automation systems. Its durable construction ensures high efficiency and low temperature rise, making it suitable for continuous operation in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 250VA Transformer TRF 230-400/24V | Reliable Voltage Conversion | DIN Rail or Panel Mount | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHABL6TS25B
Alternatively Known As: Clipsal 250VA Transformer, 24V Control Transformer, SCHABL6TS25B, Industrial Step-Down Transformer, Clipsal TRF 230-400/24V
Technical Specifications
- Input Voltage: 230-400V AC
- Output Voltage: 24V AC
- Power Rating: 250VA
- Frequency: 50/60Hz
- Mounting: DIN rail or panel mount
- Insulation Class: F
- Terminals: Screw type
- Cooling: Natural air cooled
- Dimensions (H x L x W): 140mm x 160mm x 120mm
- Weight: 4.5 kg
Key Features
- Robust 250VA transformer for reliable voltage conversion
- Primary voltage range: 230-400V AC
- Secondary voltage: 24V AC
- High efficiency and low temperature rise
- Suitable for continuous operation
- Durable construction for industrial environments
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with local wiring rules and standards.
Applications
- Industrial control panels
- Building automation systems
- Machinery requiring 24V AC supply
- Lighting control circuits
- General electrical installations needing voltage step-down
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Efficient energy conversion reduces power loss
- Long operational life minimizes replacement waste
- Supports safe and reliable operation of low-voltage equipment
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal TRF 230-400/24V 250VA Transformer (SCHABL6TS25B) is available for immediate purchase. Ideal for industrial and commercial electrical installations requiring reliable voltage step-down.
