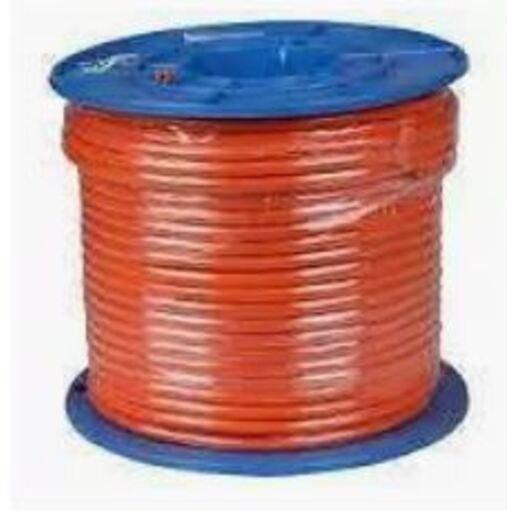

25mm X 3 Core + 2.5mm² Flex Ore Sheath Cable | Heavy-Duty & Flexible | Mining Applications | @Pack of 0.10 | by Electra Cables
The 25mm X 3 Core + 2.5mm² Flex Ore Sheath Cable is designed for mining and industrial power supply, featuring heavy-duty, flexible, ore-resistant PVC sheath for durability in harsh environments. With high current capacity and enhanced safety from the earth core, this cable is perfect for both fixed and flexible installations, ensuring reliable performance in mobile equipment and underground operations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 25mm X 3 Core + 2.5mm² Flex Ore Sheath Cable | Heavy-Duty & Flexible | Mining Applications | @Pack of 0.10 | by Electra Cables
Brand: Electra Cables
SKU: FSRC3250+E-BOR
Alternatively Known As: 25mm mining cable, 3 core flexible mining cable, FSRC3250+E-BOR, heavy duty flexible cable, ore sheath cable
Technical Specifications
- Conductor size: 3 x 25mm² copper
- Earth core: 1 x 2.5mm² copper
- Sheath: Heavy-duty, flexible, ore-resistant PVC
- Voltage rating: 0.6/1kV
- Temperature rating: -25°C to +90°C
- Complies with AS/NZS 3191 for flexible cords
- Flame retardant and oil resistant
- Dimensions (H x L x W): 38mm x 1000mm x 38mm
- Weight: 8.5 kg
Key Features
- 25mm² 3 core flexible copper conductors for high current capacity
- 2.5mm² earth core for enhanced safety
- Heavy-duty flexible ore-resistant sheath for durability in harsh environments
- Suitable for both fixed and flexible installations
- Designed for mining and industrial applications
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with AS/NZS 3000 wiring rules and site safety requirements.
Applications
- Mining and industrial power supply
- Heavy-duty flexible connections
- Mobile equipment and machinery
- Underground and surface mining operations
Standards & Compliance
- Complies with AS/NZS 3191 – Electric flexible cords
Environmental Benefits
- Durable construction extends cable lifespan, reducing replacement frequency and waste
- Lead-free sheath and insulation materials minimize environmental impact
Warranty Information
12 months warranty against manufacturing defects.
Available Now
The Electra Cables 25mm² 3 Core + 2.5mm² Flexible Ore Sheath Cable (FSRC3250+E-BOR) is available for immediate purchase. Ideal for mining, industrial, and heavy-duty power supply applications.
