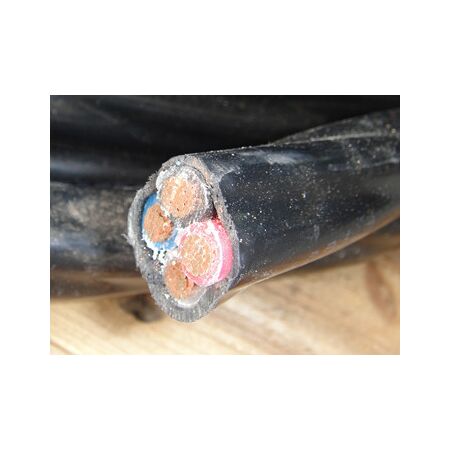

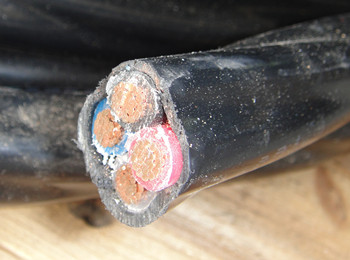

25mm 4 Core Black XLPE Cable | 600/1000V Rating | UV Resistant Sheath | by Electra Cables
The 25mm 4 Core Black XLPE Cable is designed for reliable power distribution in commercial and industrial settings. With a 600/1000V voltage rating and UV resistant sheath, it ensures durability and safety for underground and above-ground installations. Ideal for licensed electricians, this cable features low smoke, halogen-free insulation for enhanced safety and compliance with AS/NZS standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 25mm 4 Core Black XLPE Cable | 600/1000V Rating | UV Resistant Sheath | by Electra Cables
Brand: Electra Cables
SKU: XLPE4250-100BLK
Alternatively Known As: 25mm 4C XLPE Cable, 25mm 4 Core Power Cable, 25mm 4 Core Mains Cable, 25mm 4 Core Electrical Cable, 25mm 4 Core Underground Cable
Technical Specifications
- Conductor: Stranded copper
- Insulation: XLPE (Cross-Linked Polyethylene)
- Sheath: UV resistant black PVC
- Voltage Rating: 600/1000V
- Core Count: 4
- Cross Sectional Area: 25mm²
- Operating Temperature: -25°C to +90°C
- Compliance: AS/NZS 5000.1
- Low smoke, halogen free
- Dimensions (H x L x W): 32mm x 1000mm x 32mm
- Weight: 3.2 kg
Key Features
- 25mm² cross-sectional area for high current capacity
- 4 core configuration for three-phase and neutral applications
- XLPE (Cross-Linked Polyethylene) insulation for superior thermal and electrical properties
- 600/1000V voltage rating for medium voltage applications
- UV resistant black sheath for outdoor durability
- Low smoke, halogen free for enhanced safety
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with AS/NZS 3000 and local regulations.
Applications
- Power distribution in commercial and industrial installations
- Underground and above ground installations
- Suitable for use in cable trays, ducts, and direct burial
- Ideal for mains and submains power supply
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 5000.1 – Electric cables – Polymeric insulated
Environmental Benefits
- Low smoke, halogen free design reduces toxic emissions in case of fire
- UV resistant sheath extends cable lifespan and reduces replacement frequency
- Durable construction minimizes waste and maintenance
Warranty Information
12 months manufacturer's warranty against defects in materials and workmanship.
Available Now
The Electra Cables 25mm 4 Core Black XLPE 600V/1000V Cable is available for immediate purchase. Ideal for commercial and industrial power distribution applications.
